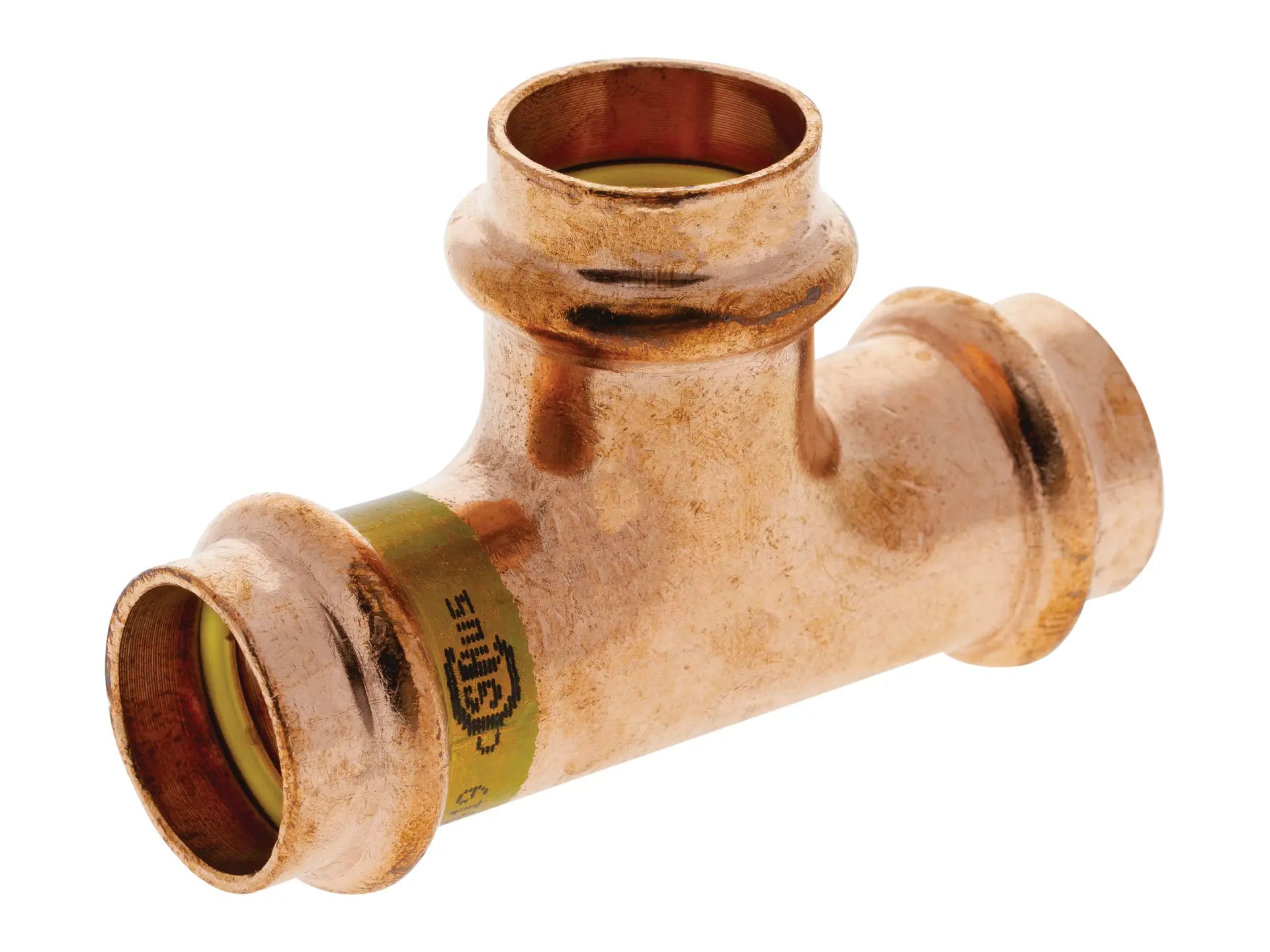

Nibco 9101405HPC Press Tees, 1-1/2 inchesx1-1/2 inchesx3/4

Product Description

The NIBCO 9101405HPC press tees are designed for natural gas, non-potable water, and propane applications. These copper tees feature press-fit connections on all sides, suitable for connecting copper tubes. They provide a secure and permanent connection, ensuring a leak-tight seal with a compatible copper tube size.

• Application Natural Gas
• Non-Potable Water
• Propane

Product Highlights

These copper press tees are ideal for creating branch connections in piping systems.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9101405HPC
• Country of Origin: US

Technical Specifications

• Item: Press Tees
• Application: Natural Gas, Non-Potable Water, Propane
• For Tube OD: 1 1/2 in x 1 1/2 in x 3/4 in
• Fitting Shape: Tee
• Overall Length: 4 1/8 in
• Connection Type: Press-Fit x Press-Fit x Press-Fit
• O-Ring Material: HNBR
• Copper Tube Size: 1 1/2 in x 1 1/2 in x 3/4 in
• Fitting Material: Copper
• End Connection Type: Press
• Specific Fitting Shape: Tee
• Compatible Tube Material: Copper
• Maximum Operating Pressure: 200 psi
• Compatible Copper Tube Type: Type G, Type K, Type L
• Maximum Operating Temperature: 180 Degrees F
• Minimum Operating Temperature: -40 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side C Connection Type: Press-Fit
• Fitting Side A Copper Tube Size: 1 1/2 in
• Fitting Side B Copper Tube Size: 1 1/2 in
• Fitting Side C Copper Tube Size: 3/4 in
• Fitting Side A Tube Outer Diameter: 1 1/2 in
• Fitting Side B Tube Outer Diameter: 1 1/2 in
• Fitting Side C Tube Outer Diameter: 3/4 in
• Type: Tee
• Nominal Pipe Size: 1-1/2" x 1-1/2" x 3/4"
• Material: Wrot Copper
• Weight: 0.740 lb
• Includes Center Stop: No Center Stop
• Material Grade: C12200 Copper
• Fitting Side A Pipe Size (Nominal): 1-1/2 in
• Temperature Range: -40 {
