Nibco 9101150FPC Press 1-1/2 inches Tee PxpXP Pc611

Product Description

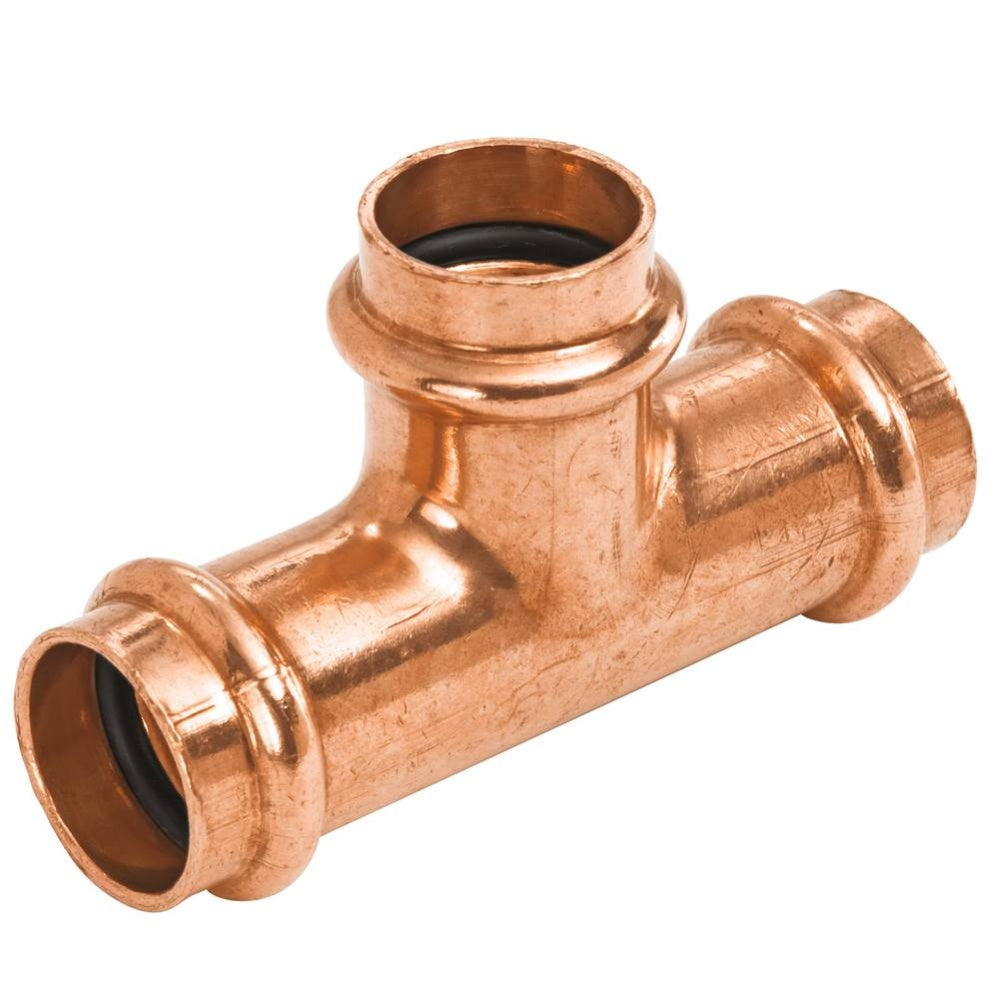

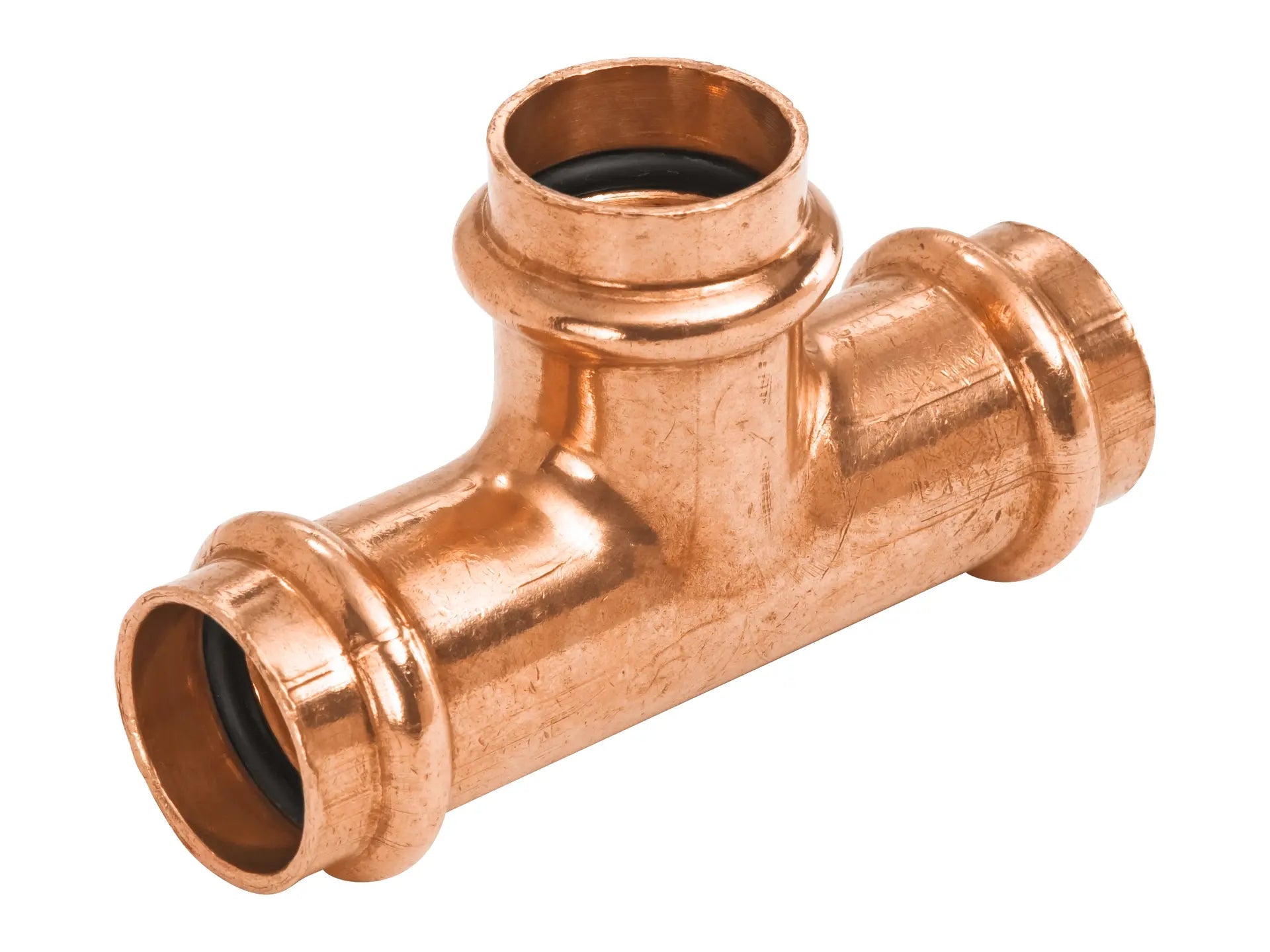

The NIBCO 9101150FPC Press 1-1/2" Tee PXPXP PC611 is designed for connecting copper tubing systems in plumbing and HVAC applications. This wrot copper tee features an inboard bead and EPDM O-ring, ensuring a clean, watertight seal. It provides a quick and easy installation without needing flame, solder, or flux.

• Features press connections for fast and easy installation
• Constructed from wrot copper for durability
• EPDM O-ring ensures a watertight seal

Product Highlights

The NIBCO Press System tee provides a reliable, flame-free connection for copper piping systems, suitable for residential and commercial use.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9101150FPC
• Country of Origin: USA

Technical Specifications

• Dezincification resistant: Dezincification resistant
• Lead-free: Lead-free
• Operating pressure: 200 psi cwp
• Temperature range: -20 degree F to 250 degree F
• ASTM B75 Alloy: C12200 Copper
• Complies with: ASME B16/51 Performance
• Third party certified to: UPC
• Third party certified to the performance requirements of: CSA MSE 13 and PS-117
• IAPMO Recognized to: 300 PSI per ASTM F3226
• Height: 2.11"
• Length: 4.85"
• Material: Copper
• Width: 3.6"
• ANSI: ANSI 372, ANSI 61
• ASME: ASME B16.51
• ASTM: ASTM B-75 Alloy C12200
• CSA Certified: CSA MSE 13, CSA PS 117
• Collection: Press System®
• End Connection 1: Press
• End Connection 2: Press
• End Connection 3: Press
• End Connections: Press
• Fitting Size 1: 1-1/2 in
• Fitting Size 2: 1-1/2 in
• Fitting Size 3: 1-1/2 in
• Fitting Sizes: 1-1/2 in
• Fitting Type: Tee
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material Type: EPDM
• Maximum Temperature: 250
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Manufacturer: NIBCO
• Part Number: 9101150FPC
• Model: PC611
• Type of Fitting: Tee
• Type of Tee: Straight Size
• Nominal Pipe Size: 1-1/2" x 1-1/2" x 1-1/2"
• UPC Code: 039923307637
• Country of Origin: US
• Potable Water Code: LL Compliant NSF/ANSI 372
