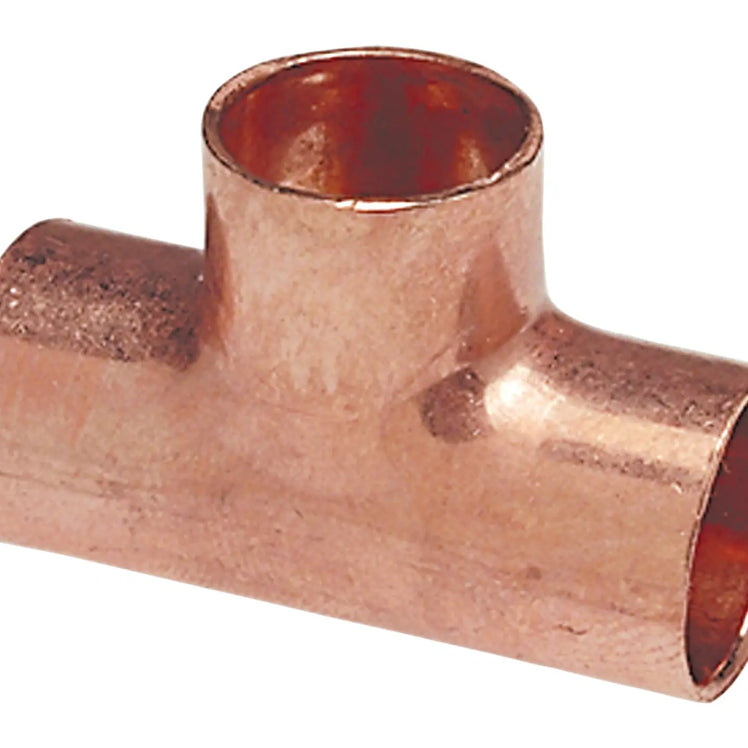

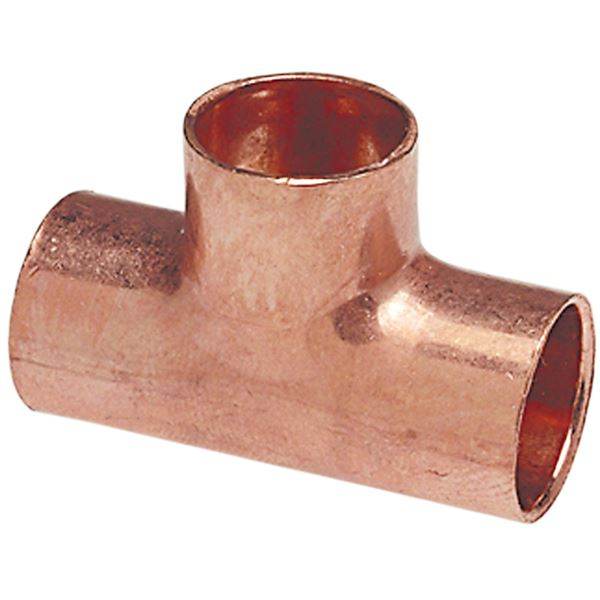

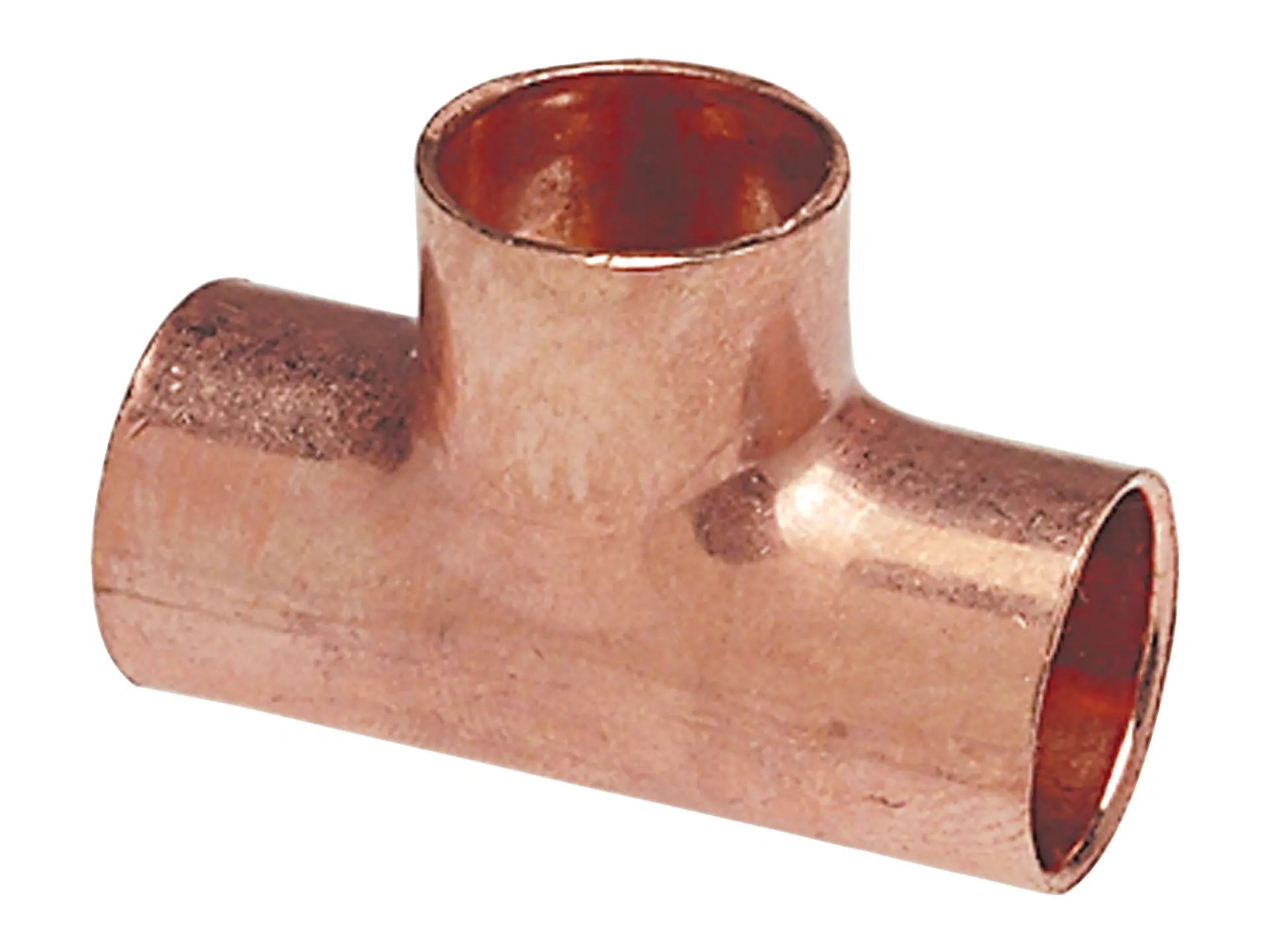

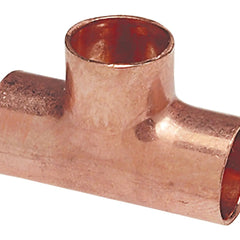

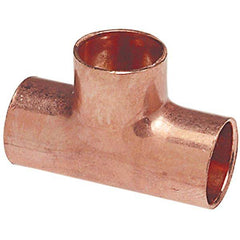

Nibco 9100350CB Copper Reducing Tee (1-1/4 in x 1-1/4 in x 3/8 in) 611R-CB

Product Description

Nibco 9100350CB is a copper reducing tee (611R-CB) with cup x cup x cup connections sized 1-1/4 in x 1-1/4 in x 3/8 in. The fitting includes solder cups for solder pressure joining and enables a continuous pipeline run with a branch outlet. It is cleaned and bagged for oxygen/medical gas service and is used in potable water, air conditioning and refrigeration plumbing systems.

• Copper wrot (cast) construction with solder cups for solder pressure connections; conforms to ASTM B75 Alloy C12200
• Reducing outlet tee, connection type C x C x C (cup x cup x cup), nominal size 1-1/4 in x 1-1/4 in x 3/8 in
• Cleaned and bagged for oxygen/medical gas service; third-party certified to NSF/ANSI 61 and 372; manufactured per ASME B16.22 and MSS standards

Product Highlights

Copper reducing tee, 1-1/4 in x 1-1/4 in x 3/8 in C x C x C, solder pressure 611, cleaned and bagged for oxygen/medical gas, NSF/ANSI certified

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9100350CB
• Country of Origin: US

Technical Specifications

• Brand: Nibco
• Manufacturer Part Number: 9100350CB
• Part Number: 655482
• Model: 611R-CB
• Cross Reference: 611
• Product Type: Tee
• Tee Type: Reducing outlet
• Connection Type: C x C x C (cup x cup x cup)
• Nominal Pipe Size: 1-1/4 in x 1-1/4 in x 3/8 in
• Material: Copper (wrot/cast)
• Alloy: ASTM B75 Alloy C12200
• Pressure Type: Solder Pressure 611
• Connection Method: Solder cups
• Special Application: Cleaned and bagged for oxygen service (medical gas)
• Certifications and Standards: NSF/ANSI 61; NSF/ANSI 372; ASME B16.22; MSS SP-104; MSS SP-109; NFPA 99; UL 207 (recognized to 700 PSI for select diameters)
• Dimensions (L x W x H): 2.88 in x 2.02 in x 1.47 in
• Country of Origin: US
• UPC Code: 039923304667
• Unit of Measure: Each
