Nibco 9100205HPC Press Tees 1-1/4 inchesx1-1/4 inchesx1

Product Description

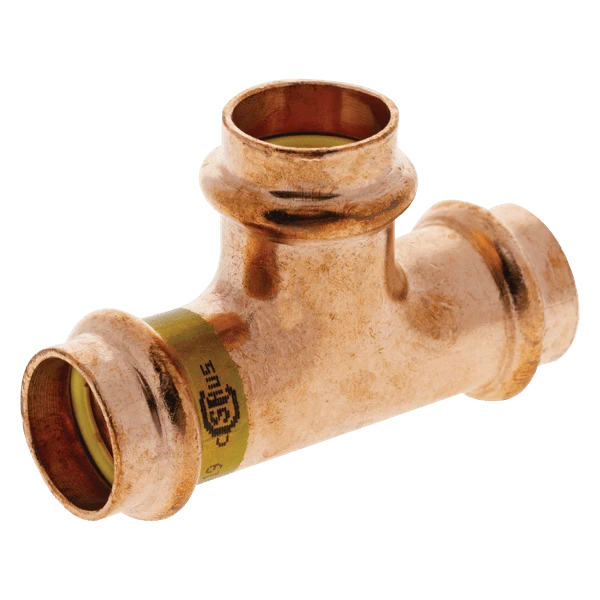

The NIBCO 9100205HPC press tees are designed for natural gas, non-potable water, and propane applications. These tees feature press-fit connections on all sides, with side A and B at 1 1/4" and side C at 1". Constructed from copper with HNBR O-rings, they ensure a secure and reliable connection. Suitable for use with Type G, K, and L copper tubing.

• Application Natural Gas, Non-Potable Water, Propane
• Fitting Side A, B, C Connection Type Press-Fit
• Fitting Material Copper, O-Ring Material HNBR

Product Highlights

Durable copper construction with press-fit connections for natural gas, non-potable water, and propane applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9100205HPC
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Press Tees
• Application [Specifications]: Natural Gas, Non-Potable Water, Propane
• For Tube OD [Specifications]: 1 1/4 in x 1 1/4 in x 1 in
• Fitting Shape: Tee
• Overall Length [Specifications]: 3 27/32 in
• Stop and Shape [Specifications]: Tee
• Connection Type: Press-Fit x Press-Fit x Press-Fit
• O-Ring Material: HNBR
• Copper Tube Size [Specifications]: 1 1/4 in x 1 1/4 in x 1 in
• Fitting Material: Copper
• End Connection Type [Specifications]: Press
• Specific Fitting Shape: Tee
• Compatible Tube Material: Copper
• Fitting Copper Tube Size [Specifications]: 1 1/4 in, 1 in
• Maximum Operating Pressure: 200 psi
• Compatible Copper Tube Type: Type G, Type K, Type L
• Maximum Operating Temperature: 180 Degrees F
• Minimum Operating Temperature: -40 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side C Connection Type: Press-Fit
• Fitting Side A Copper Tube Size: 1 1/4 in
• Fitting Side B Copper Tube Size: 1 1/4 in
• Fitting Side C Copper Tube Size: 1 in
• Fitting Side A Tube Outer Diameter: 1 1/4 in
• Fitting Side B Tube Outer Diameter: 1 1/4 in
• Fitting Side C Tube Outer Diameter: 1 in
• Material: C12200 Copper
• Fitting Side A Pipe Size (Nominal): 1-1/4 in
• Fitting Side B Copper Tube Size (Nominal): 1-1/4 in
• Fitting Side C Copper Tube Size (Nominal): 1 in
• Temperature Range: -40 00b0F to 180 00b0F
• For Media Type: Gases; Non-Potable Water
• Standards: ANSI LC4/CSA 6.32; IAPMO/UPC LC-4; ICC-ES PMG 1502; IFGC; NFPA 30; NFPA 30A; NFPA 31; NFPA 54/Z223.1; NFPA 58; UPC Chapter 12
• Brand: NIBCO
• MPN: 9100205HPC
