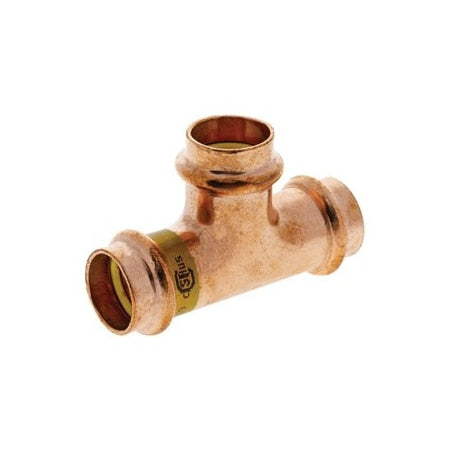

Nibco 9099555HPC Press System® Tee 1 x 1/2 in. Copper Press

Product Description

The NIBCO 9099555HPC Press System® Tee is a 1 x 1/2 in. copper press fitting designed for joining copper tubing systems. Suitable for natural gas, non-potable water, and propane applications. The press fittings can also be installed underground and feature a unique "N" witness mark when properly crimped.

• Application Natural Gas
• Application Non-Potable Water
• Application Propane

Product Highlights

The NIBCO Press Tee features press-fit connection, copper construction, and HNBR O-ring material, ensuring a secure and reliable connection for various applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9099555HPC
• Country of Origin: United States

Technical Specifications

• Item: Press Tees
• Application: Natural Gas, Non-Potable Water, Propane
• For Tube OD: 1 in x 1 in x 1/2 in
• Fitting Shape: Tee
• Overall Length: 3 1/16 in
• Connection Type: Press-Fit x Press-Fit x Press-Fit
• O-Ring Material: HNBR
• Copper Tube Size: 1 in x 1 in x 1/2 in
• Fitting Material: Copper
• End Connection Type: Press
• Specific Fitting Shape: Tee
• Compatible Tube Material: Copper
• Maximum Operating Pressure: 200 psi
• Compatible Copper Tube Type: Type G, Type K, Type L
• Maximum Operating Temperature: 180 Degrees F
• Minimum Operating Temperature: -40 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side C Connection Type: Press-Fit
• Fitting Side A Copper Tube Size: 1 in
• Fitting Side B Copper Tube Size: 1 in
• Fitting Side C Copper Tube Size: 1/2 in
• Fitting Side A Tube Outer Diameter: 1 in
• Fitting Side B Tube Outer Diameter: 1 in
• Fitting Side C Tube Outer Diameter: 1/2 in
• Country of Origin: United States
• UPC Code: 039923415554
• Material: Wrot Copper
• Weight: 0.324 lb
• Brand: NIBCO
• Includes Center Stop: No Center Stop
• Fitting Side A Pipe Size (Nominal): 1 in
• Temperature Range: -40 °F to 180 °F
• For Media Type: Gases; Non-Potable Water
• standard: ANSI LC4/CSA 6.32, IAPMO/UPC LC-4, ICC-ES PMG 1502, IFGC, NFPA 30, NFPA 30A, NFPA 31, NFPA 54/Z223.1, NFPA 58, UPC CHAPTER 12 FUEL PIPING
• ANSI: ANSI LC 4
• ASTM: ASTM B-75 Alloy C12200
• CSA Certified: CSA 6.32
• Clean Bagged: No
• End Connection 1: Press
• End Connection 2: Press
• End Connection 3: Press
• End Connections: Press
• FM Approved: No
• Fitting Size 1: 1
• Fitting Size 2: 1
• Fitting Size 3: 1/2
• Fitting Sizes: 1 in x 1 in x 1/2 in
• Fitting Type: Tee
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material Type: C12200
• NSF Certified: No
• UL Listed: No
