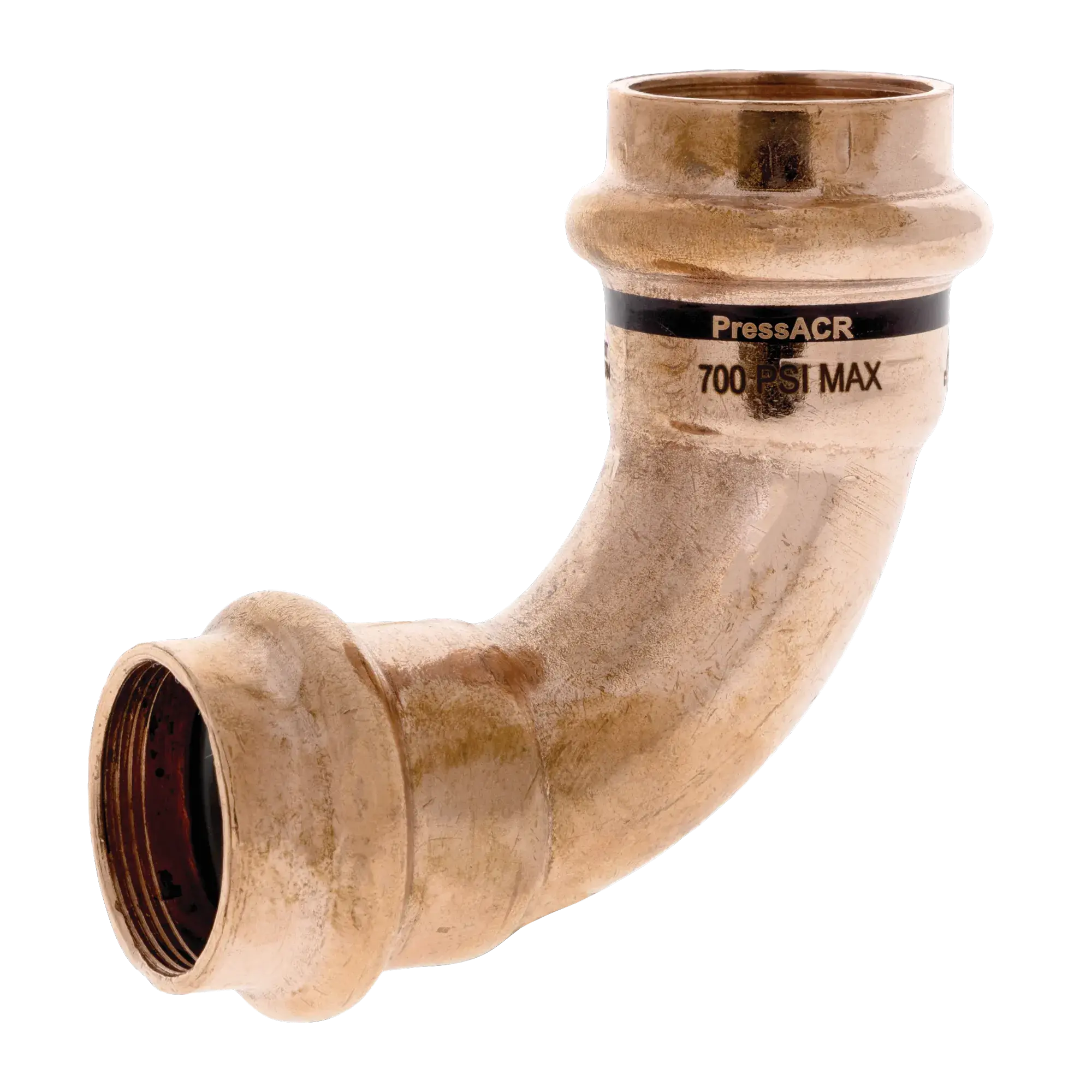

Nibco 907785rpc 90 deg Elbow 5/8 In

Product Description

The NIBCO 907785RPC PressACR fittings are designed for joining copper tubing systems in air conditioning and refrigeration applications. These press fittings can be installed underground and provide a user-friendly, quick, and easy installation. When properly crimped, a unique "N" witness mark is clearly visible.

• Features an inboard bead and gray HNBR O-ring
• Pressure from a pressing tool tightens the O-ring onto the tube
• Ensures a clean, robust seal in seconds with no flame, solder or flux

Product Highlights

The NIBCO 907785RPC fitting provides a method of changing the pipeline direction by 90 degrees and is used when a longer sweep is required.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 907785RPC
• Country of Origin: Poland

Technical Specifications

• Connection Size 1: 5/8 In
• Connection Size 2: 5/8 In
• Connection Type 1: Press
• Connection Type 2: Press
• Connection Type: Press
• Fitting Type: 90 deg Elbow
• Material Construction: Copper
• Material: Copper
• Operating pressure: 700 psi max
• Temperature range: -40 degrees F to 250 degrees F
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600 and R600a
• Approved Oils: POE, PAG, MO, PAO, PVE and AB
• UL 207 Recognized: to 700 PSI
• Complies with: ISO 5149-2, ISO I4903 Helium leak test, ISO 14903 Thermal cycle test, ISO 14903 Fatigue test, ISO 14903 Freeze test, UL 109 vibration
• Nominal Pipe Size: 5/8
• eClass Classification: Press Elbows
