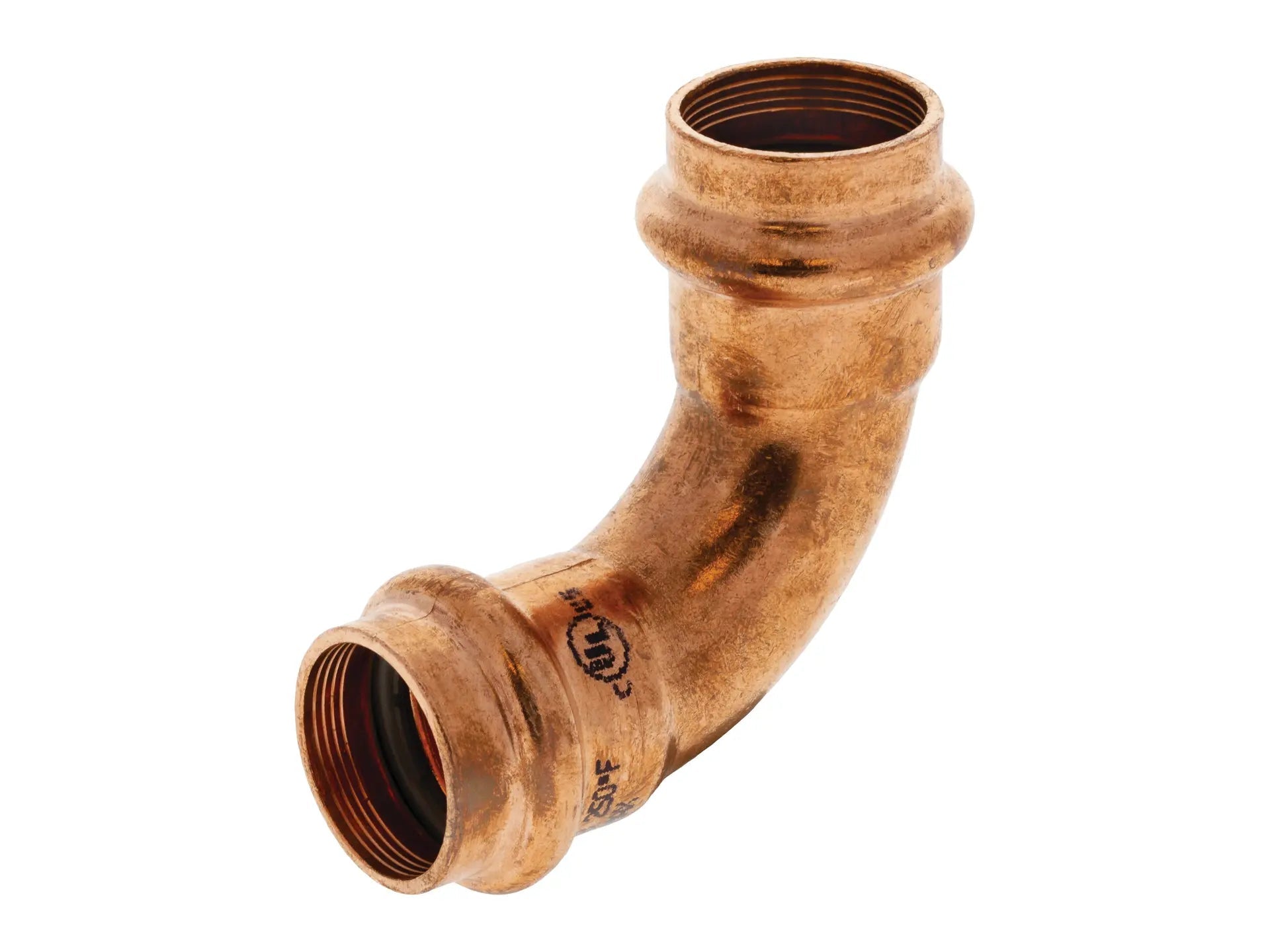

Nibco 907775rpc 1/2 in. O.D. x 1/2 in. O.D. Pressacr Copper 90° Fitting Elbow Pc9607-Lt

Product Description

The NIBCO 907775RPC PressACR copper 90° elbow features an inboard bead and gray HNBR O-ring. Applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal. This fitting provides a method of changing the pipeline direction by 90°. NIBCO PressACR fittings are the fastest, easiest way to join copper tubing systems.

• Operating pressure 700 psi max
• Temperature range -40°F to 250°F
• Vacuum: 500mi

Product Highlights

The elbow has press connections and is used when a longer sweep is required. NIBCO PressACR fittings are designed to join with seamless copper water tube in air conditioning and refrigeration applications systems.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 907775RPC
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: 907775RPC
• Model: PC9607-LT
• Type of Fitting: Elbow
• Nominal Pipe Size: 1/2"
• Fitting Bend Angle: 90° (1/4 Bend)
• Material: Copper
• UPC Code: 039923418074
• Length: 1.88"
• Width: 1.5"
• Height: 0.75"
• Country of Origin: US
• Potable Water Code: LL Compliant NSF/ANSI 372
• Operating pressure: 700 psi max
• Temperature range: -40 DegF to 250 DegF
• Vacuum: 500mi
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600 and R600a
• Approved Oils: POE, PAG, MO, PAO, PVE and AB
• UL 207 Recognized: to 700 PSI
• Complies with: ISO 5149-2, ISO I4903 Helium leak test, ISO 14903 Thermal cycle test, ISO 14903 Fatigue test, ISO 14903 Freeze test, UL 109 vibration
• Connection Type: Press
• eClass Classification: Press Elbows
• Connection Size 1: 1/2 In
• Connection Size 2: 1/2 In
• Connection Type 1: Press
• Connection Type 2: Press
• Fitting Type: 90 deg Elbow
• Material Construction: Copper
