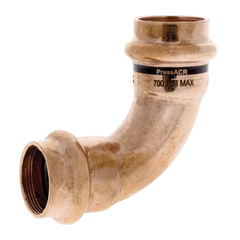

Nibco 907765rpc pc9607-lt 3/8 od press 90 elbow 3/8 in. o.d. x 3/8 in. o.d. 90 degree

Product Description

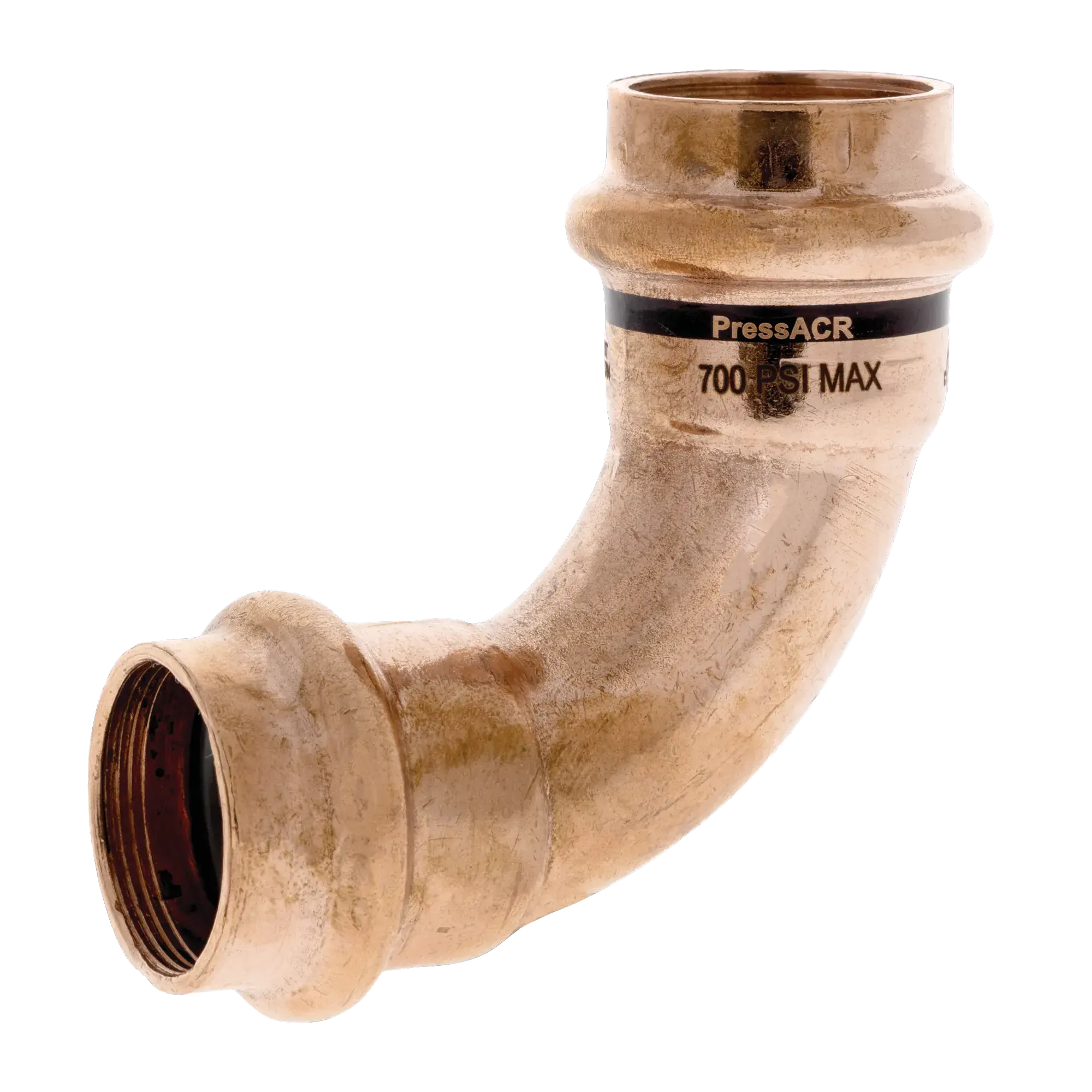

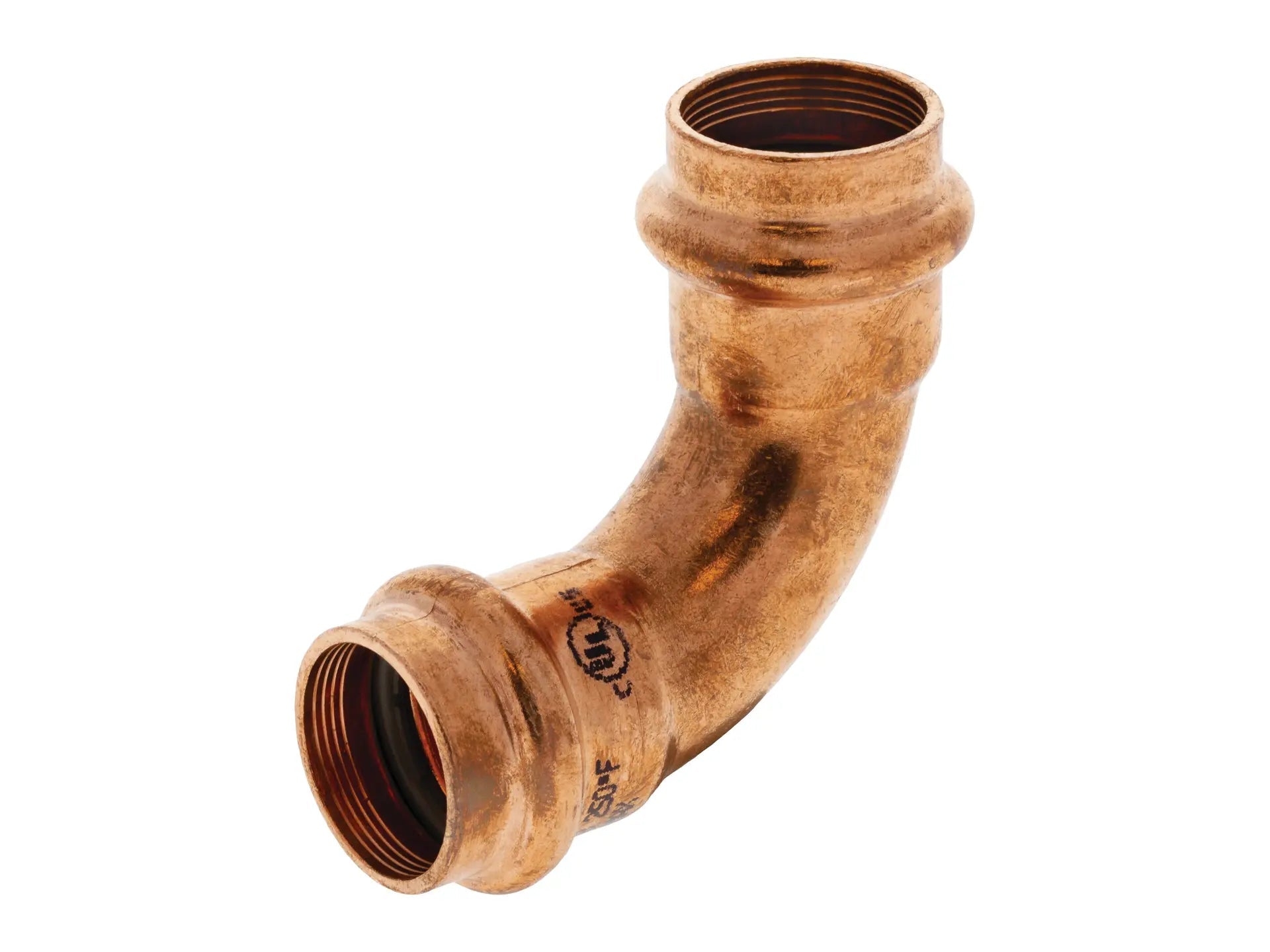

The NIBCO 907765RPC PressACR copper 90-degree elbow features an inboard bead and gray HNBR O-ring, ensuring a clean, robust seal in seconds without flame, solder, or flux. This fitting provides a method of changing pipeline direction by 90 degrees, suitable for applications requiring a longer sweep. It operates up to 700 psi max and a temperature range of -40°F to 250°F.

• Features an inboard bead and gray HNBR O-ring
• Ensures a clean, robust seal in seconds with no flame, solder or flux
• Has press connections

Product Highlights

NIBCO 907765RPC PressACR copper 90-degree elbow for robust, flame-free sealing in pipeline direction changes.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 907765RPC
• Country of Origin: US

Technical Specifications

• Model: PC9607-LT
• Size: 3/8 in. O.D. x 3/8 in. O.D.
• Operating Pressure: 700 psi max
• Temperature Range: -40°F to 250°F
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
• Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
• UL Recognition: UL 207 Recognized to 700 PSI
• Compliance: ISO 5149-2, ISO I4903 Helium leak test, ISO 14903 Thermal cycle test, ISO 14903 Fatigue test, ISO 14903 Freeze test, UL 109 vibration
• Fitting Type: Elbow
• Fitting Bend Angle: 90°
• Material: Copper
• Potable Water Code: LL Compliant NSF/ANSI 372
