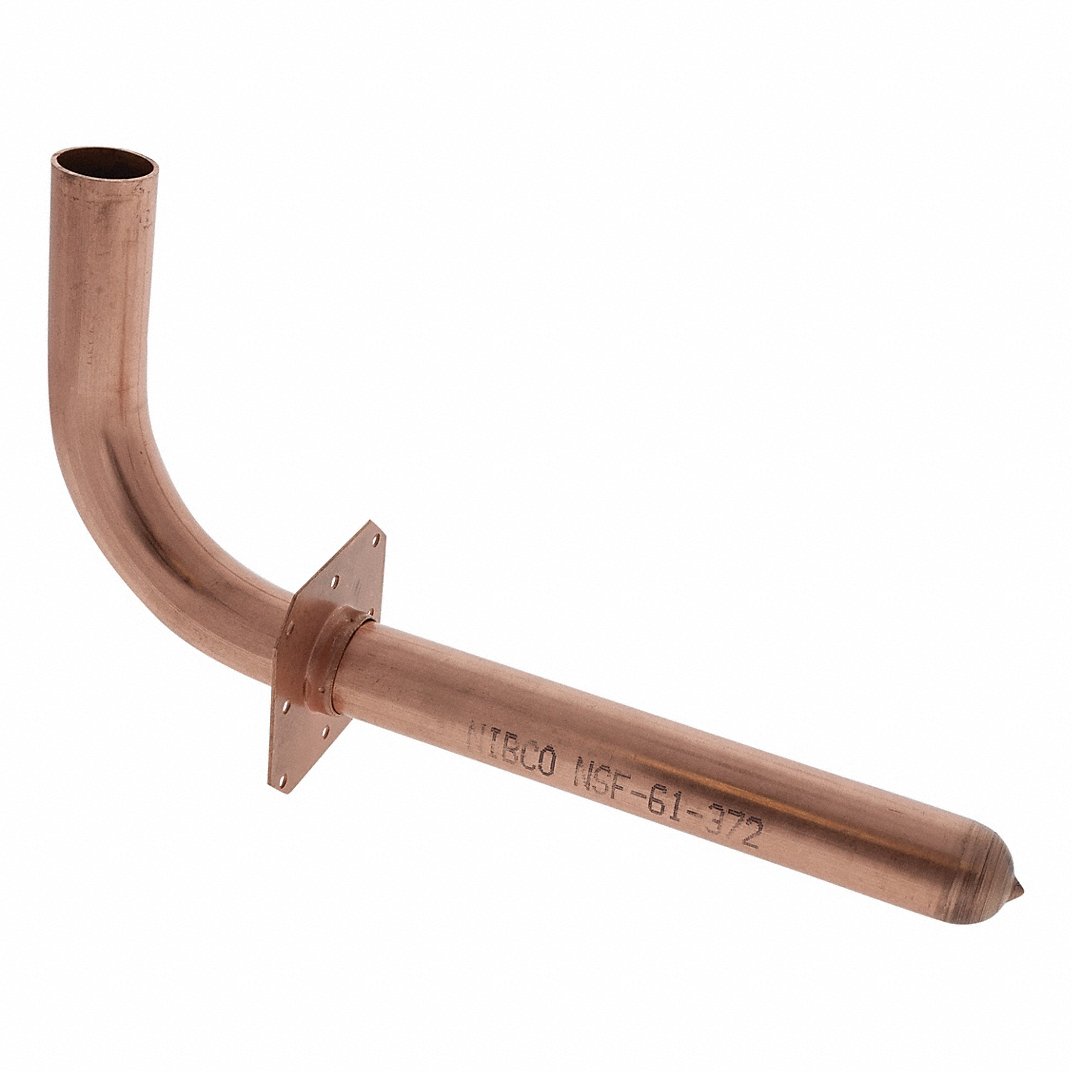

Nibco 9068300pc Press Stub-out Elbow Fitting 3/4 Inch Cts Ftg X Ftg Copper Epdm O-ring

Product Description

The NIBCO 9068300pc is a copper press stub-out elbow fitting designed for professional plumbing installations. It is part of the NIBCO Press System, a trusted line of press-connect fittings used widely in residential and commercial plumbing. This fitting measures 3/4 inch in copper tube size (CTS) and features FTG (fitting-to-fitting) connections on both sides, making it compatible with Type K, Type L, and Type M copper tubing. The stub-out elbow shape allows plumbers to transition from in-wall or in-floor rough-in piping to exposed supply stops, such as those for sinks, toilets, and appliances. Instead of soldering, the press system uses a mechanical crimping tool to compress the fitting onto the tubing. The built-in EPDM O-ring creates a watertight, leak-free seal without open flame, flux, or solder. This makes the fitting faster and safer to install, especially in tight spaces or near combustible materials. The body is made from C12200 copper, a high-purity phosphorus-deoxidized copper alloy that resists corrosion and performs reliably in potable water systems. The EPDM O-ring material is rated for a temperature range of -20 degrees Fahrenheit to 250 degrees Fahrenheit and a maximum operating pressure of 200 psi. This fitting meets ASME B16/51 and ASTM B75 standards and is approved for use with potable water. It is manufactured in the USA. HVAC and plumbing professionals rely on press fittings like this to reduce labor time on jobsites without sacrificing joint integrity. This stub-out is a go-to component for rough-in plumbing where a clean wall or floor termination point is needed for fixtures and valves.

• Press-connect design eliminates the need for soldering, flux, or open flame during installation
• EPDM O-ring provides a secure, leak-free seal rated for up to 200 psi and temperatures from -20 to 250 degrees Fahrenheit
• Compatible with Type K, Type L, and Type M copper tubing for versatile rough-in plumbing applications

Product Highlights

The NIBCO 9068300pc stub-out elbow fitting delivers a fast, code-compliant press connection for potable water plumbing systems. Its C12200 copper body and EPDM O-ring meet ASME and ASTM standards for long-term reliability in professional installations.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9068300pc

Technical Specifications

• Series: Press System
• Fitting Shape: Stub-out
• Material: C12200 Copper
• O-Ring Material: EPDM
• Fitting Side A Connection Type: FTG
• Fitting Side A Copper Tube Size (Nominal): 3/4 inch
• Fitting Side B Connection Type: FTG
• Maximum Operating Pressure: 200 psi
• Temperature Range: -20 F to 250 F
• For Media Type: Potable Water
• Compatible Copper Tube Type: Type K, Type L, Type M
• Standards: ASME B16/51, ASTM B75
• Country of Origin: USA
