Nibco 9059255FPC PC607-2 Ftg x Press 90 Elbow (1-1/4)

NIBCO
Brand: NIBCO
SKU: 9059255FPC
Availability: In Stock

Ships same day if ordered by 12 pm
$38.83
$38.83
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

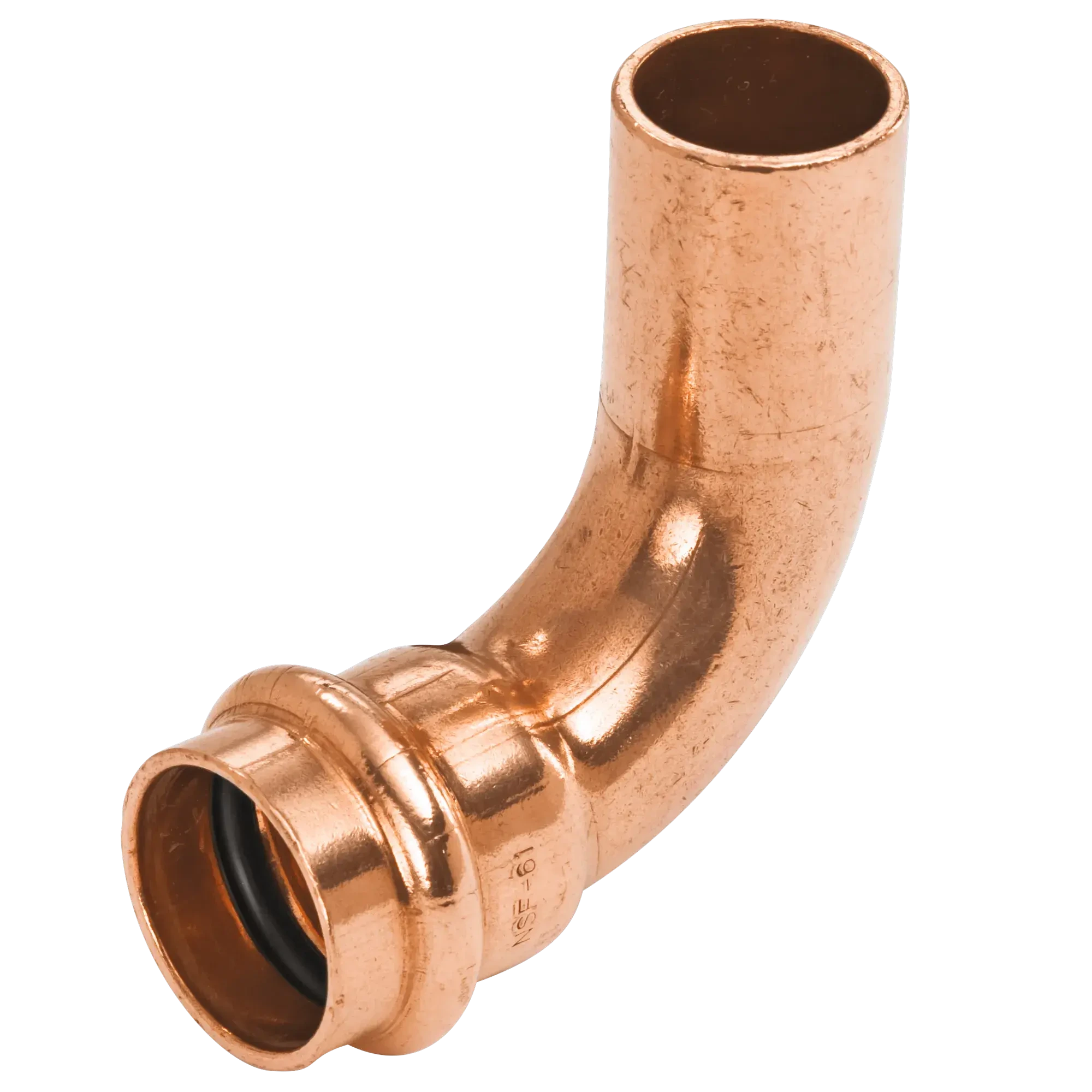

The NIBCO 9059255FPC is a PC607-2 press system 90-degree street elbow with a fitting x press connection for 1-1/4 inch piping. The copper fitting uses an inboard bead and EPDM O-ring to form a watertight press seal without solder, and is suitable for potable, hot, chilled and process water in plumbing and HVAC systems. Rated to 200 psi CWP and -20 to 250 deg F, it is dezincification resistant and lead-free.

  • Construction: copper (CU) with inboard bead and EPDM O-ring; compatible with Press System pressing tools
  • Ratings: 200 psi cold working pressure (select configs to 300 psi) and temperature range -20 to 250 deg F
  • Connection: fitting x press end for flame-free press installation; 90-degree street elbow for directional change

Product Highlights

PC607-2 1-1/4 fitting x press 90° elbow; EPDM O-ring press seal; 200 psi rating; -20 to 250°F; lead-free and dezincification resistant

Product Information

Standard Information

  • Brand: NIBCO
  • Manufacturer Part Number: 9059255FPC
  • Country of Origin: US
Technical Specifications
Brand
NIBCO
Manufacturer Part Number
9059255FPC
Model
PC607-2
Product Name
PC607-2 1-1/4 ftg x press 90 elbow
Type
90 degree street elbow
Connection Type
Fitting x Press (FTG x Press)
End Connection
Fitting x Press
Angle
90 degree
Nominal Pipe Size
1-1/4 in
Material
Copper (CU) / Wrot Copper
Alloy / Standard
ASTM B75 Alloy C12200 (DZR) noted in product sources
O-ring Material
EPDM
Operating Pressure
200 psi cwp (select configurations to 300 psi cwp)
Pressure Rating
200 PSI CWP
Temperature Range
-20 to 250 deg F
Lead Free
Yes
Dezincification Resistant
Yes
Suitable Applications
Potable, hot, chilled and process water plumbing and HVAC systems
Installation
Press connection enables flame-free installation; can be soldered on fitting end
Can be installed underground
Yes
Weight
0.490 lb
Certifications / Standards
Complies with industry standards; third-party certified to UPC; CSA MSE 13 and PS-117; IAPMO recognized to 300 psi per ASTM F3226; NSF/ANSI/CAN-61 noted in vendor data
