Nibco 9056150FPC PC607-1-1/2 PXP 90D Elbow

Product Description

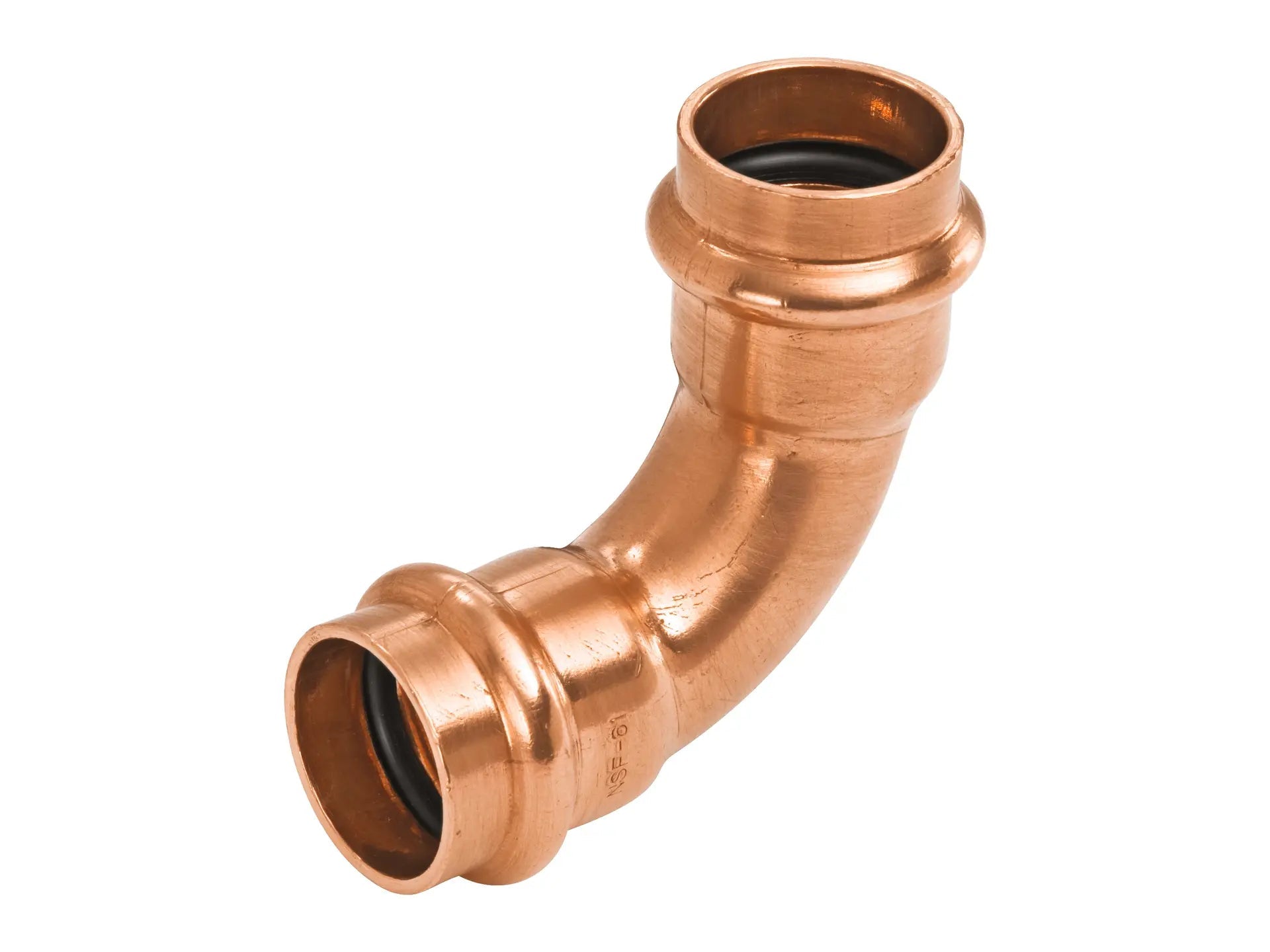

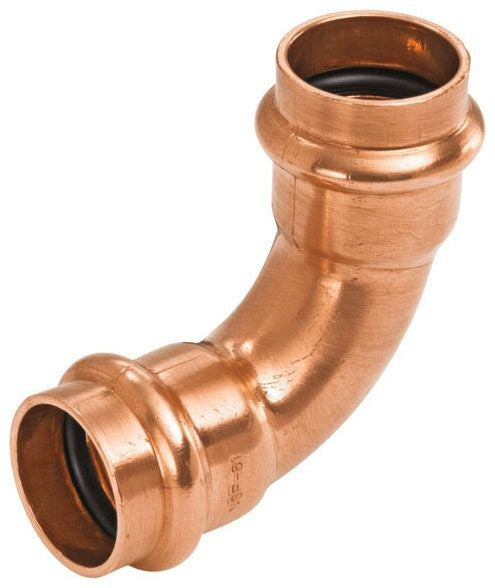

The NIBCO 9056150FPC PC607-1-1/2 PXP 90D Elbow features an inboard bead and EPDM O-ring. Applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal. This elbow provides a method of changing the pipeline direction by 90 degrees. It is suitable for residential and commercial potable, hot, chilled and process water applications for plumbing and HVAC systems.

• Operating pressure 200 psi cwp
• Temperature range -20°F to 250°F
• Lead-free

Product Highlights

The NIBCO 90° elbow fitting provides a method of changing the pipeline direction by 90 degrees. It is the fastest, easiest way to join copper tubing systems.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9056150FPC
• Country of Origin: United States

Technical Specifications

• Brand: Nibco
• Model: 9056150FPC
• Condition: New
• Country of Origin: United States
• Category: Business & Industrial > Electrical Equipment & Supplies > Switches > Rocker Switches
• Fitting Material: Copper
• Material Grade: C12200
• O-Ring Material: EPDM
• Standards: ASME B16/51, ASTM B75, CSA MSE 13, IAMPO PS-117, IAPMO ASTM F3226
• Compatible Copper Tube Type: Type K, Type L, Type M
• Compatible Tube Material: Copper
• Part Number: 9056150FPC
• Model Number: PC607
• Type of Fitting: Elbow
• Type of Elbow: Straight Size
• Nominal Pipe Size: 1-1/2" x 1-1/2"
• Fitting Bend Angle: 90° (1/4 Bend)
• Material: Copper
• UPC Code: 039923307972
• Length: 4.69"
• Width: 4.69"
• Height: 2.11"
• Potable Water Code: LL Compliant NSF/ANSI 372
• CPS SKU: 39625
• Master UPC (14): 03992345130
• VEN Product No: 9056150PC
• Vendor UPC (12): 039923451309
• Vendor Description: PC607 1-1/2 PRESS X PRESS 90 ELBOW
• VENDOR Product No: 9056150PC
• Vendor Short Name: 039923
• Temperature Rating: -20 to 250 DEG F
• Pressure Rating: 200 PSI CWP
• End Connection: PRESS X PRESS
