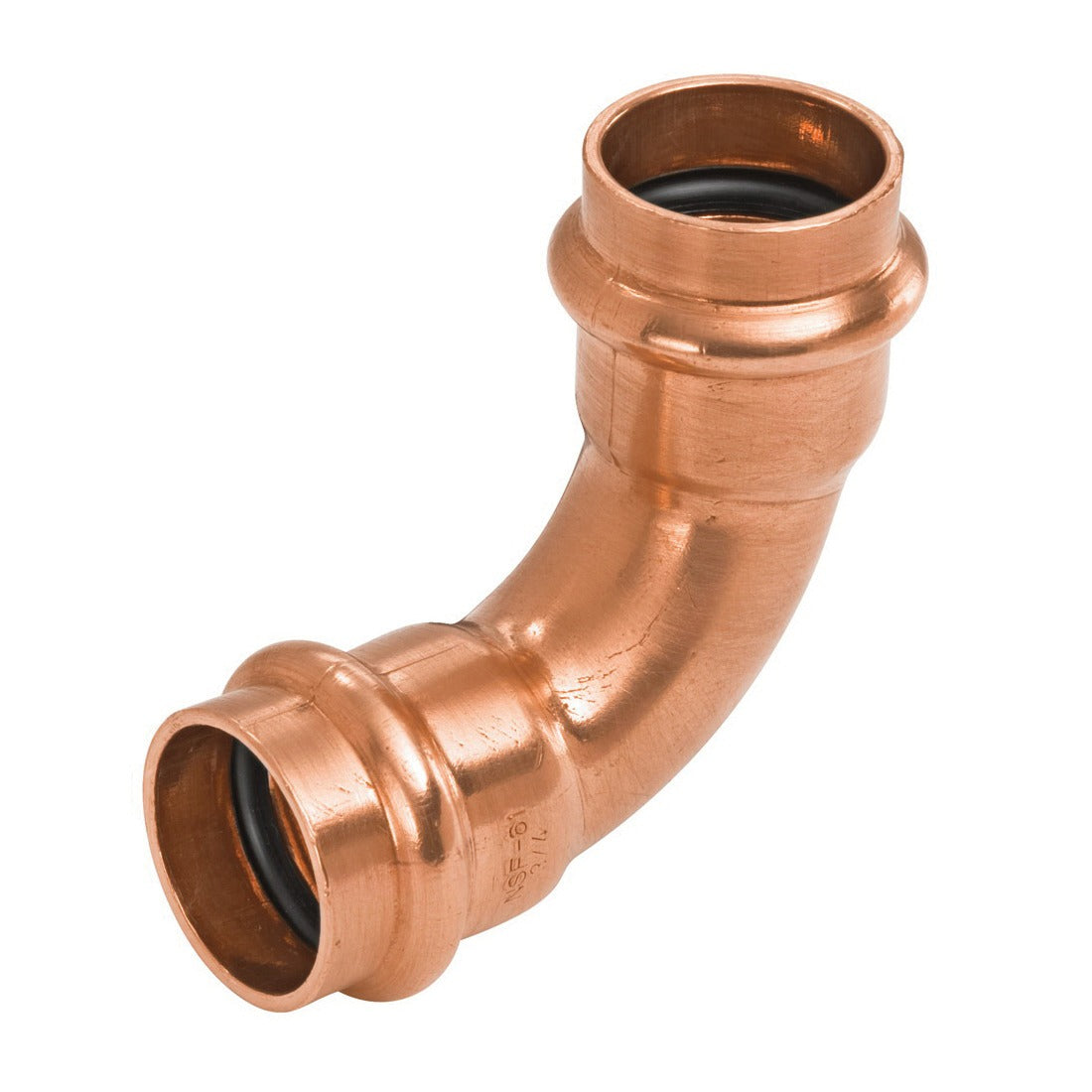

Nibco 9055755PC Wrot Copper Press Elbow 1 X 3/4 Inch

Product Description

The NIBCO 9055755PC is a wrot copper reducing elbow from the NIBCO Press System line, designed for press-fit connections without open flame or solder. The PC607 elbow transitions between a 1-inch nominal inlet and a 3/4-inch nominal outlet using a press end style, creating a permanent, leak-tested joint with the appropriate press tool. It is a standard fitting for potable water, hydronic heating, and mechanical piping systems. Licensed plumbers and pipefitters install this fitting wherever a direction change and reduction are needed in a press-fit copper system. Wrot copper construction provides consistent wall thickness and reliable performance in both hot and cold water service.

The NIBCO 9055755PC fits residential and light commercial plumbing and hydronic applications. It is used in new construction and retrofit work where soldering or brazing is restricted, such as occupied buildings or areas with fire-code limitations. The press end style requires a compatible press tool and NIBCO-approved jaw or ring set. This elbow is domestically manufactured, making it appropriate for projects with domestic content requirements.

Key Features

• Press end style eliminates open-flame soldering for faster, safer installation
• Wrot copper construction provides consistent wall thickness and material integrity
• Reducing configuration transitions 1-inch nominal to 3/4-inch nominal in a single fitting
• Domestic manufacture supports Buy American and domestic content compliance requirements
• PC607 elbow geometry provides a 90-degree direction change with an inline reduction

Compatibility

Designed as an OEM-style press-fit replacement fitting for wrot copper press piping systems using standard press end connections in 1-inch by 3/4-inch nominal sizing.

Installation Notes

Installation must be performed by a licensed plumber using a compatible press tool with the correct jaw or ring size for each connection end. Shut off and depressurize the water supply and drain the line before pressing. Do not use an open flame near the fitting or installed sealing elements. Follow applicable local plumbing codes and IPC guidelines for press-fit copper fittings.

Technical Specifications

• Nominal Size: 1 x 3/4 inches
• End Style: Press
• Material: Wrot Copper
• Product Series: PC607
• Origin: Domestic

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9055755PC
