Nibco 9055652 607R Elbow 90 Degree (3/4 x 1/2 Inch)

Product Description

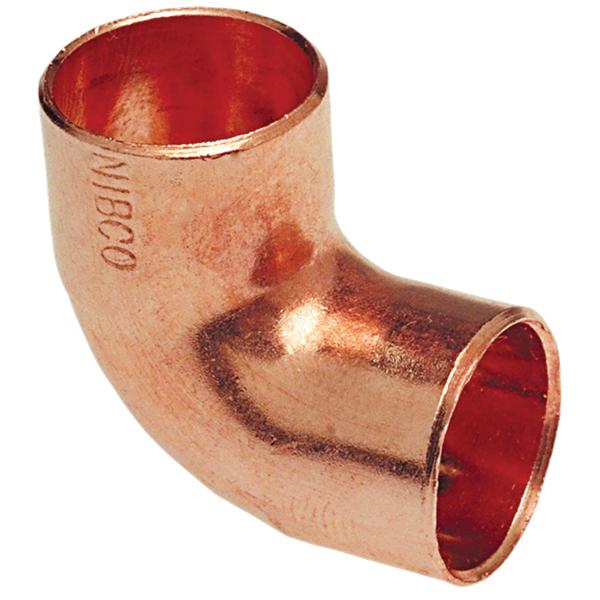

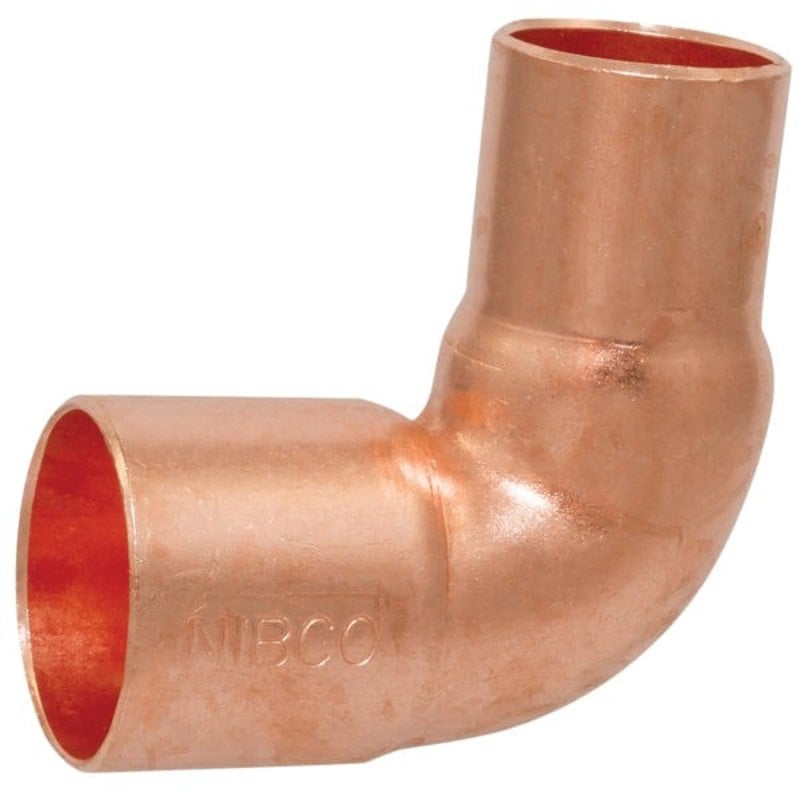

The NIBCO 9055652 607R is a lead-free wrot copper solder pressure 90-degree close rough reducing elbow used in residential and commercial systems for potable water, air conditioning, and refrigeration. It is made from ASTM B75 Alloy C12200 dezincification resistant copper. The elbow features female soldered end connections.

• CLOSE ROUGH, REDUCING TYPE
• DZR COPPER MATERIAL
• LEAD-FREE

Product Highlights

This 90-degree elbow is suitable for potable water, air conditioning, and refrigeration applications. It conforms to ASME B16.22 and NSF/ANSI 61/372 standards.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9055652

Technical Specifications

• MPN: 9055652
• Brand: NIBCO
• Angle: 90 Degree
• Applicable Standard: ASME B16.22, NSF/ANSI 61/372, NFPA 99, MSS SP-104
• Application: Residential and Commercial Potable Water, Air Conditioning and Refrigeration
• End Connection: Female Soldered x Female Soldered
• Material: C12200 Dezincification Resistant Copper Alloy
• Material Specification: ASTM B75
• Pressure Rating: 582 PSI at -20 to 100 Deg F
• Process: Wrot
• Size A: 3/4 Inch
• Size B: 1/2 Inch
• Type: Reducing, Close Rough
• Vendor Description: 3/4 X 1/2 WROT COPPER 90
• VENDOR Product No: 607R-3/4X1/2
• Size: 3/4 in.
• Connections: Solder
