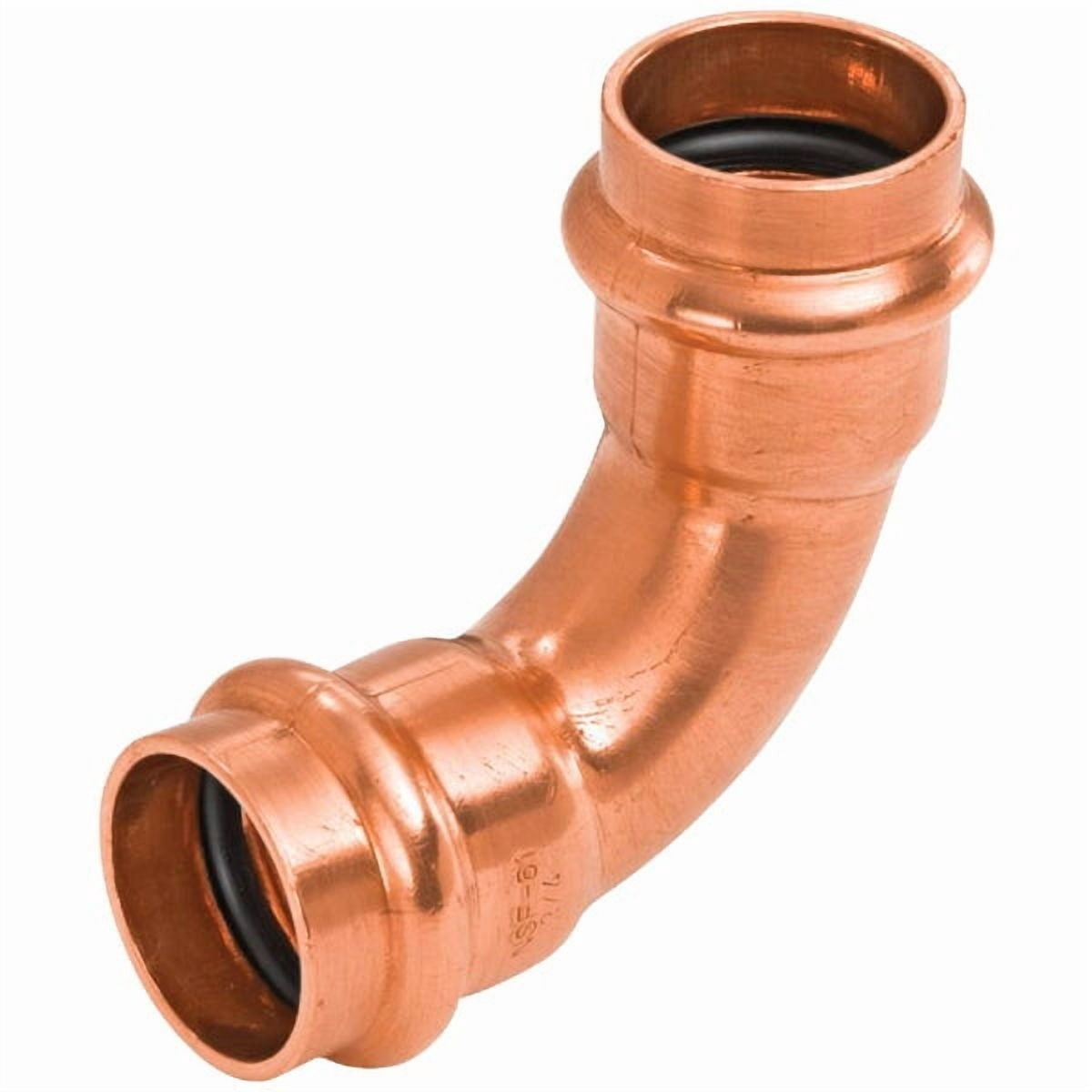

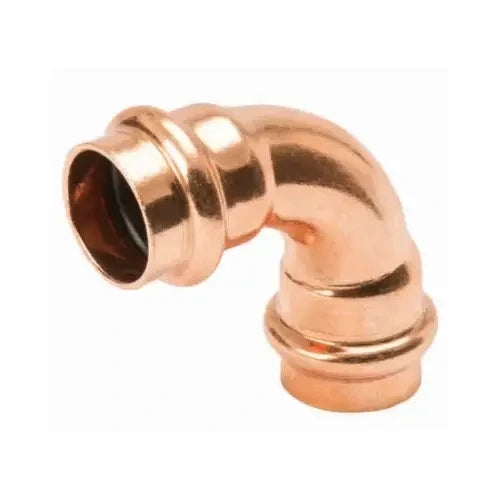

Nibco 9055600PCU 90 Degree Press Copper Elbow Long Radius 3/4 in Press x Press

Product Description

Nibco 9055600PCU is a long-radius 90-degree press copper elbow designed for 3/4 in press-fit copper piping systems. The fitting provides a flameless press x press connection for directional changes in potable water, hydronic heating, chilled water, compressed air, non-medical gases, low-pressure steam, and vacuum applications. It is specified for a 200 PSI cold working pressure and an operating temperature range of -20 F to 250 F.

• Long-radius 90-degree copper elbow for smoother flow and 3/4 in press x press connections
• Rated 200 PSI CWP maximum; operating temperature range -20 F to 250 F; approved for above- and below-ground installations as allowed by local code
• Press-fit (Pxp) female connections, lead-free copper construction, sold as a single piece

Product Highlights

Long-radius 90° press copper elbow, 3/4 in press x press, 200 PSI CWP, -20 F to 250 F, suitable for potable water and hydronic systems

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9055600PCU
• Country of Origin: Korea, Republic of
