Nibco 9025900HPC Press X Female Adapter 1-1/2 in

Product Description

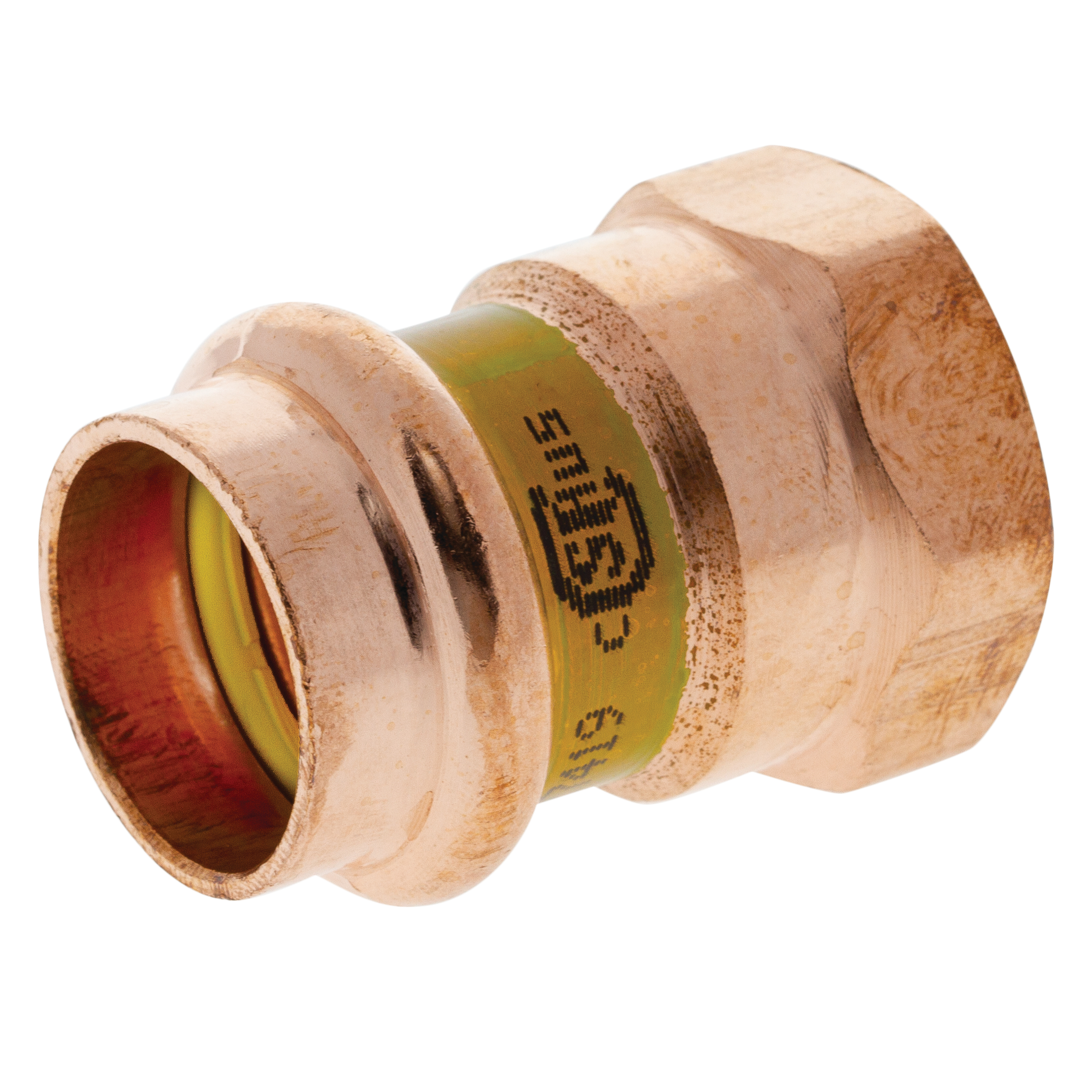

The NIBCO 9025900HPC is a press-by-female-thread copper adapter fitting designed for joining copper tubing to female-threaded pipe connections without soldering or open flame. This fitting uses a press connection on one end and a female threaded port on the other, allowing fast, reliable transitions between press-style copper systems and threaded components. It is sized at 1-1/2 inches and is suited for residential and commercial gas distribution, compressed air, and potable water piping systems. Licensed plumbers and pipefitters are the primary installers. The fitting is backed by a 25-year limited warranty.

This adapter is part of the NIBCO PressG product line, engineered for use with seamless copper water tube in both above-ground and underground installations. It serves residential and commercial applications where copper tubing must connect to female-threaded valves, equipment inlets, or pipe assemblies. The press end eliminates the need for soldering, making it well suited for retrofit work, tight spaces, or jobsites where open-flame work is restricted. Systems including gas piping and compressed air distribution are common application areas.

Key Features

• Press-by-female-thread configuration allows tool-pressed copper connection to threaded components
• 1-1/2 inch sizing for medium-diameter copper tubing systems
• Approved for underground installation in addition to above-ground use
• Compatible with residential and commercial gas and compressed air systems
• Unique N witness mark confirms proper crimp when fitting is correctly pressed
• 25-year limited warranty coverage

Compatibility

Designed for use with seamless copper water tube in residential and commercial gas and compressed air piping systems. Also suitable for potable water applications. Compatible with standard press tooling, jaws, and chains designed for copper press fittings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and NIBCO technical data sheets. Shut off and depressurize the system before beginning work. Use approved press tooling and the correct jaw size for 1-1/2 inch copper fittings to ensure a complete crimp. Verify the N witness mark is visible after pressing to confirm a proper connection before restoring system pressure.

Technical Specifications

• Size: 1-1/2 inches
• Connection Type: Press x Female Thread
• Material: Copper
• Application: Gas, Compressed Air, Potable Water
• Underground Installation: Approved
• Warranty: 25-year limited
• UPC: 039923412591

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9025900HPC
