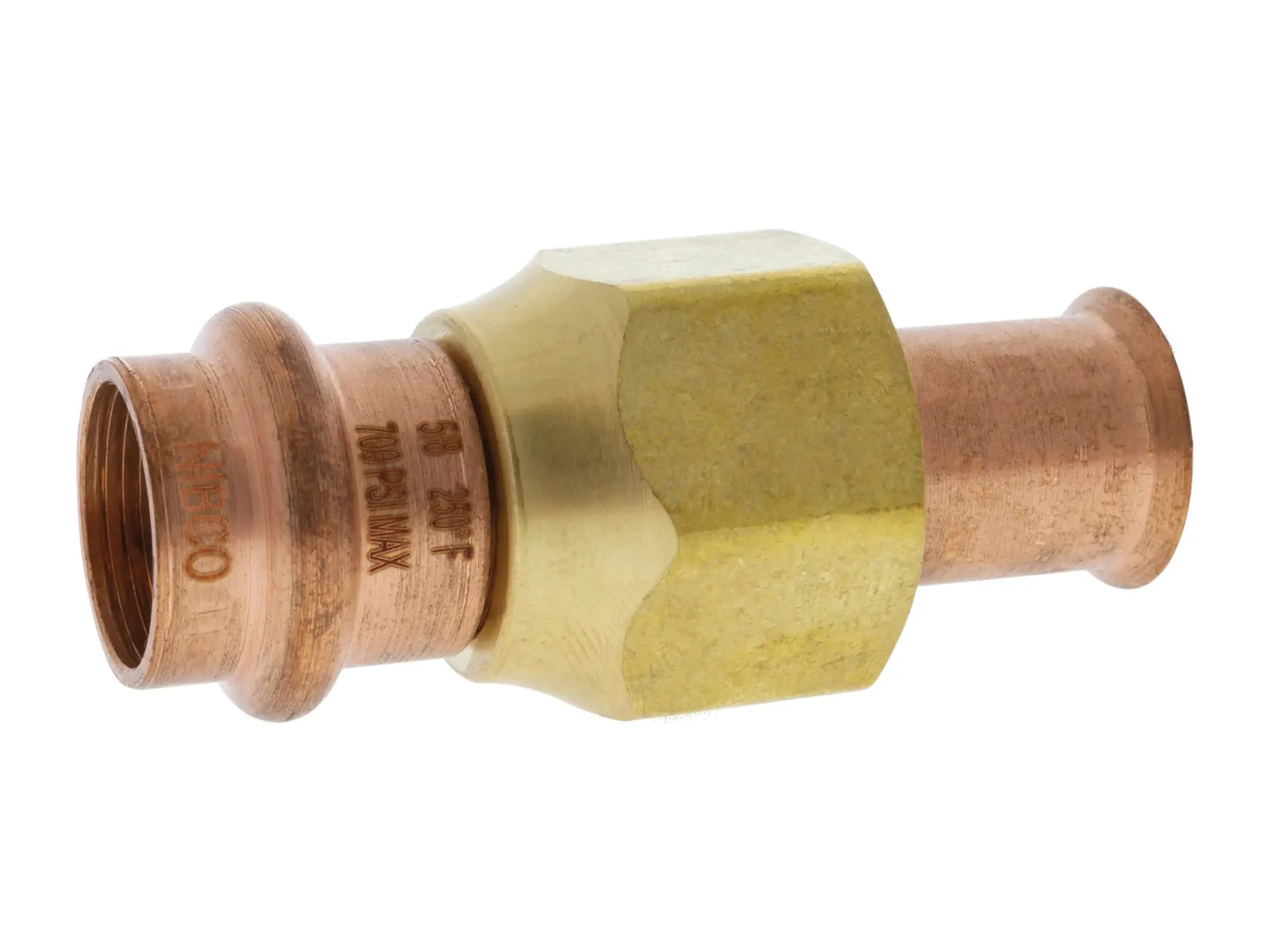

Nibco 900603RPC Flare Adapter 3/8 inches O.D. x 3/8 inches O.D. PC9635

Product Description

The NIBCO 900603RPC Flare Adapter features an inboard bead and gray HNBR O-ring. Applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal with no flame, solder, or flux in seconds. It adapts from a threaded flare connection to a press connection and joins copper tubing in air conditioning and refrigeration applications systems.

• Operating pressure 700 psi max
• Temperature range -40°F to 250°F
• Vacuum: 500mi

Product Highlights

The NIBCO PressACR SAE Flare fittings are user-friendly, quick, and easy to install. When properly crimped, a unique "N" witness mark is visible.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 900603RPC
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: 900603RPC
• Model: PC9635
• Old Material Number: PC963538
• Nominal Pipe Size: 3/8"
• Nominal Size 1: 3/8" O.D.
• Applications: ACR Air Conditioning/Refrigeration
• Material: Copper
• End Connection: Flare
• System Use: Air Conditioning/Refrigeration (ACR), HVAC, Glycol
• Type of Fitting: Flare
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 2.31"
• Width: 0.882"
• Height: 0.81"
• Fitting/Connector Type: Adapter
• Nominal Size: 3/8 in
• End Style: Press x Flare
• Pressure Rating: 700 psi
• Series: PC9635
• Temperature Rating: -40 to 250 deg F
• Domestic/Import: Domestic
• Package Width: 0.88 in
• Package Height: 0.81 in
• Alternate Part Number 1: PC963538
• Package Length: 2.31 in
