Nibco 900602RPC ACR Press x Flare 5/8OD

Product Description

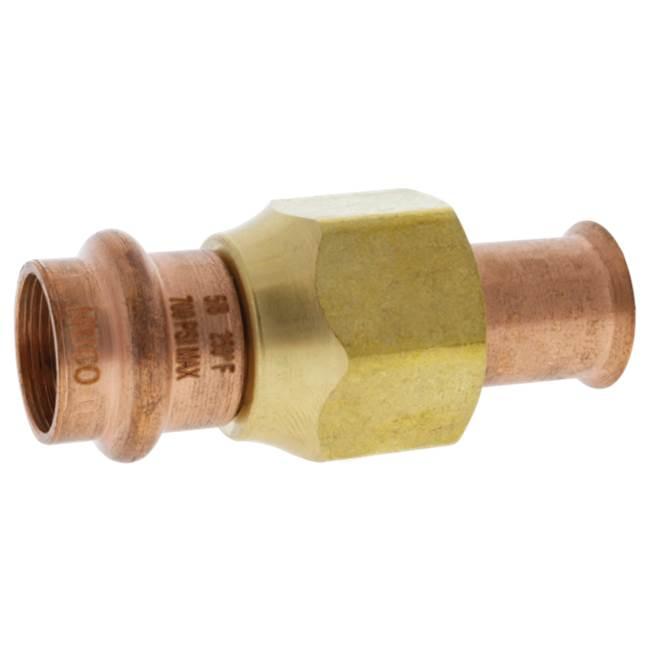

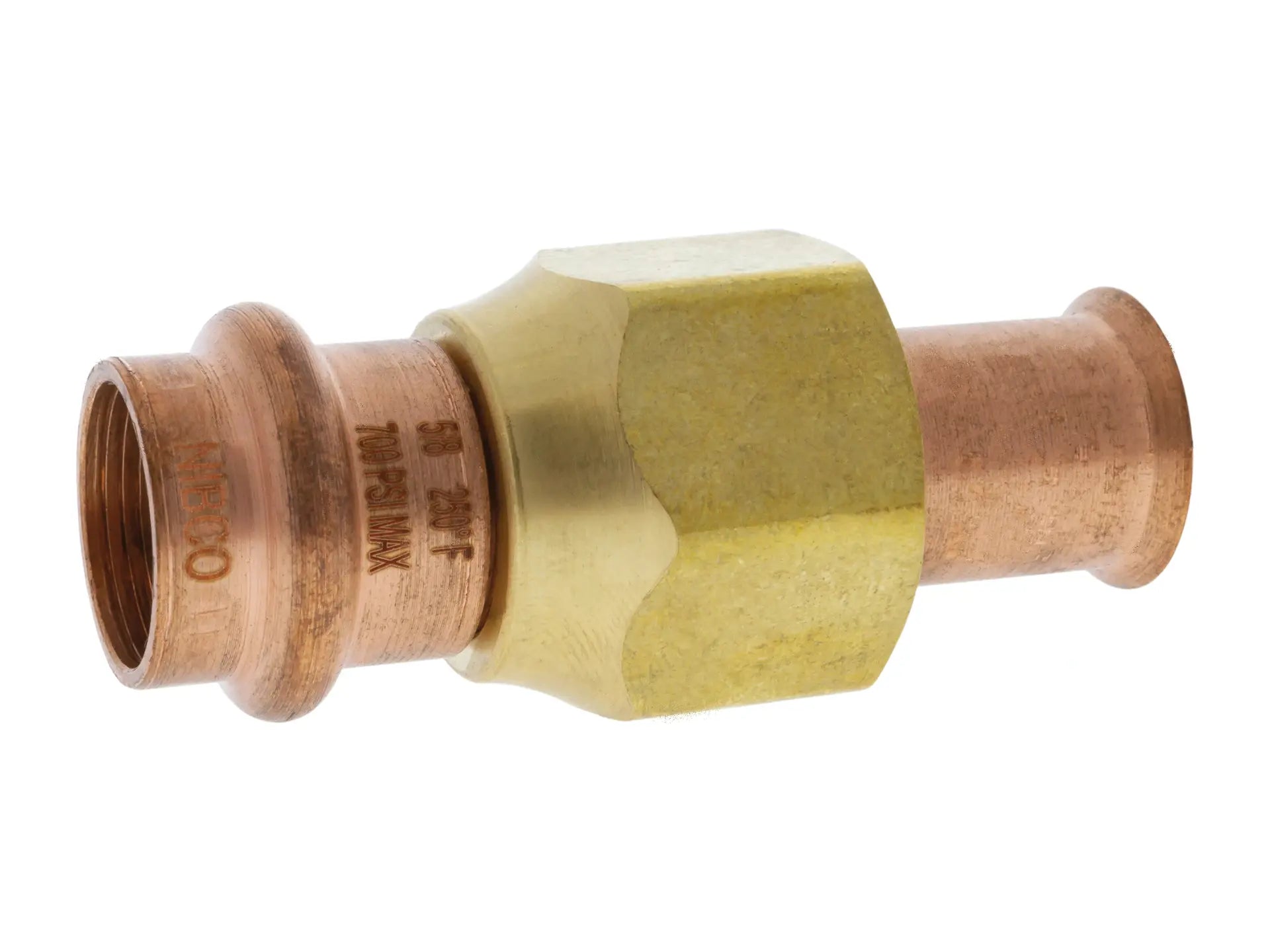

The NIBCO 900602RPC ACR Press x Flare is a copper adapter fitting designed for air conditioning and refrigeration systems. It features a Press x Flare connection with a 5/8 inch nominal size. This fitting operates at a maximum pressure of 700 psi and within a temperature range of -40°F to 250°F. It is suitable for various approved refrigerants and oils, and is UL 207 recognized.

• Maximum operating pressure of 700 psi.
• Temperature range from -40°F to 250°F.
• Compatible with a wide range of approved refrigerants and oils.

Product Highlights

Copper adapter fitting for ACR systems, featuring Press x Flare connections and UL 207 recognition.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 900602RPC
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO Inc
• Brand: NIBCO
• MPN: 900602RPC
• Connection Size 1: 5/8 In
• Connection Size 2: 5/8 In
• Connection Type 1: Press
• Connection Type 2: Flare
• Connection Type: Press|Flare
• Fitting Type: Adapter
• Material: Copper
• Domestic/Import: Domestic
• End Style: Press x SAE Flare
• Nominal Size: 5/8 in
• Pressure Rating: 700 psi
• Series: PC9635
• Temperature Range: -40 to 250 deg F
• Nominal Size OD: 5/8" O.D.
• Applications: ACR Air Conditioning/Refrigeration
• End Connection: Flare
• System Use: Air Conditioning/Refrigeration (ACR), HVAC, Glycol
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 2.51"
• Width: 1.22"
• Height: 1.06"
• Old Material Number: PC963558
• Alternate Part Number: NPAPF58
• Country of Origin: US
• UPC: 039923413857
• Certifications: UL 207, ISO 5149-2, ISO I4903, UL 109LL Compliant NSF/ANSI 372, PROP 65
