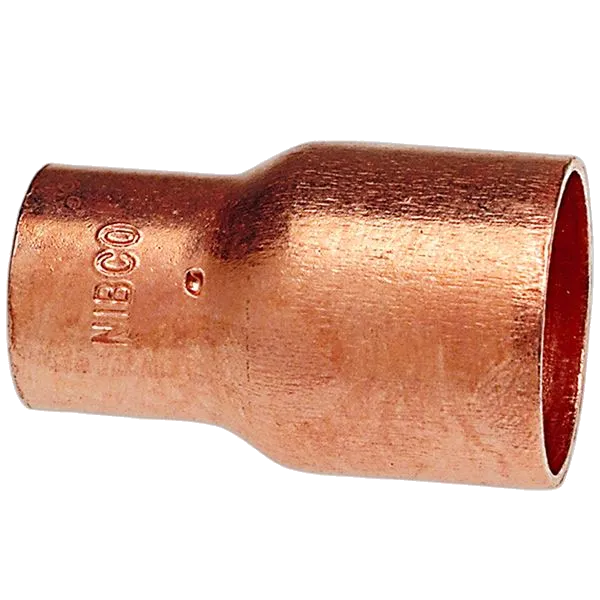

Nibco 9001850CB Reducing Coupling C x C - Wrot, 1 1/4 x 1/2

Product Description

The NIBCO 9001850CB reducing coupling features solder cups and provides a means of connecting larger size tube to smaller size tube. This lead-free wrot copper solder reducing coupling is used in residential and commercial systems such as potable water, air conditioning and refrigeration.

• Lead-free
• Dezincification resistant
• ASTM B75 Alloy C12200
• Third-party certified to NSF/ANSI 61 and 372

Product Highlights

The fitting is manufactured in an ISO 9001 certified facility, and backed by a 50-year limited warranty.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9001850CB
• Country of Origin: US

Technical Specifications

• UPC Code: 039923300935
• All Type of Item: Fitting
• All Special Application: CB Cleaned and Bagged for Oxygen Service (Medical Gas)
• Description: 600R-CB 11/4X1/2 CXC REDUCING COUPLING
• Global Item Classification Code: 10004024, Valves/Fittings - Water
• Type: Coupling
• Connection Type: C x C
• Size: 1 1/4 x 1/2
• Material: Copper
• Nominal Size 1: 1 1/4
• Nominal Size 2: 1/2
• Manufacturer: NIBCO
• Part Number: 9001850CB
• Model: 600R-CB
• Type of Fitting: Coupling
• Type Of Coupling: Reducing Size
• Nominal Pipe Size: 1-1/4" x 1/2"
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 1.91"
• Width: 1.47"
• Height: 1.47"
• Item: Reducing Coupling
• Body Material: Copper
• Reducing Type: Reducing
• DZR Copper Material: DZR COPPER MATERIAL
• Size A: 1-1/4 Inch
• Size B: 1/2 Inch
• Applicable Standard: NSF/ANSI 61/372, ASME B16.22, MSS SP-104, NFPA 99
• Application: Residential, Commercial, Potable Water System, Refrigeration and Air Conditioning
• CPS COMM CODE: COP_RED_COUP_CB
• End Connection: Female Soldered x Female Soldered
• Gasket Supplied: No
• Material Specification: ASTM B75
• Process: Wrot
• VENDOR Product No: 600R-CB-1-1/4X1/2
• End Style: Solder
• Fitting/Connector Type: Coupling
• Nominal Size: 1-1/4 x 1/2 in
• Series: 600R-CB
• Lead-Free: LEAD-FREE
• Domestic/Import: Domestic
