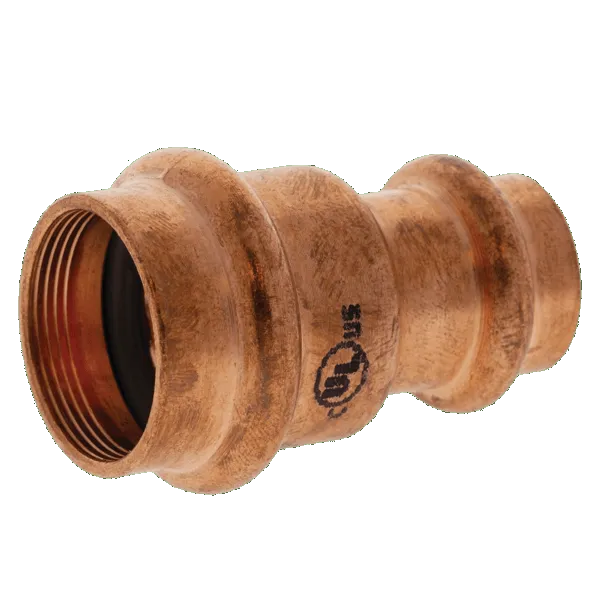

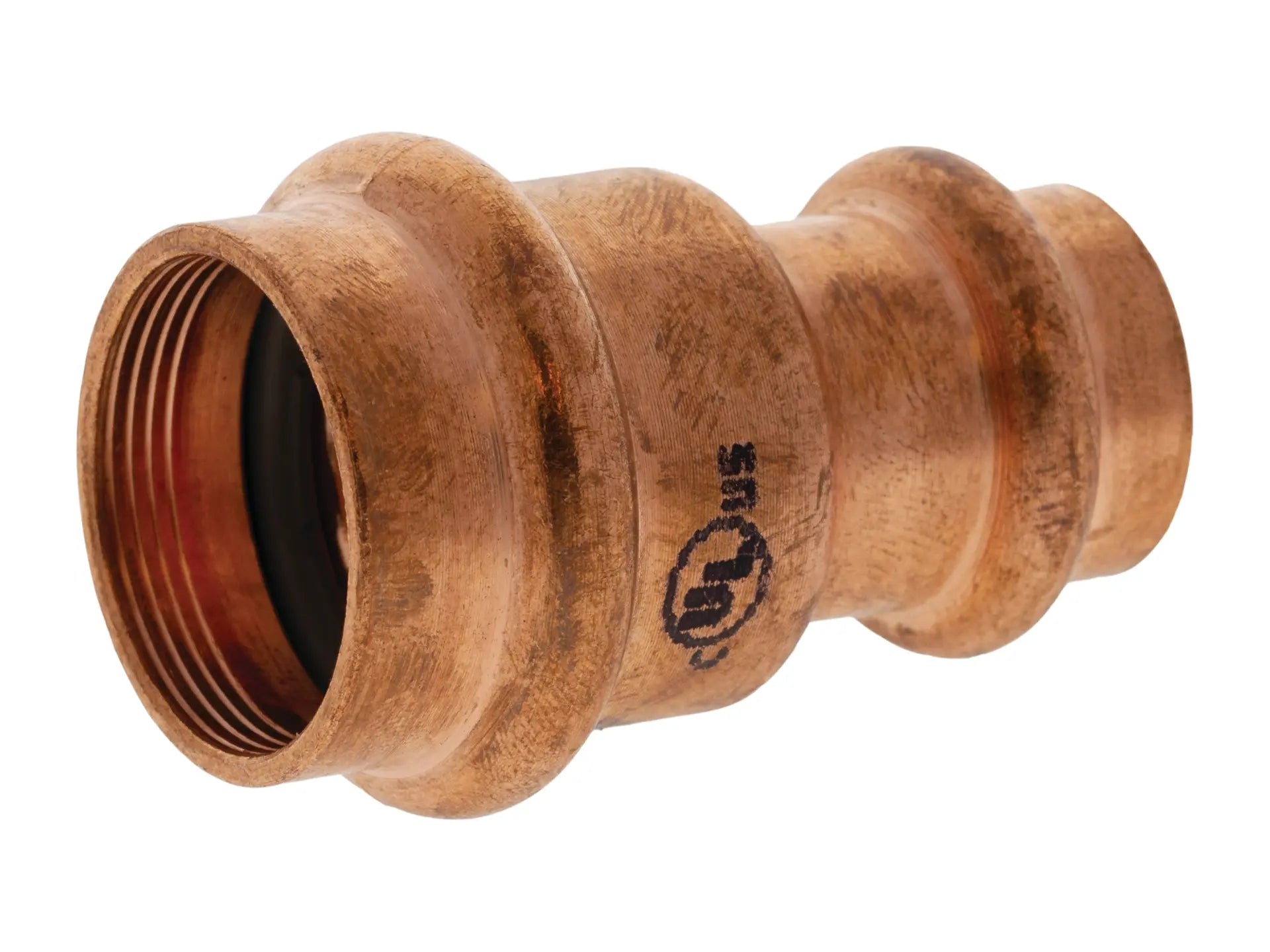

Nibco 900121RPC PressACR Reducing Coupling 3/4 inches x 5/8 inches O.D.

Product Description

The NIBCO 900121RPC PressACR reducing copper coupling features an inboard bead and gray HNBR O-ring. Applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal. The fitting provides a method to connect a larger size to a smaller size tube. NIBCO PressACR fittings are designed to join with seamless copper water tube in air conditioning and refrigeration applications systems.

• Operating pressure 700 psi max
• Temperature range -40°F to 250°F
• Vacuum: 500mi

Product Highlights

The NIBCO PressACR fittings are the fastest, easiest way to join copper tubing systems. When properly crimped a unique "N" witness mark is clearly visible.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 900121RPC
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: 900121RPC
• Model: PC9600-R
• Type of Fitting: Coupling
• Type of Coupling: Reducing Size
• Nominal Pipe Size: 3/4" x 5/8" O.D.
• Material: Copper
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923413666
• Length: 1.63"
• Width: 1.12"
• Height: 1.12"
• Country of Origin: US
• Connection Type: Press
• Operating pressure: 700 psi max
• Temperature range: -40 0F to 250 0F
• Vacuum: 500mi
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
• Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
• UL 207: Recognized to 700 PSI
• Complies with: ISO 5149-2, ISO I4903 Helium leak test, ISO 14903 Thermal cycle test, ISO 14903 Fatigue test, ISO 14903 Freeze test, UL 109 vibration
• Connection Size 1: 3/4 In
• Connection Size 2: 5/8 In
