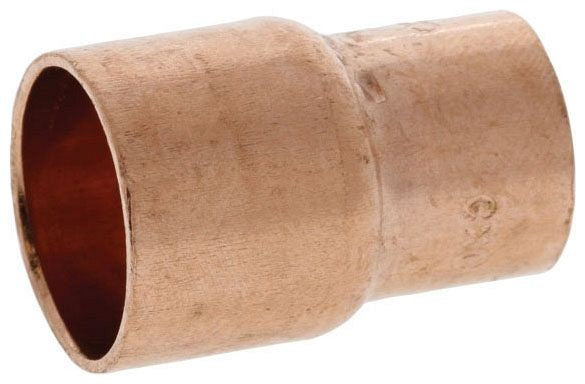

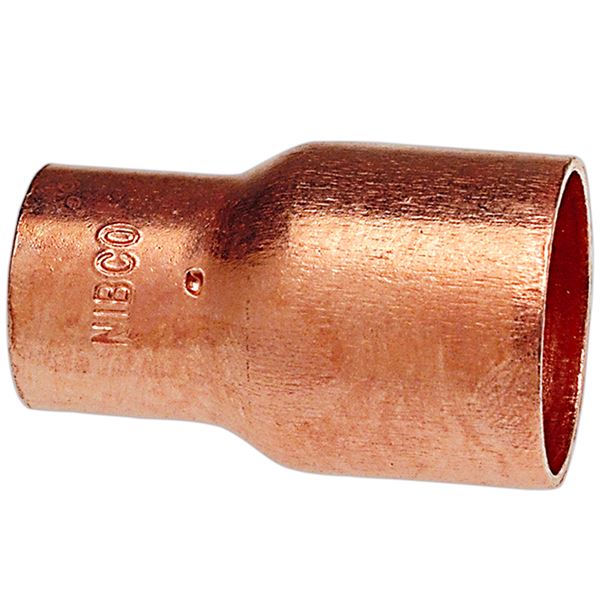

Nibco 9001150CB Reducing Coupling 1/2 x 3/8 (1 Pack) 600R-CB

Product Description

Nibco 9001150CB is a reducing coupling that connects a 1/2 in tube to a 3/8 in tube using cup x cup soldered connections. The fitting is lead-free wrought copper with solder cup ends and is cleaned and bagged (CB) for oxygen and medical gas service. It is manufactured in an ISO 9001 certified facility, rated to 722 psi working pressure with a temperature range of -20 to 100 deg F.

• 1/2 x 3/8 in cup x cup (C x C) reducing coupling with solder cup connections
• Lead-free wrought copper construction; cleaned and bagged (CB) for oxygen/medical gas service
• Rated 722 psi working pressure; temperature range -20 to 100 deg F; manufactured in ISO 9001 facility

Product Highlights

Lead-free solder reducing coupling 1/2 in C x 3/8 in C; 722 psi; CB cleaned and bagged for oxygen service; ISO 9001 certified

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9001150CB
• Country of Origin: US

Technical Specifications

• Brand: NIBCO
• Manufacturer Part Number: 9001150CB
• Model/Series: 600R-CB
• Product Type: Reducing coupling
• Connection Type: Cup x cup (C x C)
• Size: 1/2 x 3/8 in
• Nominal Size 1: 1/2 in
• Nominal Size 2: 3/8 in
• Material: Lead-free wrought copper
• Material Alloy: C12200 copper alloy
• Lead Free: Yes
• End Connection: Female soldered x female soldered (solder cup)
• Cleaning: CB cleaned and bagged for oxygen/medical gas service
• Application: Potable water, air conditioning, refrigeration, oxygen/medical gas
• Pressure Rating: 722 psi
• Temperature Range: -20 to 100 deg F
• Dimensions: 0.56 x 0.69 in Dia x 1.07 in L
• Length: 1.07 in
• Height: 0.69 in
• Width: 0.69 in
• Diameter: 0.56 in
• Weight (listed): 0.010800
• Certifications: ISO 9001
• Standards: NSF/ANSI 61/372, ASME B16.22, MSS SP-104/109, NFPA 99 (per source listings)
• UPC: 039923300676
• Country Of Origin: US
• Process: Wrought
