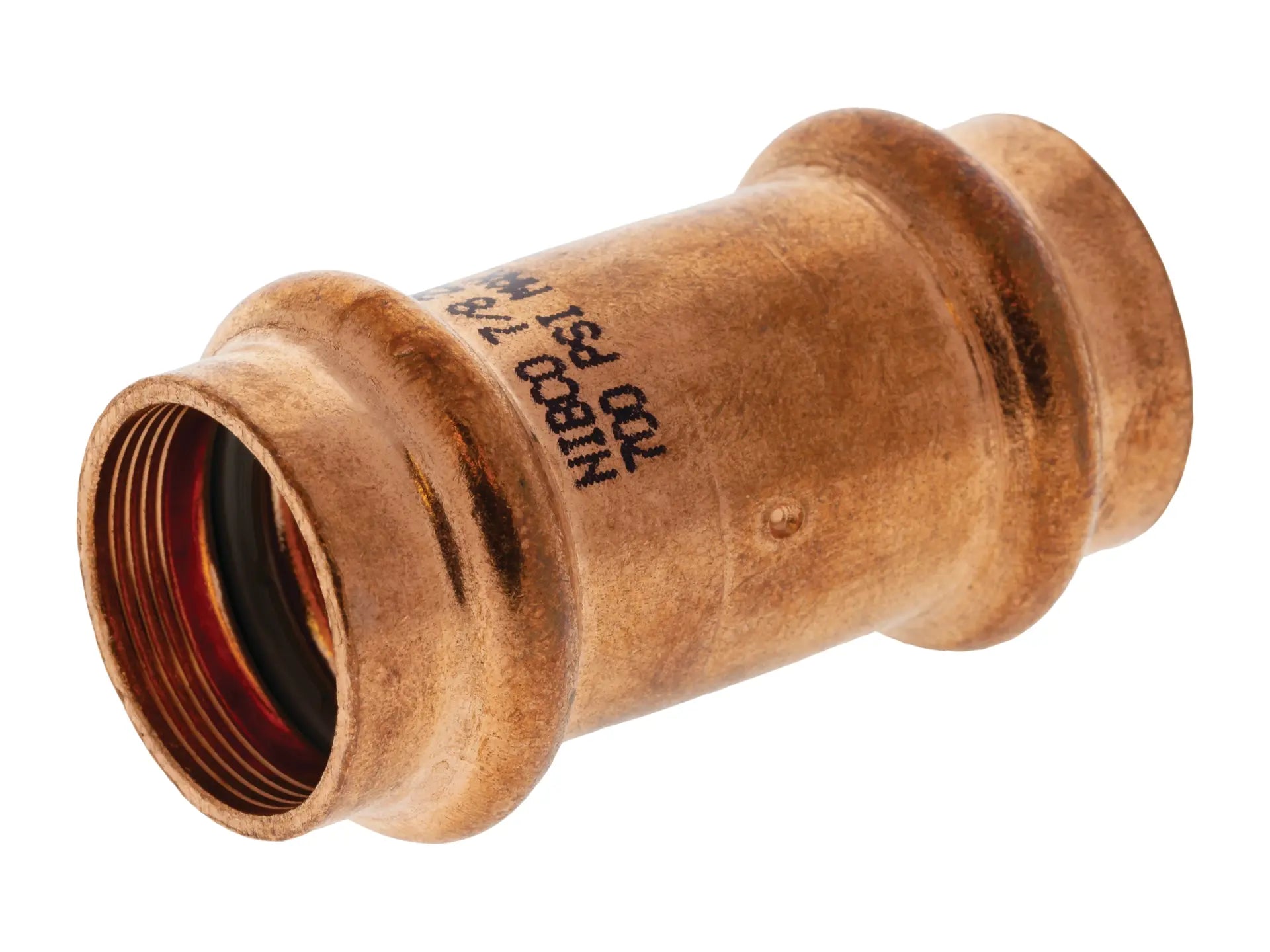

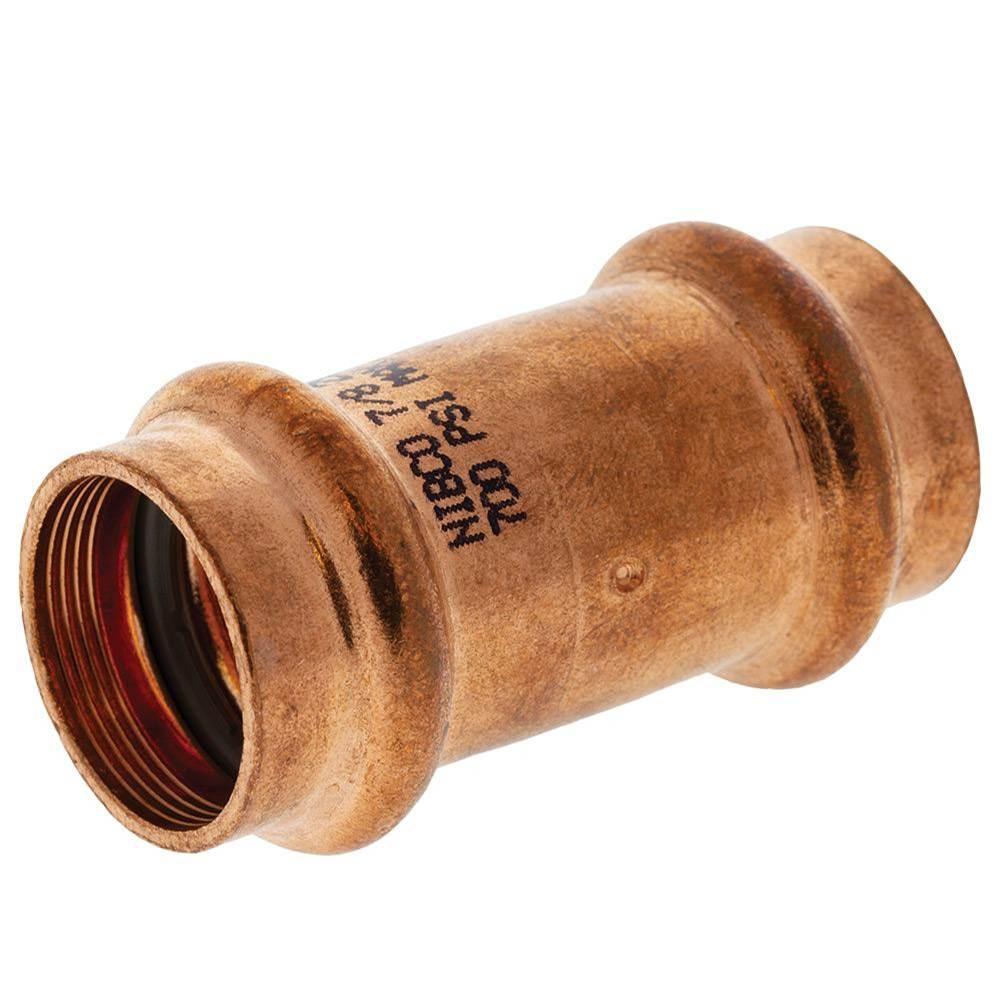

Nibco 900110RPC Pressacr 900110rpc pc9600-ds Coupling, 5/8 in, Press, Wrot Copper, Domestic

Product Description

The NIBCO 900110RPC PressACR coupling is the fastest, easiest way to join copper tubing systems. Designed to join with seamless copper water tube in air conditioning and refrigeration applications systems. The press fittings can also be installed underground. User friendly, quick and easy to install.

• 500 mi vacuum
• Operating pressure 700 psi max
• Temperature range -40 degrees F to 250 degrees F

Product Highlights

The NIBCO PressACR copper coupling features an inboard bead and gray HNBR O-ring. When properly crimped a unique "N" witness mark is clearly visible.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 900110RPC
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: Press
• Fitting/Connector Type: Coupling
• Material: Wrot Copper
• Method of Manufacture: Cast
• Nominal Size: 5/8 in
• Pressure Rating: 700 psi
• Series: PC9600-DS
• Temperature Rating: -40 to 250 deg F
• Manufacturer: NIBCO
• Part Number: 900110RPC
• Model: PC9600-DS
• Type of Fitting: Coupling
• Nominal Pipe Size: 5/8" O.D.
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 1.75"
• Width: 0.95"
• Height: 0.95"
• Country of Origin: US
• Connection Size 1: 5/8 In
• Connection Size 2: 5/8 In
• Connection Type 1: Press
• Connection Type 2: Press
• Connection Type: Press
• Fitting Type: Coupling
• Material Construction: Copper
