Nibco 900035RPC PressACR Copper Coupling 3/8 inches O.D. x 3/8 inches O.D. PC9600-DS

Product Description

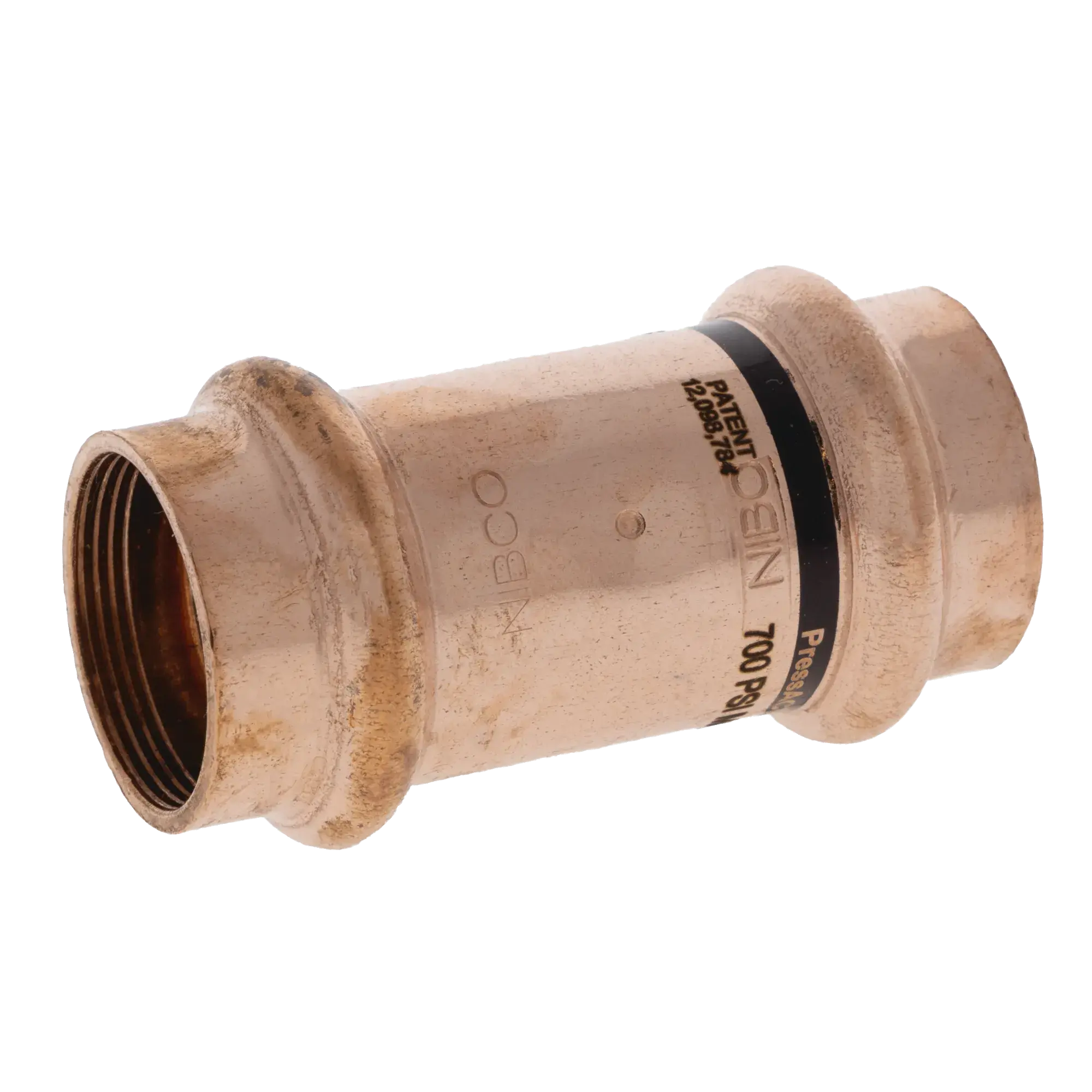

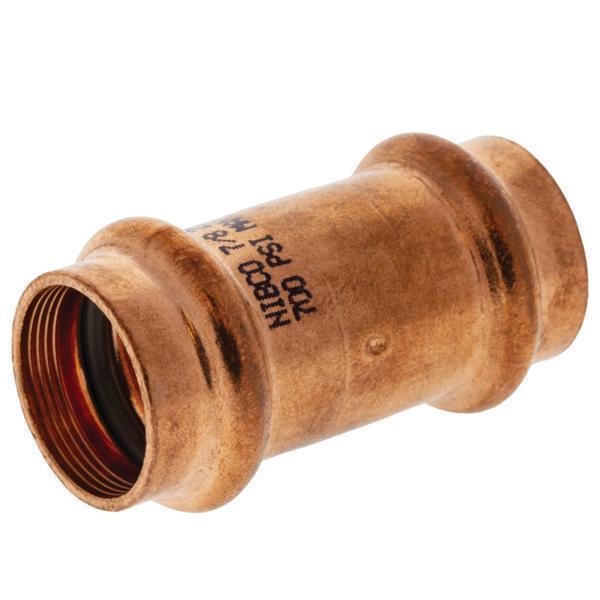

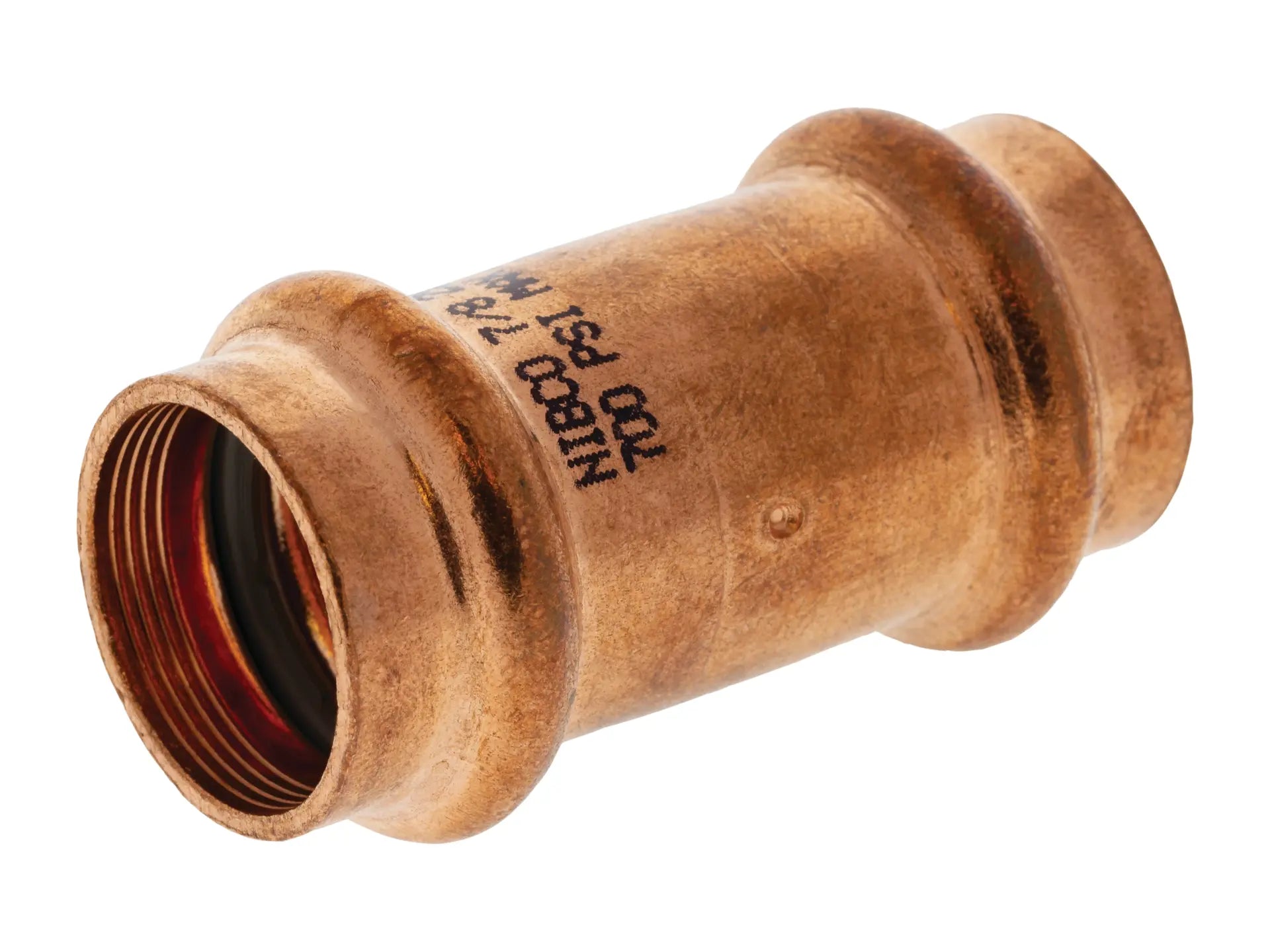

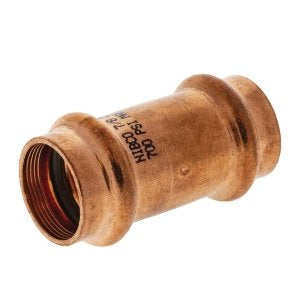

The NIBCO PressACR copper coupling, MPN 900035RPC, features an inboard bead and gray HNBR O-ring. Applying pressure from a pressing tool tightens the O-ring onto the tube, creating a robust seal without flame, solder, or flux. This fitting connects two tube lengths in air conditioning and refrigeration systems and can be installed underground.

• Operating pressure 700 psi max
• Temperature range -40°F to 250°F
• Vacuum: 500mi

Product Highlights

NIBCO PressACR fittings provide a quick, easy, and user-friendly way to join copper tubing systems with a unique witness mark when properly crimped.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 900035RPC
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: 900035RPC
• Model: PC9600-DS
• Type of Fitting: Coupling
• Nominal Pipe Size: 3/8" O.D.
• Material: Copper
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923418302
• Length: 1.56"
• Width: 0.62"
• Height: 0.62"
• Domestic/Import: Domestic
• End Style: Press
• Method of Manufacture: Cast
• Pressure Rating: 700 psi
• Series: PC9600-DS
• Temperature Rating: -40 to 250 deg F
• Package Quantity: 1
• UL Listed: No
• ADA Compliant: No
• UNSPSC: 40172612
• MADE IN THE USA: Yes
• GSA Approved: No
• AbilityOne: No
• TAA/BAA Compliant: Yes
• Operating pressure: 700 psi max
• Temperature range: -40 0b0F to 250 0b0F
• Vacuum: 500mi
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
• Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
• UL 207 Recognized to: 700 PSI
