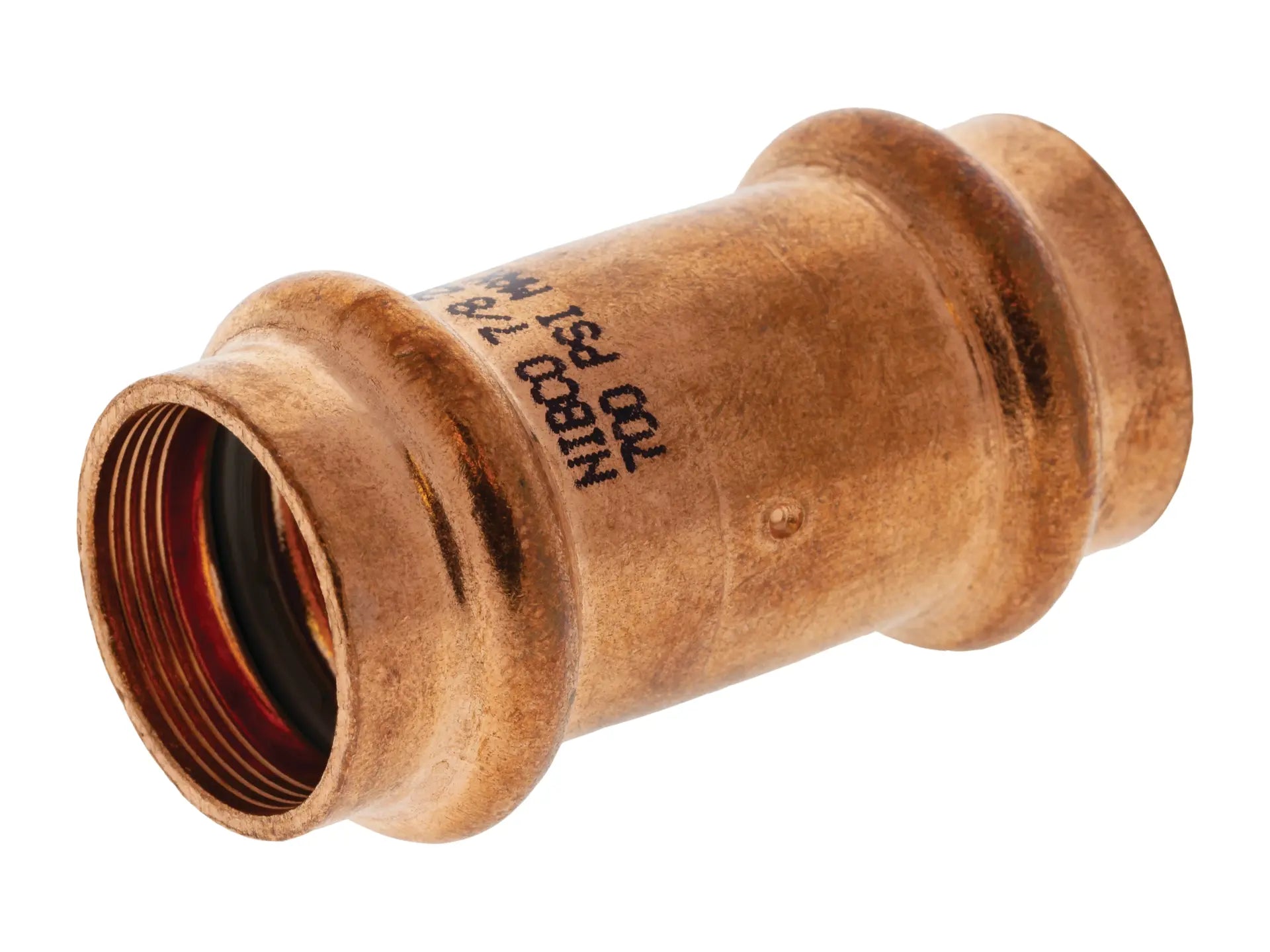

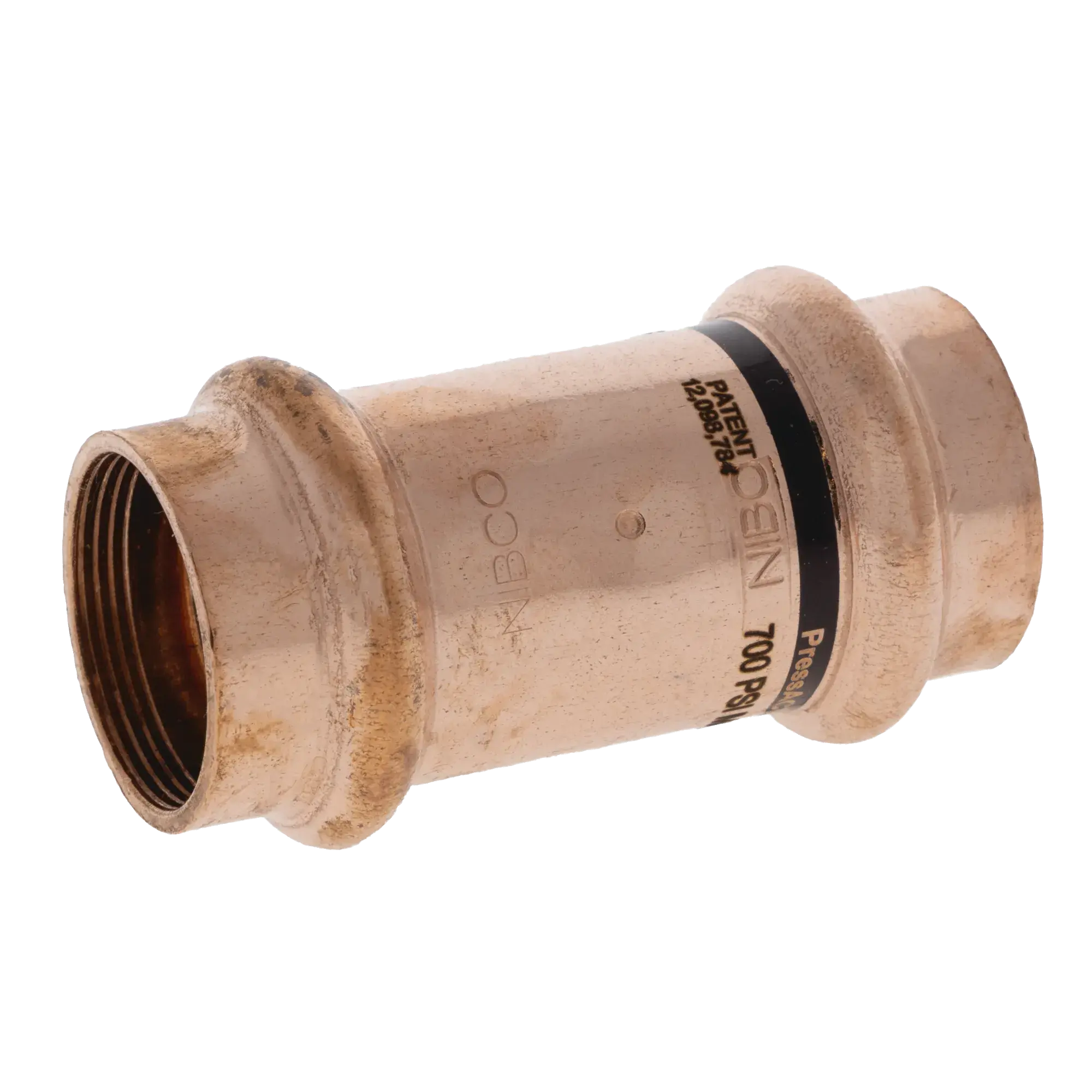

Nibco 900015RPC PC9600-DS Coupling 1/4 in. O.D. x 1/4 in. O.D.

Product Description

The NIBCO 900015RPC PressACR copper coupling features an inboard bead and gray HNBR O-ring. Applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds with no flame, solder, or flux. The fitting provides a method to connect two lengths of tube. NIBCO PressACR fittings are the fastest, easiest way to join copper tubing systems.

• Operating pressure 700 psi max
• Temperature range -40°F to 250°F
• Vacuum: 500mi

Product Highlights

The NIBCO coupling has press connections and a dimple tube stop. It Complies with ISO 5149-2, ISO I4903 Helium leak test, ISO 14903 Thermal cycle test, ISO 14903 Fatigue test, ISO 14903 Freeze test, UL 109 vibration.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 900015RPC
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: 900015RPC
• Model: PC9600-DS
• Type of Fitting: Coupling
• Nominal Pipe Size: 1/4"
• Material: Copper
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923418289
• Length: 1.56"
• Width: 0.48"
• Height: 0.48"
• Operating pressure: 700 psi max
• Temperature range: -40°F to 250°F
• Vacuum: 500mi
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
• Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
• UL 207 Recognized: to 700 PSI
• Complies with: ISO 5149-2, ISO I4903 Helium leak test, ISO 14903 Thermal cycle test, ISO 14903 Fatigue test, ISO 14903 Freeze test, UL 109 vibration
• Connection Type: Prs x Prs
• eClass Classification: Press Couplings
