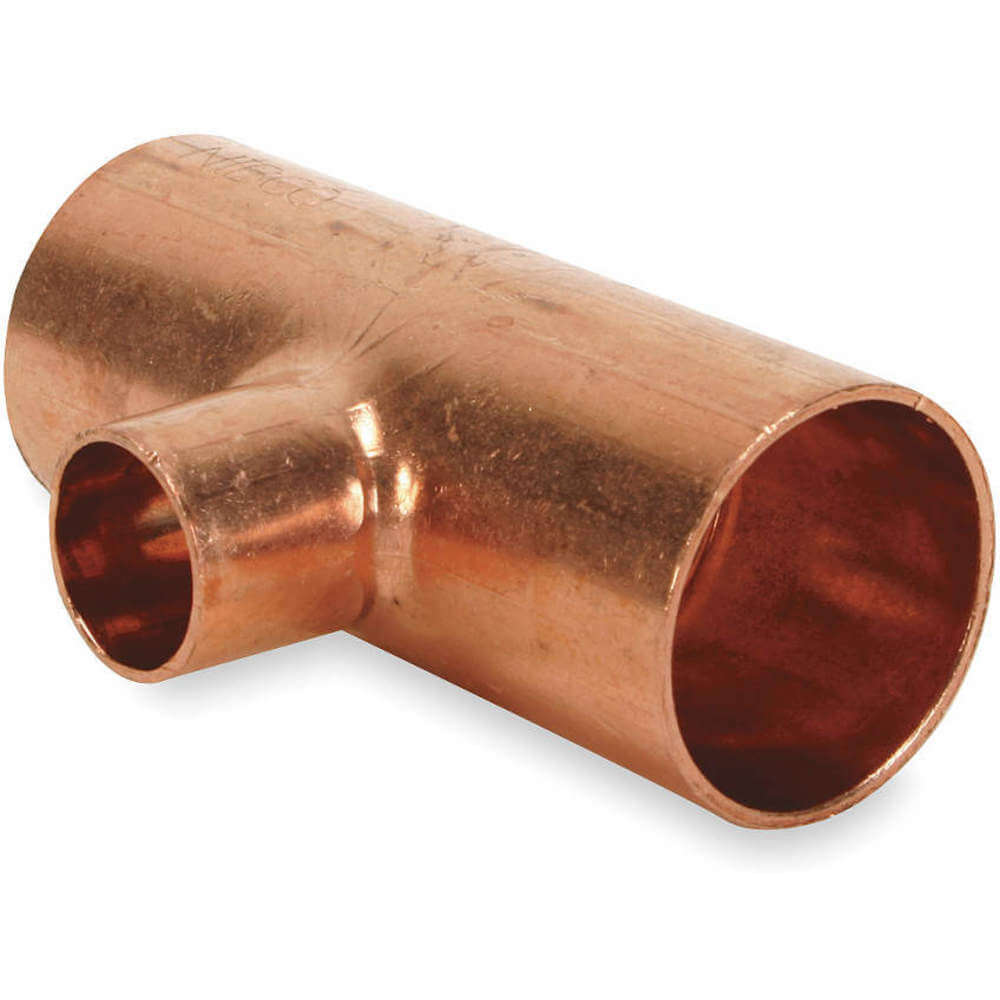

NIBCO 67022 NIBCO 611R Reducing Tee 4 x 4 x 3 Inch

Product Description

The NIBCO 611R Reducing Tee, MPN 67022, is a copper fitting designed for connecting three copper tubes of different sizes. This reducing tee features cup connections on all sides, two for four-inch tubes and one for a three-inch tube. It is crafted from wrought copper, making it suitable for potable water applications.

• Constructed from durable wrought copper.
• Designed for connecting varying copper tube sizes.
• Suitable for high-pressure and temperature conditions.

Product Highlights

This tee is ideal for plumbing systems requiring robust and reliable fittings. With a maximum pressure of 293 psi and an operational temperature range from minus twenty degrees Fahrenheit to four hundred degrees Fahrenheit, it is designed for heavy-duty use.

Product Information

Standard Information

• Item: Reducing Tee
• Application: Potable Water

Technical Specifications

• Basic Pipe Fitting Material: Metal
• Body Material: Wrought Copper
• Fitting Side A Connection Type: Cup
• Fitting Side A Copper Tube Size: 4 inches
• Fitting Side B Connection Type: Cup
• Fitting Side B Copper Tube Size: 4 inches
• Fitting Side C Connection Type: Cup
• Fitting Side C Copper Tube Size: 3 inches
• Max. Pressure: 293 psi
• Outside Diameter: 4 1/8 x 4 1/8 x 3 1/8 inches
• Temperature Range: -20 degrees Fahrenheit to +400 degrees Fahrenheit
• Resistance Properties: Dezincification Resistant
• Standards: ASME B16.22, ASTM B75 ALLOY C12200, MSS SP-104, MSS SP-109, NFPA 99, NSF/ANSI 372, NSF/ANSI 61, UL 207
