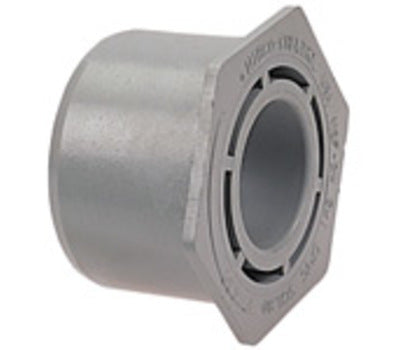

NIBCO 51181837-338CB11550 Chemtrol 3 in. Spigot x 2 in. Socket CPVC Bushing

Product Description

The NIBCO 51181837-338CB11550 Chemtrol three inch spigot by two inch socket CPVC bushing is designed for a reliable and efficient connection in plumbing systems. This bushing features a male spigot end and a female socket connection. It is lightweight and easy to install, making it suitable for various applications.

• Design stress rating of 2000 PSI at seventy-three degrees Fahrenheit
• Maximum service temperature of two hundred ten degrees Fahrenheit
• Complies with ASTM F439 and NSF/ANSI Standard 14

Product Highlights

The Chemtrol CPVC fittings are designed for leak-free connections using solvent cementing.

Product Information

Standard Information

• Brand: NIBCO
• MPN: 51181837-338CB11550

Technical Specifications

• Color: Light Gray
• Weight: 0.681 lb.
• Material: CPVC
• Application: Chemical Processing, Industrial Plating, Chilled Water Distribution, Deionized Water Lines, Chemical Drainage, Waste Water Treatment Systems
• Product Type: Reducing
• Selling Size: 3 x 2 inches
• Catalog Number: 5118 1837-338 CB11550
• Connection Size: 3 inches
• Connection Type: SPG x S
• Schedule/Class: Schedule 80
• Specifications Met: ASTM F439, ANSI/NSF 14, ANSI/NSF 61, Annex G
• Operating Pressure Rating: 2000 PSI
• Maximum Temperature Rating: 210 degrees Fahrenheit
• Minimum Temperature Rating: 73 degrees Fahrenheit
