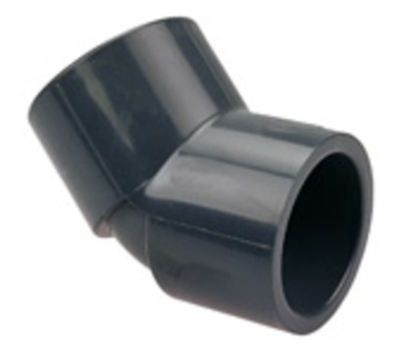

Nibco 4506 Chemtrol 1-1/2 in Socket x Socket PVC 45-Degree Elbow Dark Gray

Product Description

NIBCO's 4506 Chemtrol 1-1/2 inch Socket x Socket PVC 45-Degree Elbow in dark gray is designed for various industrial applications, including chemical processing, chilled water distribution, and wastewater treatment systems.

• Connects PVC piping with female socket connections.
• Smooth transition for a 45-degree direction change.
• Constructed from durable Schedule 80 PVC material.

Product Highlights

This NIBCO Chemtrol elbow is ideal for reliable, leak-free connections in demanding environments. It is lightweight, easy to install, and resistant to rust and corrosion.

Product Information

Standard Information

• Model Number: 4506
• Brand: NIBCO
• Product Name: Chemtrol 1-1/2 in. Socket x Socket PVC 45-Degree Elbow, Dark Gray

Technical Specifications

• Color: Dark Gray
• Weight: 0.312 lb.
• UPC: 039923161963
• Bend Angle: 45 degrees
• Application: Chemical Processing, Industrial Plating, Chilled Water Distribution, Deionized Water Lines, Chemical Drainage, Waste Water Treatment Systems
• Product Type: Straight
• Selling Size: 1-1/2 inches
• Connection Type: S x S
• Schedule/Class: Schedule 80
• Specifications Met: ASTM D2467, ANSI/NSF 14, ANSI/NSF 61 Annex G
• Maximum Temperature Rating: 140 degrees F
• Resistance Properties/Features: Chemical-Resistant
