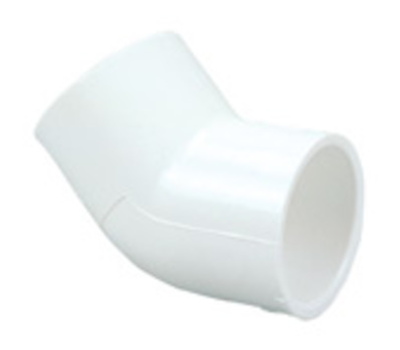

NIBCO 417-040 4 in. Slip x Slip PVC 45-degree Elbow

Product Description

The Nibco 417-040 PVC Schedule 40 45-degree elbow features female socket connections and is used to change the direction of flow. It is suitable for cold water pressure distribution systems including irrigation, pool and spa, potable water, and chilled water applications.

• 140 degrees F maximum service temperature
• Meets ASTM D2466 and ASTM D1784 standards
• UL 94V-0 listed

Product Highlights

The Nibco 417-040 45-degree elbow is known for its lightweight, durability, and cost-effectiveness. It exhibits high corrosion and chemical resistance and will not rust, scale, pit, or corrode. Installation is easy with solvent cementing or threading.

Product Information

Standard Information

• Model Number: 417-040
• Brand: Nibco
• UPC: 039923140388
• Weight: 1.337 lb.
• Material: PVC
• Bend Angle: 45 degrees
• Application: Irrigation, Pool and Spa, Potable Water, Chilled Water Applications

Technical Specifications

• Color: White
• Product Type: Straight
• Selling Size: 4 inches
• Connection Type: S x S
• Schedule/Class: Schedule 40
• Specifications Met: ASTM D2466, ASTM D1784, Cell Class 12454, ANSI/NSF 61, UL 94V-0 Listed
• Maximum Temperature Rating: 140 degrees F
• Resistance Properties/Features: Corrosion-Resistant, Chemical-Resistant
