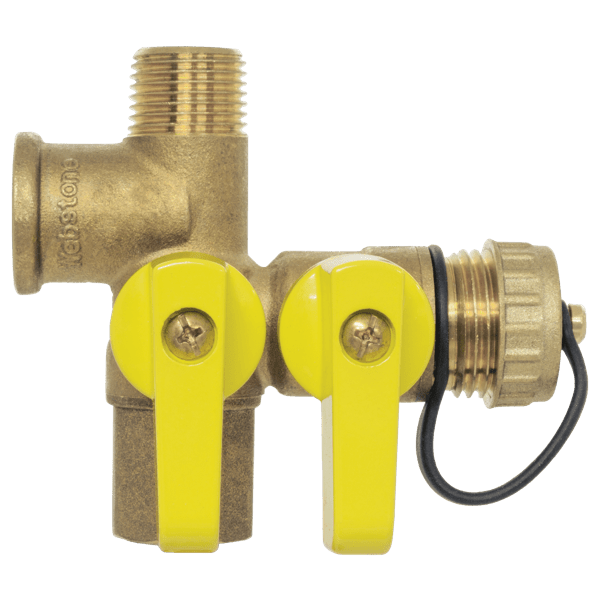

NIBCO 41672 Pro-Pal Expansion Tank Service Valve

Product Description

The NIBCO 41672 Pro-Pal expansion tank service valve is made of brass and features a full port ball valve designed for efficient isolation and draining of an expansion tank. This valve is suitable for closed loop hydronic heating systems.

• Includes a high flow hose drain for easy purging.

• Features adjustable packing nut for maintenance.

• Equipped with male and female pipe thread connections.

Product Highlights

This valve is essential for managing expansion tanks in heating systems.

Product Information

Standard Information

• Material: Brass

• UPC: 18394416727

Technical Specifications

• P1 Size: 1/2 inch

• P1 Connection: Female Pipe Thread

• P2 Size: 1/2 inch

• P2 Connection: Male Pipe Thread

• P3 Size: 1/2 inch

• P3 Connection: Female Pipe Thread

• WOG Pressure Rating: 600 PSIG

• Bore: Full Port

• Purge: Yes

• Cap: Yes

• Length: 1.25 inches

• Width: 3.57 inches

• Height: 3.375 inches

• End-to-end distance: 3.57 inches

• Top-to-inlet-center distance: 2/38 inches

• Weight: 3 pounds
