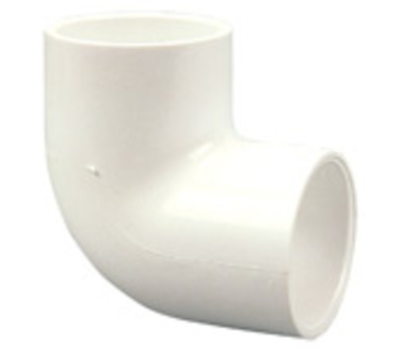

Nibco 406-020 Slip Pvc 90-Degree Elbow 2 Inch

Product Description

The Nibco 406-020 PVC Schedule 40 90-degree elbow features female socket connections and is used to change the direction of flow in piping systems. This elbow is suitable for cold water pressure distribution systems including irrigation, pool, spa, potable water, and chilled water applications.

• Female socket connections
• Used for changing direction of flow
• Cold water pressure distribution

Product Highlights

PVC Schedule 40 is known for its lightweight nature, durability, and cost-effectiveness. The Nibco PVC elbow is easy to install through solvent cementing or threading. It is resistant to corrosion and chemicals, ensuring long-lasting performance without rusting or scaling.

Product Information

Standard Information

• Brand: Nibco
• MPN: 406-020

Technical Specifications

• Maximum Temperature: 140 degrees F
• ASTM Standards: ASTM D2466, ASTM D1784
• NSF/ANSI Standards: NSF/ANSI standard 61
• Flame Rating: UL 94 V-0
• Certification: NSF UP certified
• Material: PVC
• Color: White
• Weight: 0.415 lb
• Bend Angle: 90 degrees
• Application: Cold Water Pressure Distribution Systems, Irrigation, Pool and Spa, Potable Water, Chilled Water
• Selling Size: 2 inches
• Connection Size: 2 inches
• Connection Type: S x S
• Schedule/Class: Schedule 40
• Specifications Met: ASTM D2466, ASTM D1784, Cell Class 12454, NSF U.P. Certified, ANSI/NSF 61, UL 94V-0
• Resistance Properties: Chemical-Resistant, Corrosion-Resistant
