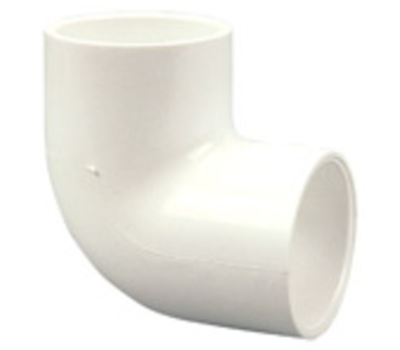

Nibco 406-007 3/4 in. Slip PVC 90-Degree Elbow for Cold Water Pressure Distribution Systems

Product Description

The Nibco 406-007 90-degree PVC elbow changes the direction of flow in cold water systems. This elbow features female socket connections and is commonly used in irrigation, pool, spa, potable water, and chilled water applications.

• 140 degrees F maximum temperature
• ASTM D2466, ASTM D1784 compliance
• NSF/ANSI standard 61 certification

Product Highlights

Lightweight and durable, PVC Schedule 40 fittings are cost-effective and corrosion-resistant. Installation is simple, whether by solvent cementing or threading. This elbow fitting is flame-rated and certified for several industry standards, making it a reliable choice for various systems.

Product Information

Standard Information

• Model Number: 406-007
• Product Name: 3/4 in. Slip PVC 90-Degree Elbow
• Brand: Nibco

Technical Specifications

• UPC: 039923140647
• Color: White
• Weight: 0.075 lb.
• Material: PVC
• Bend Angle: 90 degrees
• Application: Cold Water Pressure Distribution Systems, Irrigation, Pool and Spa, Potable Water, Chilled Water
• Product Type: Straight
• Selling Size: 3/4 in
• Connection Size: 3/4 in
• Connection Type: S x S
• Schedule/Class: Schedule 40
• Specifications Met: ASTM D2466, ASTM D1784, Cell Class 12454, NSF U.P. Certified, ANSI/NSF 61, UL 94V-0
• Maximum Temperature Rating: 140 deg F
• Resistance Properties/Features: Chemical-Resistant, Corrosion-Resistant
