Product Description

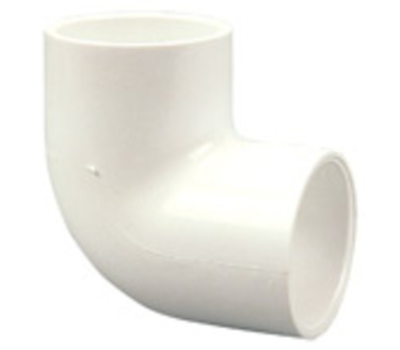

The Nibco 406-005 PVC Schedule 40 90-degree elbow is designed with female socket connections to change the direction of flow. It is ideal for cold water pressure distribution systems, including irrigation, pools, spas, potable water, and chilled water applications.
- Lightweight and durable PVC material
- Corrosion and chemical-resistant
- Easy to install with solvent cementing or threading
Product Highlights
This Nibco PVC 90-degree elbow offers high corrosion resistance and will not rust, scale, pit, or corrode. It features a 90-degree bend angle suitable for multiple applications.
Product Information
Standard Information
-
Brand: Nibco
-
MPN: 406-005
Technical Specifications
-
Maximum Temperature: 140 degrees F
-
Standard: ASTM D2466, ASTM D1784, Cell Class 12454, NSF U.P. Certified, ANSI/NSF 61, UL 94V-0
-
Material: PVC
-
Color: White
-
Bend Angle: 90 degrees
-
Connection Size: 1/2 inches
-
Connection Type: S x S
-
Applications: Cold Water Pressure Distribution Systems, Irrigation, Pool and Spa, Potable Water, Chilled Water
-
Resistance Properties: Chemical-Resistant, Corrosion-Resistant
-
Weight: .048 lb.
-
Schedule/Class: Schedule 40
-
Catalog Number: 406-005
-
Product Type: Straight
-
Specifications Met: ASTM D2466, ASTM D1784, Cell Class 12454, NSF U.P. Certified, ANSI/NSF 61, UL 94V-0
-
UPC: 039923140623
