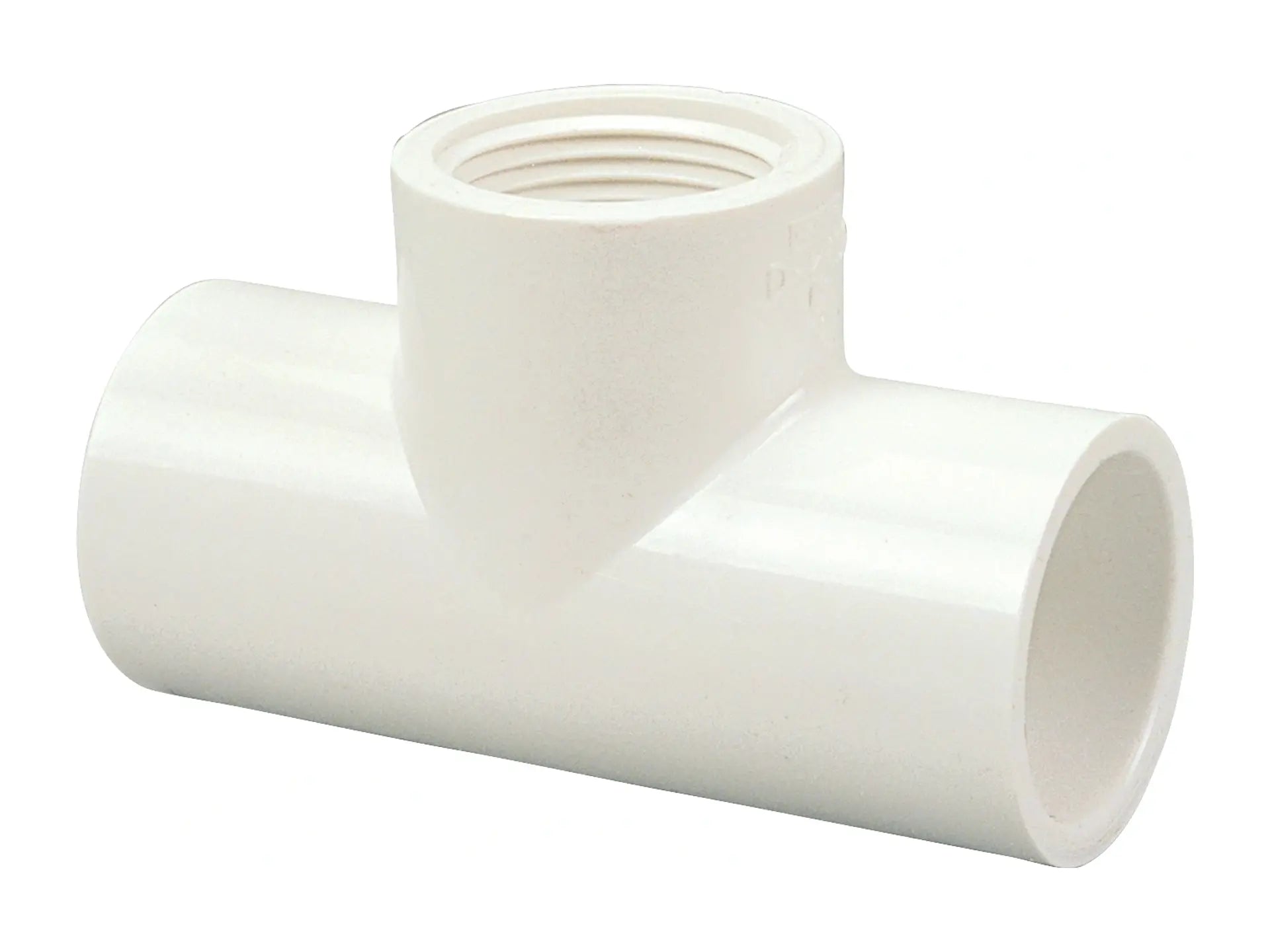

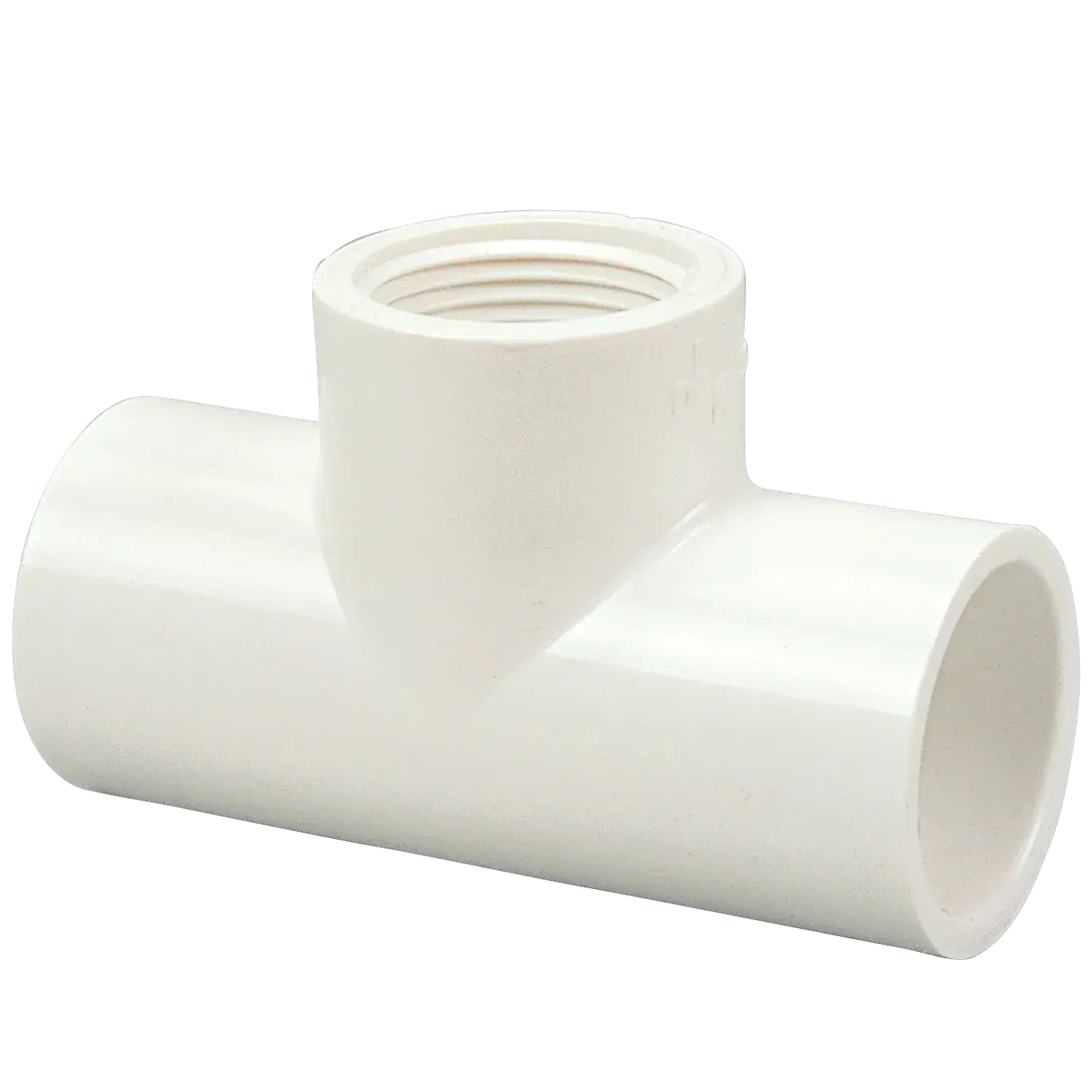

Nibco 402-420 Tee Slip x Slip x FIPT - PVC Schedule 40

Product Description

The NIBCO 402-420 PVC Schedule 40 tee features a female socket x female socket x female NPT threaded connection. It is used to allow for a connection to be made in a continuous pipeline and branch out to a different direction. Maximum service temperature 140°F.

• Female socket x female socket x female NPT threaded connection
• Used to allow for a connection to be made in a continuous pipeline and branch out to a different direction
• Maximum service temperature 140°F

Product Highlights

The NIBCO PVC Schedule 40 tee is easy to install and is joined by solvent cementing or threading. PVC fittings exhibit high corrosion and chemical resistance and will not rust, scale, pit or corrode.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 402-420
• Country of Origin: Poland

Technical Specifications

• Material: PVC Schedule 40
• Connection: Slip x Slip x FIPT
• Maximum service temperature: 140°F
• Standards: ASTM D2466, ASTM D1784, cell Class 12454, NSF/ANSI/CAN-61, UL Listed 94V-0, NSF U.P. Certified
• Manufacturer: NIBCO
• Part Number: L14795YP
• Model: 402-420
• Type of Fitting: Tee
• Type of Tee: Reducing Outlet
• Nominal Pipe Size: 4" x 4" x 2"
• Pipe Schedule: 40
• Length: 6.5"
• Width: 5.89"
• Height: 5.04"
• Potable Water Code: LL Compliant not NSF/ANSI 372
