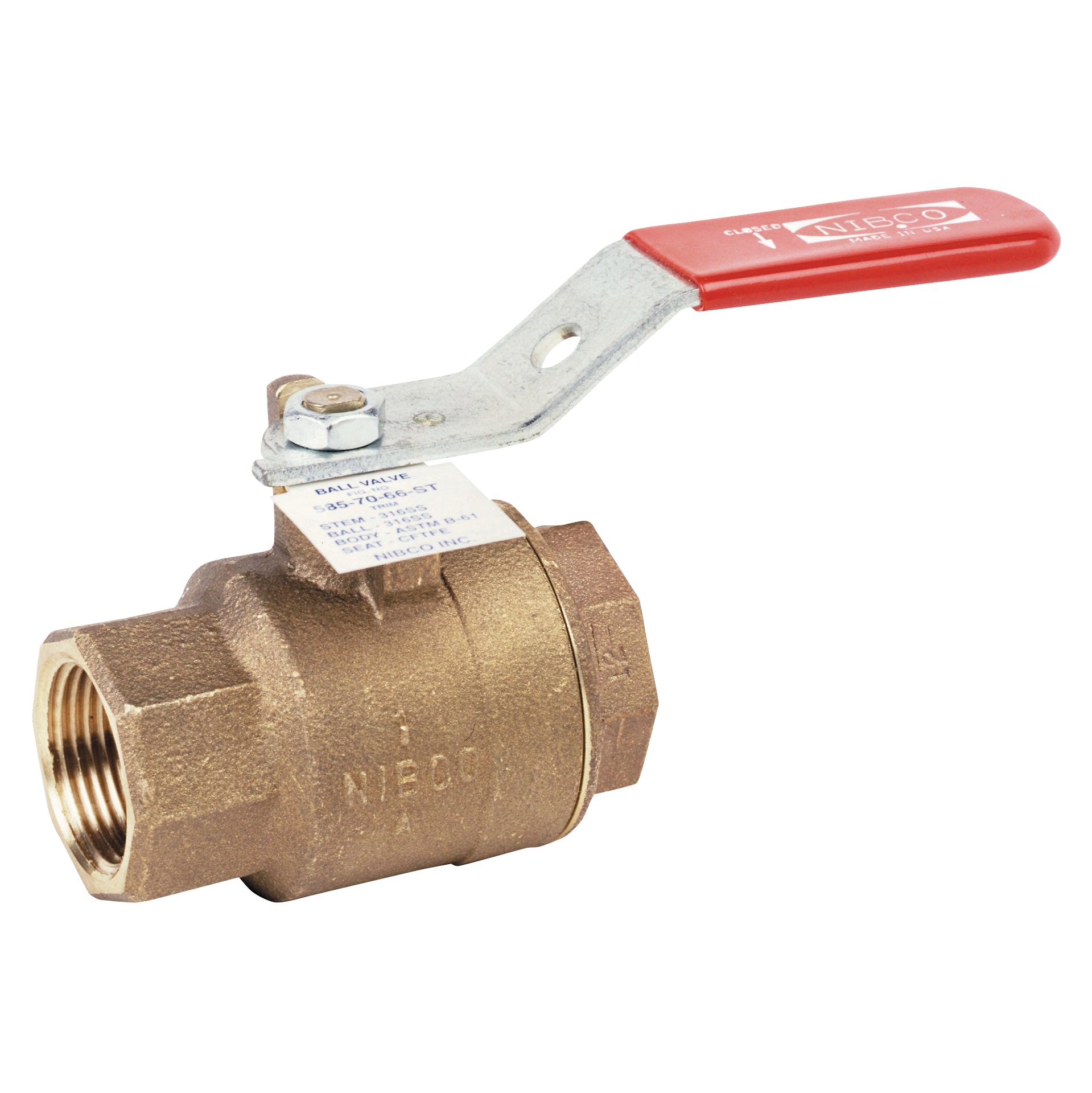

Nibco 39923796295 Two Piece Quarter Turn Ball Valve Full Port (1.5 in/90 degree)

Product Description

The Nibco 39923796295 two-piece bronze ball valve is a full-port, quarter-turn (90 degree) valve for commercial and light industrial process applications, including potential medium-pressure steam service. The valve features a threaded FNPT connection, a stainless steel ball and stem, and a blowout-proof stem. It is rated for 600 psi non-shock cold working pressure and a maximum temperature of 400°F and conforms to MSS SP-110.

• Full-port two-piece bronze body (ASTM B584 Alloy C84400) with 1.5 in pipe size and FNPT threaded connection
• Stainless steel ball and stem, vented ball, blowout-proof stem, and standard lever handle
• Rated 600 psi non-shock cold working pressure, maximum 400°F; conforms to MSS SP-110

Product Highlights

Bronze two-piece full-port ball valve, 1.5 in FNPT, quarter-turn operation, 600 psi/400°F rating, MSS SP-110 compliance

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923796295
• Country of Origin: United States

Technical Specifications

• Brand: Nibco
• Manufacturer Part Number: 39923796295
• Manufacturer Model: T-585-70-66-ST
• Product UID: 585TST-112
• Product Type: Ball Valve
• Body Material: Bronze ASTM B584 Alloy C84400
• Pipe Size: 1.5 in
• Connection Type: FNPT (female NPT)
• Port Type: Full port (conventional)
• Operation: Quarter-turn (90 degree)
• Ball Material: Stainless steel
• Stem Material: Stainless steel
• Stem Type: Blowout-proof stem
• Ball Features: Vented ball
• Handle Type: Standard lever handle
• Pressure Rating: 600 psi (non-shock cold working pressure)
• Maximum Temperature: 400°F
• Standards: MSS SP-110
• Made In: USA
• CA Proposition 65 Warning Required: Yes
• Applications: Commercial and light industrial process; potential medium pressure steam service
• Notes: Not for U.S. drinking water applications after January 3, 2014
