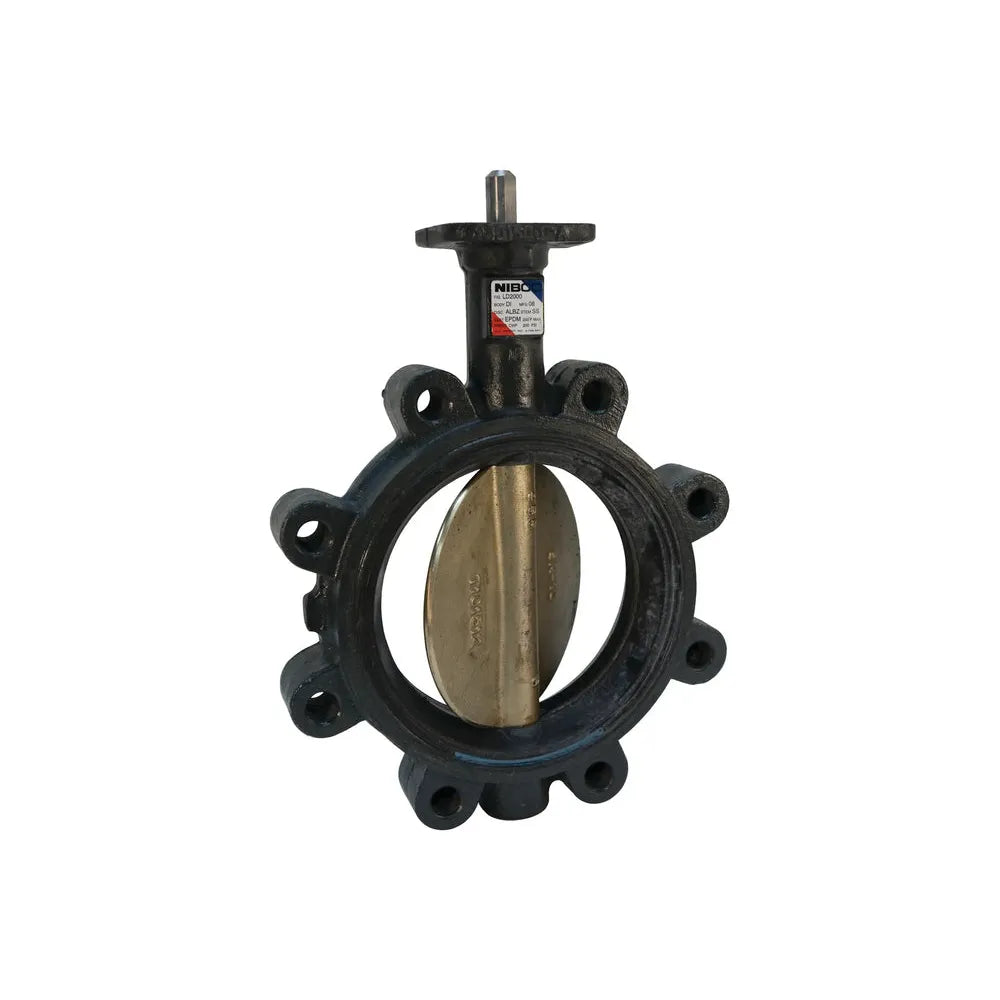

Nibco 39923718457 LD-2000-5 200 psi (2 in Lug) Ductile Iron Butterfly Valve NLG110D

Product Description

The Nibco 39923718457 is a LD-2000-5 lug-style ductile iron butterfly valve (NLG110D) rated for 200 psi and for 225 F continuous / 250 F intermittent service. It uses an EPDM molded-in seat, an aluminum bronze disc, and a stainless steel stem with copper bushings. The valve features a gear-operated handle for quarter-turn operation, meets MSS SP-67 and API 609 standards, and is LL Compliant to NSF/ANSI 372.

• 200 psi pressure rating; 225 F continuous and 250 F intermittent temperature rating; not recommended for steam service.
• Ductile iron lug-style body with EPDM molded-in seat, aluminum bronze disc, and stainless steel stem with copper bushings.
• Gear-operated handle for quarter-turn operation; designed to meet MSS SP-67 and API 609; MSS SP-25 markings; LL Compliant NSF/ANSI 372.

Product Highlights

2 in lug ductile iron butterfly valve with gear operator, EPDM seat, aluminum bronze disc, potable water compliant.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923718457

Technical Specifications

• Manufacturer: NIBCO
• Manufacturer Part Number: 39923718457
• Part Number: NLG110D
• Model: LD-2000-5
• Valve Type: Butterfly valve
• Connection: 2 in lug
• Material: Ductile iron
• Maximum Pressure: 200 psi
• Temperature Rating: 225 F continuous, 250 F intermittent
• Handle Style: Gear-operated
• Stem Material: Stainless steel
• Seat Material: EPDM (molded-in)
• Disc Material: Aluminum bronze
• Operation: Quarter-turn
• Standards: MSS SP-67; API 609
• Markings: MSS SP-25
• Potable Water Compliance: LL Compliant NSF/ANSI 372
• Not Recommended For: Steam service
• Category: Valves and Controls
• Dimensions: 12.72 in x 10.52 in x 6.85 in
