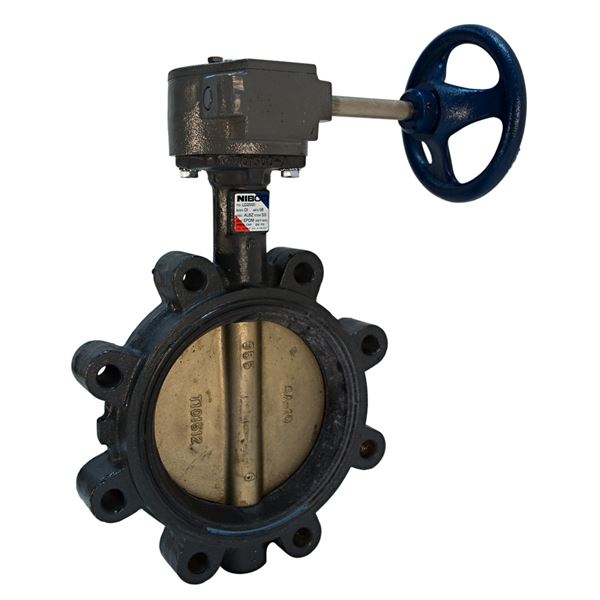

Nibco 39923717757 Ductile iron butterfly valve 200 psi (2 in)

Product Description

The NIBCO 39923717757 is a ductile iron lug butterfly valve (Mfr Model LD-2000) designed for quarter-turn (90 degrees) operation and rated to 200 psi for 2 in piping. It uses an internal stem/disc geometric drive that eliminates pins or bolts in the waterway, includes a molded-in EPDM seat liner with an aluminum bronze disc, and features an extended neck for up to 2 inches of insulation and a stainless steel stem with a lever-lock handle.

• Quarter-turn (90 degrees) lug-style butterfly valve rated to 200 psi for 2 in pipe
• Internal stem/disc geometric drive with molded-in EPDM seat liner and aluminum bronze disc
• Extended neck for up to 2 inches of insulation, stainless steel stem, and lever-lock handle

Product Highlights

Standards: NSF/ANSI/CAN 61 & 372; third-party certified to MSS SP-67; U.S. Coast Guard CATEGORY A; Certified Lead-Free per NSF/ANSI 61-8.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923717757

Technical Specifications

• Brand: NIBCO
• Manufacturer Part Number: 39923717757
• Mfr Model: LD-2000
• Product UID: LD20003-2IN
• Name: LUG BFLY VLV W/ LL HDL N
• Product Type: Butterfly Valve
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Seat Material: EPDM (molded-in seat liner)
• Stem Material: Stainless Steel
• Connection Type: Lug
• Pipe Size: 2 in
• Max Fluid Pressure: 200 psi
• Operation Type: Quarter-turn (90 degrees)
• Extended Neck Insulation: Up to 2 inches
• Valve Handle: Lever-Lock
• Standards: NSF/ANSI/CAN 61 & 372; Third party certified by QAI to meet MSS SP-67; U.S. Coast Guard CATEGORY A; Certified Lead-Free by Truesdail Labs to NSF/ANSI 61-8 Commercial HOT 180F
• CA Proposition 65 Warning Required: Yes
• CA Proposition 65 Warning Statement: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• UPC: 39923717757
