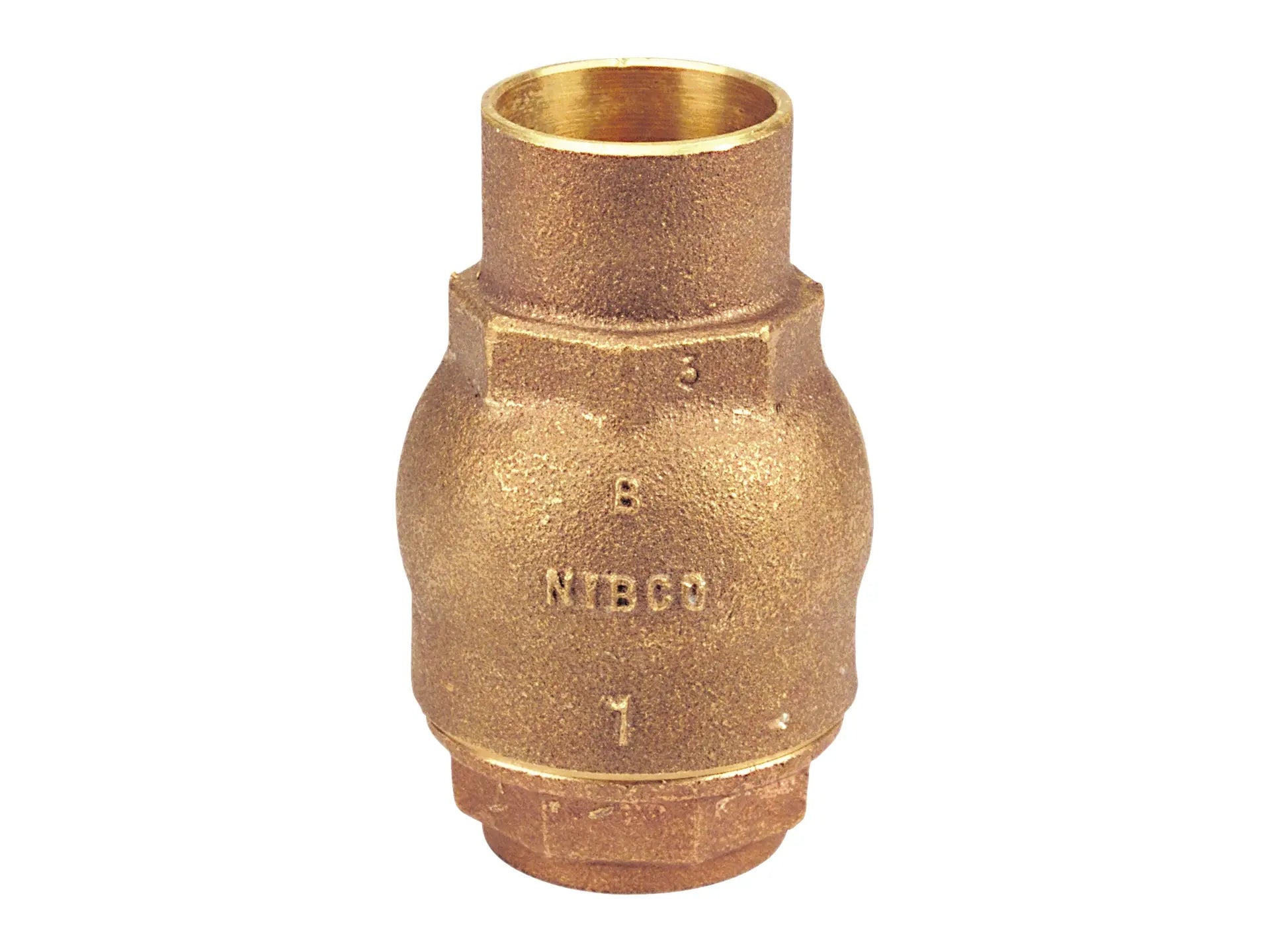

Nibco 39923638571 1 inches Female Solder Cup, In-Line Lift Bronze Check Valve

Product Description

The NIBCO 39923638571 is a 1" female solder cup, in-line lift bronze check valve rated for 125 psi/8.6 bar saturated steam to 353°F/178°C. This check valve features a PTFE resilient seat disc and Class 125 solder end connections. It is spring actuated with a 1/2 psi cracking pressure and conforms to MSS SP-80. Use in U.S. drinking water applications is prohibited after January 3, 2014.

• Rated for 125 psi/8.6 bar saturated steam to 353°F/178°C
• Features a PTFE resilient seat disc
• Spring actuated with a 1/2 psi cracking pressure

Product Highlights

The NIBCO bronze check valve is ideal for preventing backflow in various applications. Its durable construction and reliable performance ensure long-lasting operation.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923638571
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NJ7Q00A
• Model: S-480-Y
• Valve Type: Check Valve
• Valve Pattern: In-Line
• Material: Bronze
• Connection: 1" Female Solder Cup
• Cold Working Pressure: 250 psi
• Maximum Temperature: 353°F
• Disc Style: Resilient
• Disc Material: PTFE
• Cv Coefficient: 30
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Length: 3.31"
• Width: 2"
• Height: 2"
