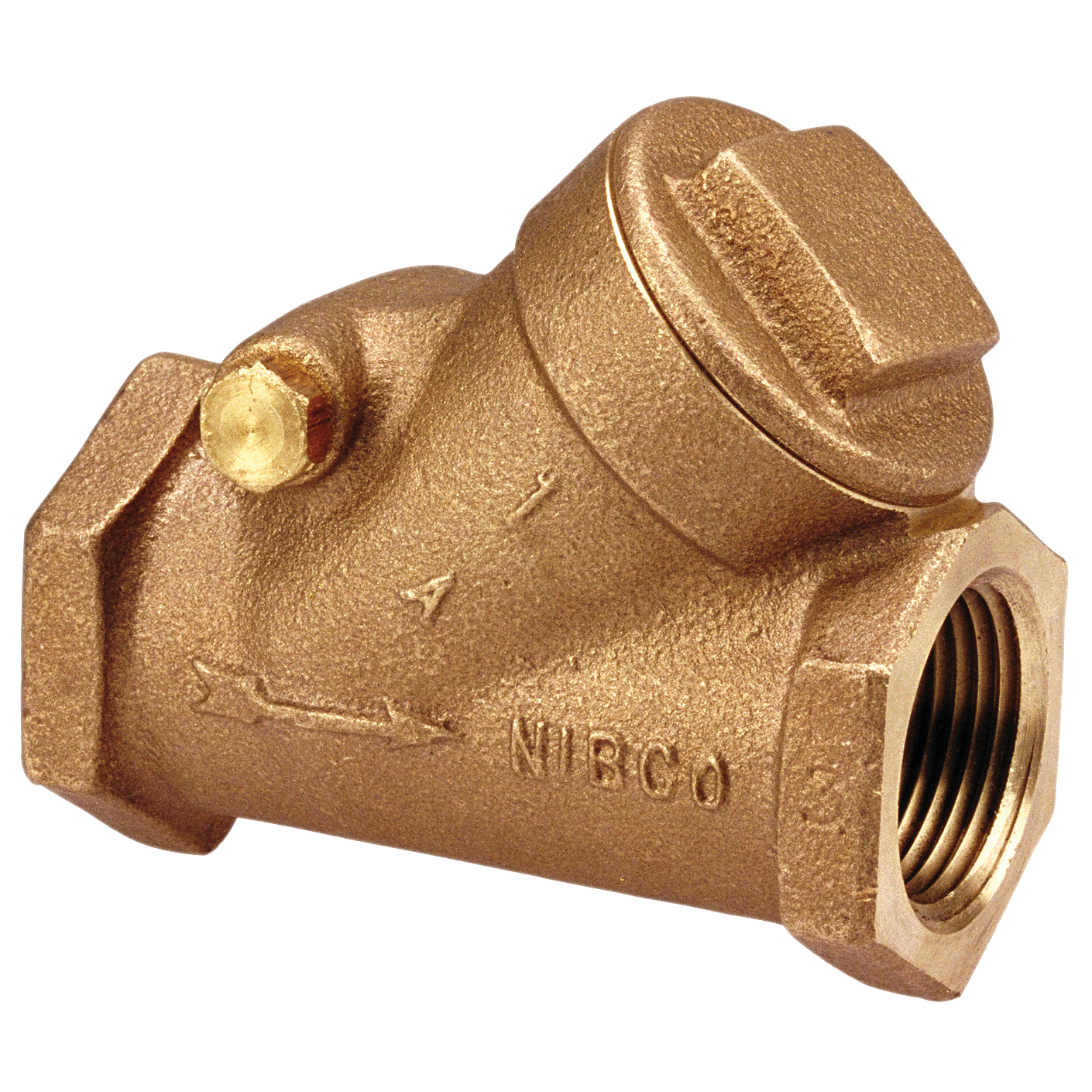

Nibco 39923634795 Y-Pattern Swing Check Valve 1-1/2 in (T-413-Y)

Product Description

NIBCO 39923634795 is a Y-pattern swing check valve with a screw-in bonnet that permits access for repair or replacement of internal parts. The valve uses a renewable PTFE disc and regrindable seat, and is suitable for horizontal installation or vertical installation with flow upward. It is specified for commercial, mechanical, and industrial applications and conforms to MSS SP-80.

• Screw-in bonnet for accessibility to repair or replace internal components
• Renewable PTFE disc and regrindable seat with class 150 FNPT threaded end connections
• Rated to 300 psi non-shock cold working pressure and 150 psi saturated steam to 366°F (185°C)

Product Highlights

Y-pattern swing check valve, renewable PTFE disc, class 150 FNPT, conforms to MSS SP-80

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923634795
• Country of Origin: USA

Technical Specifications

• Brand: NIBCO
• Manufacturer Model: T-413-Y
• Manufacturer Part Number: 39923634795
• Product Type: Check Valve
• Valve Type: Y-pattern swing check
• Nominal Size: 1-1/2 in
• Connection Type: Female NPT (FNPT)
• End Connection Class: Class 150 threaded
• Seat Material: PTFE
• Valve Trim Package: PTFE disc
• Bonnet Design: Screw-in bonnet
• Cold Working Pressure (CWP): 300 psi / 20.7 bar (non-shock)
• Saturated Steam Rating: 150 psi / 10.3 bar to 366°F / 185°C
• Maximum Operating Temperature: 366°F / 185°C
• Conformance: Conforms to MSS SP-80
• Application: Commercial, mechanical, and industrial
• Installation Orientation: Horizontal or vertical with flow moving up
• Made In: USA
• CA Proposition 65 Warning Required: Yes
• Dimensions: 6.88 x 5.13 x 4.13 in
• Weight: 6.25 lb
