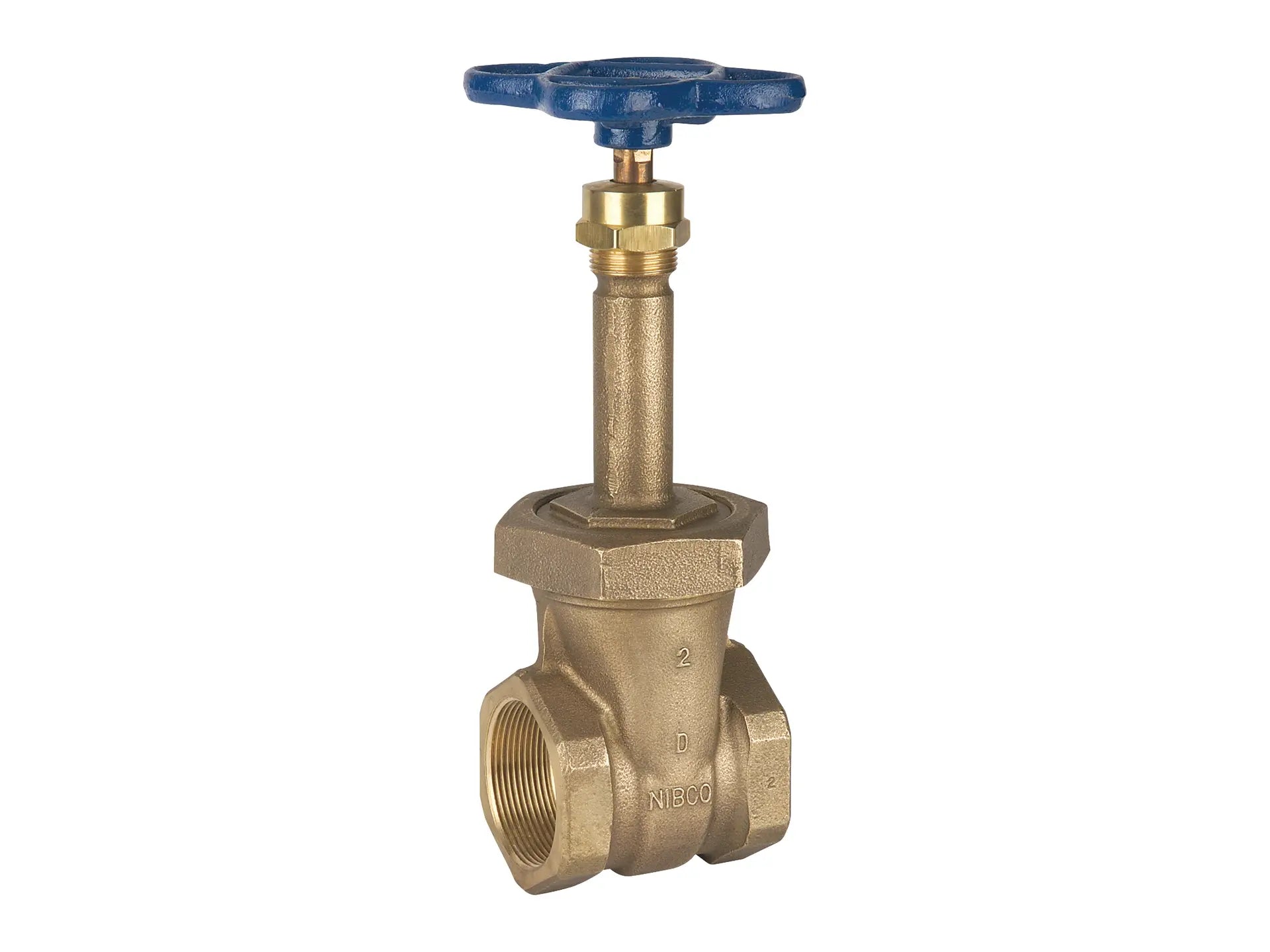

Nibco 39923618313 T-134 1/2 inches FIPT Bronze Gate Valve

Product Description

The Nibco 39923618313 is a 1/2" FIPT bronze gate valve rated for 150 psi/10.3 bar saturated steam to 366°F/185°C. It features a rising stem, solid wedge, union bonnet, and Class 150 threaded end connections. This valve is dezincification resistant and conforms to MSS SP-80. Note that use in U.S. drinking water applications is prohibited after January 3, 2014.

• Rated for 150 psi/10.3 bar saturated steam to 353°F
• Features a rising stem and solid wedge.
• Equipped with Class 150 threaded end connections.

Product Highlights

The Nibco bronze gate valve is suitable for various applications, excluding U.S. drinking water systems after January 3, 2014. It offers a durable construction with a union bonnet.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923618313
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NL1M006
• Model: T-134
• Valve Type: Gate Valve
• Connection: 1/2" Female NPT Thread (FIPT)
• Material: Bronze
• Cold Working Pressure: 300 psi
• Stem Design: Rising
• Bonnet Style: Union
• Maximum Temperature: 366°F
• Seat Material: Bronze
• Handle Style: Standard Handwheel
• Turns Operations: Multi-Turn
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Length: 5.47"
• Width: 2.5"
• Height: 2.5"
