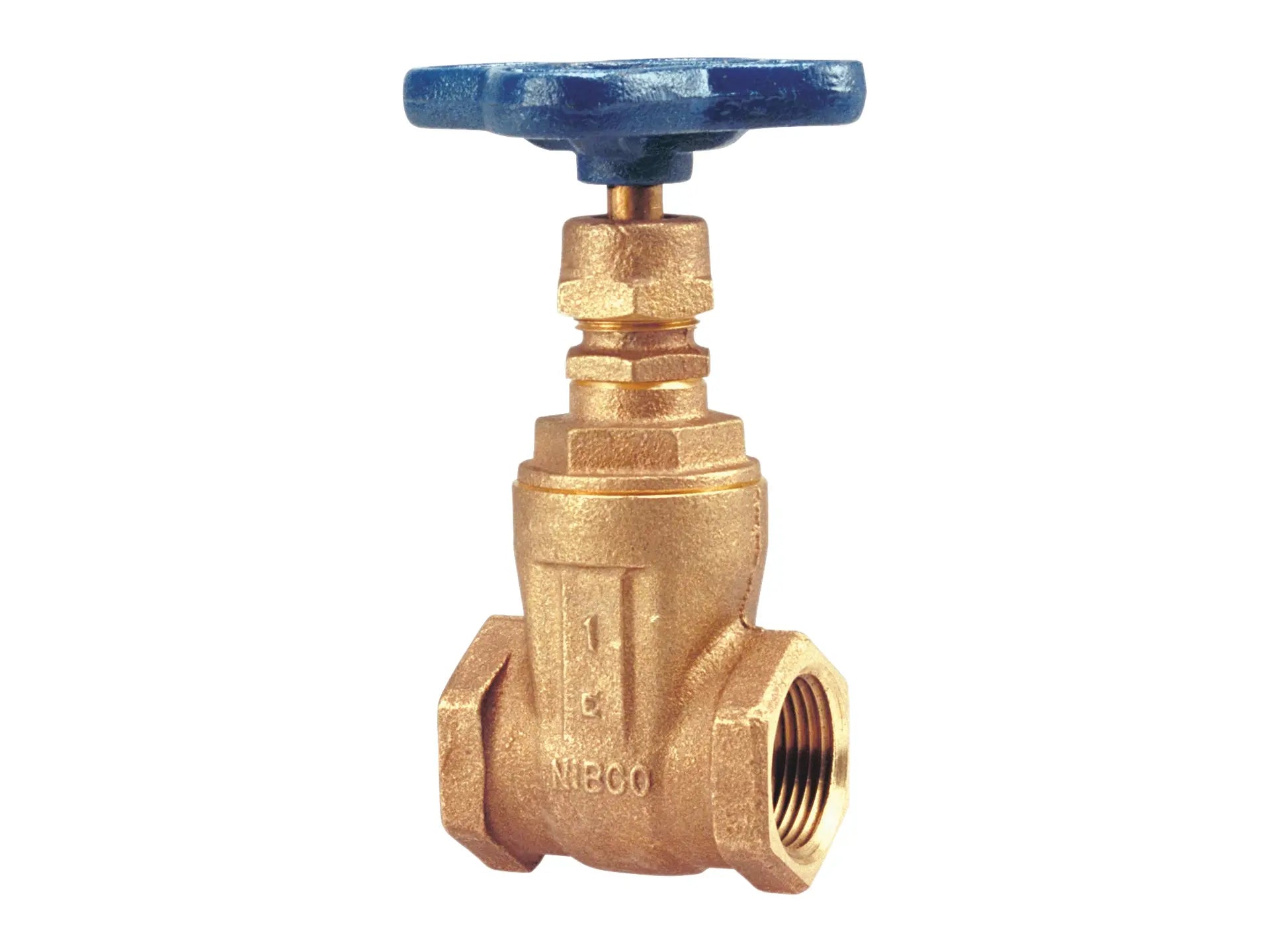

Nibco 39923614148 T-113 Gate Valve 1/2 inches FIPT Bronze

Product Description

The NIBCO 39923614148 is a 1/2" FIPT bronze gate valve rated for 125 psi/8.6 bar saturated steam up to 353°F/178°C. It features a non-rising stem, solid wedge, and screw-in bonnet. The valve has Class 125 threaded end connections and is dezincification resistant. Note that use in U.S. drinking water applications is prohibited after January 3, 2014.

• Rated for 125 psi/8.6 bar saturated steam to 353°F/178°C
• Features a non-rising stem and solid wedge
• Dezincification resistant and conforms to MSS SP-80

Product Highlights

The NIBCO T-113 is a 1/2" bronze gate valve with a non-rising stem, ideal for various applications excluding potable water systems in the U.S.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923614148
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NL0J006
• Model: T-113
• Valve Type: Gate Valve
• Connection: 1/2" Female NPT Thread (FIPT)
• Material: Bronze
• Cold Working Pressure: 200 psi
• Stem Design: Non-Rising
• Bonnet Style: Screw-In
• Maximum Temperature: 353°F
• Seat Material: Bronze
• Handle Style: Standard Handwheel
• Turns Operations: Multi-Turn
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Length: 4.3"
• Width: 2.5"
• Height: 2.5"
