Nibco 39923338662 S-585-66-LF Solder Full Port Stainless Steel Trim (1-1/4 in) NJ83XHB

Product Description

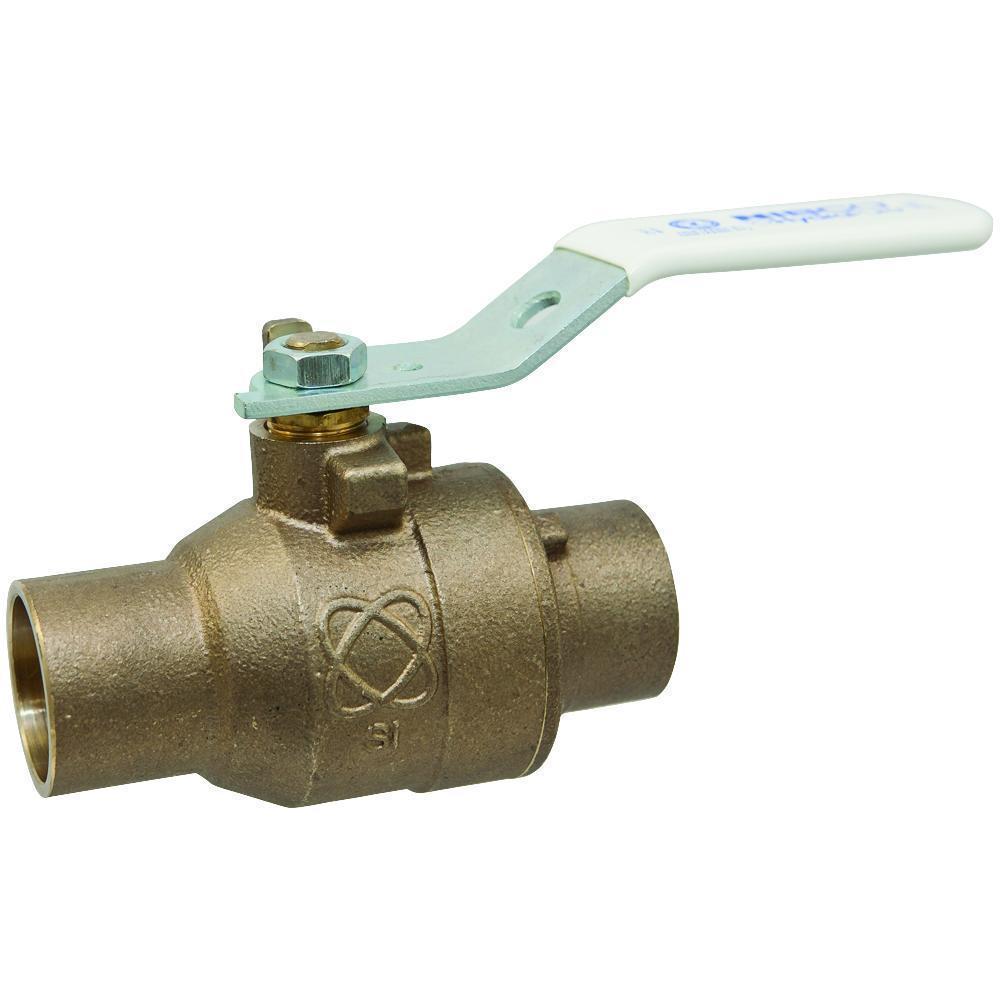

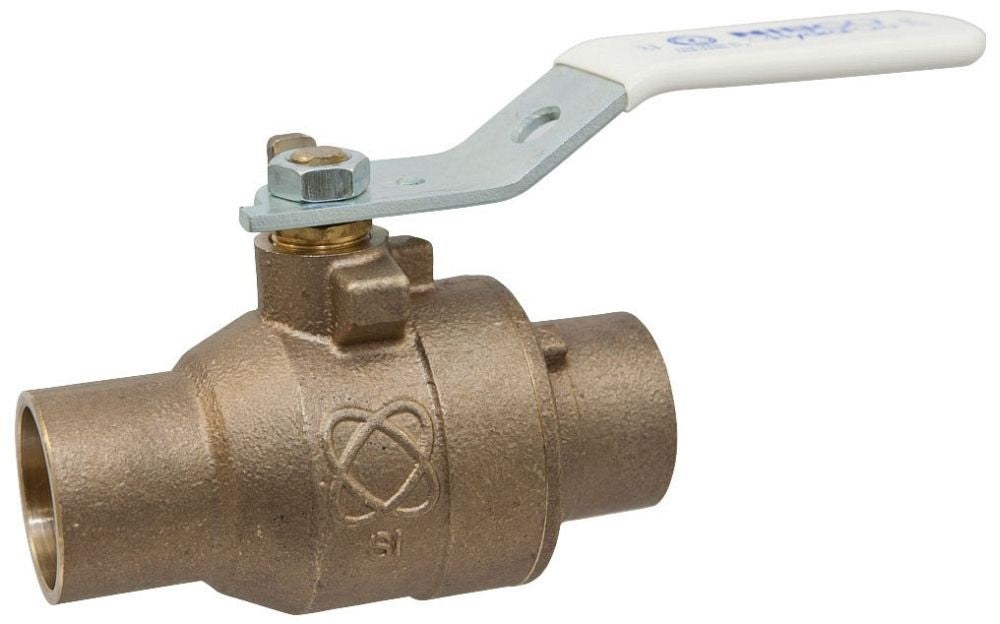

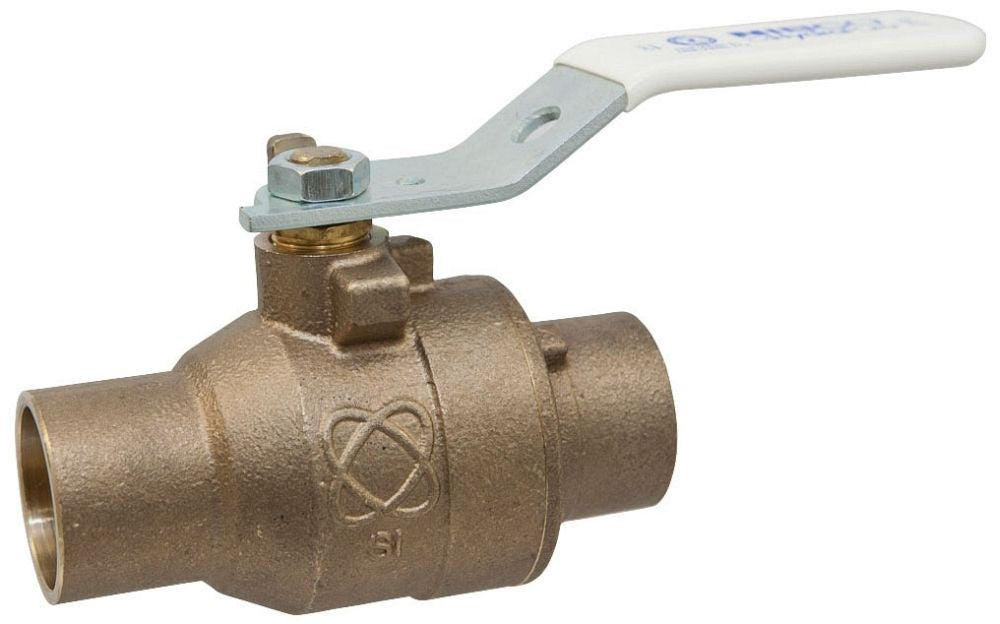

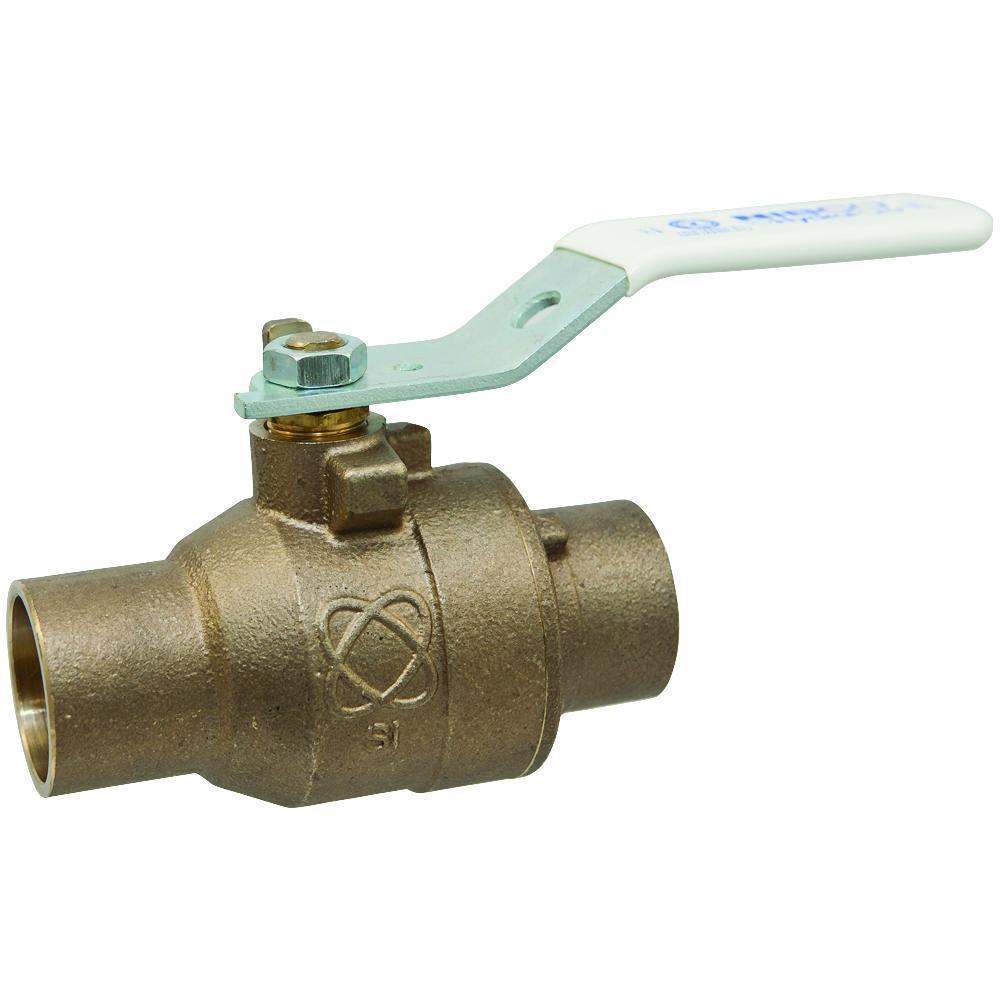

The NIBCO 39923338662 is a S-585-66-LF two-piece, full-port solder-end ball valve with stainless steel trim and a silicon bronze body. It is intended for potable water applications and includes PTFE softgoods, a vented stainless steel ball and stem, and a lever handle for quarter-turn operation. The valve has a nominal 1-1/4 in port and is rated to 600 psi (non-shock cold working pressure) and 300 deg F.

• 600 psi non-shock cold working pressure and 300 deg F temperature rating
• Silicon bronze body with stainless steel ball and stem, PTFE softgoods, vented ball and blowout-proof stem
• Full-port solder end connections, nominal 1-1/4 in port, lever handle actuator

Product Highlights

Full-port lead-free bronze ball valve for potable water; 1-1/4 in port.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923338662
• Country of Origin: US

Technical Specifications

• Application: For use in applications that deliver water for human consumption including residential and commercial construction
• Valve Type: 2-Piece
• Pressure Rating: 600 psi (non-shock cold working pressure)
• Temperature Rating: 300 deg F
• Alternative Part Number: NJB83XHB | S58566LF114
• Nominal Size: 1-1/4 in
• End Style: Solder
• Certifications: ASTM B584 Alloy C87600 Body; ASTM A276 Stem/Ball; cUPC IGC-157; IAPMO IGC-157; Low Lead Compliant; MSS SP-110; NSF/ANSI/CAN-61; NSF/ANSI/CAN-372; IAPMO/ANSI Z1157; PROP65
• Manufacturer: NIBCO Inc.
• Manufacturer Part Number: 39923338662
• Original Manufacturer Part Number: NJ83XHB
• Series: S-585-66-LF
• Actuator Type: Lever Handle
• Ball Material: Stainless Steel
• Body Material: Silicon Bronze
• Port Type: Full
• Softgoods Material: PTFE
• Top to Inlet Center: 3.1 in
• Trim Material: Stainless Steel Stem
