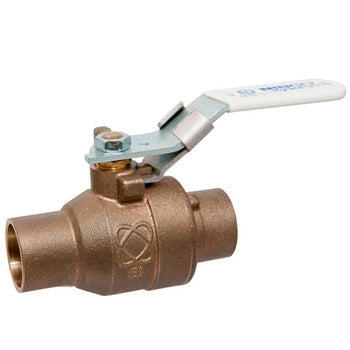

Nibco 39923338655 S-585-66-LF Two-Piece Bronze Ball Valve 1 in (Replacement NBS58566LF-1)

Product Description

The Nibco 39923338655 S-585-66-LF is a 1 in two-piece lead-free bronze ball valve with a stainless steel ball and stem designed for potable water service. It provides bubble-tight shutoff at 600 psi and a full port 1 in orifice with reinforced PTFE seat rings and a vented ball. The valve features solder end connections, dezincification resistance, and meets MSS SP-110, IAPMO IGC-157, NSF/ANSI-61 Section 8 (Commercial Hot 180 deg F) and NSF/ANSI-372.

• Lead-free silicon bronze body with stainless steel ball and stem; reinforced PTFE seat rings
• Full port 1 in orifice; bubble-tight shutoff at 600 psi; max temperature 300 deg F
• Solder end connections, vented ball, blowout-proof stem; meets MSS SP-110, IAPMO IGC-157, NSF/ANSI-61 Section 8, NSF/ANSI-372

Product Highlights

Lead-free 1 in full port bronze ball valve, 600 psi pressure rating, 300 deg F max temperature, solder ends, stainless steel trim

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923338655
• Country of Origin: United States

Technical Specifications

• Manufacturer: NIBCO Inc.
• Manufacturer Part Number: 39923338655
• Model/Series: S-585-66-LF
• Alternate Manufacturer Part Number: NBS58566LF-1
• Body Material: Silicon Bronze
• Ball Material: Stainless Steel
• Trim Material: Stainless Steel Stem
• Softgoods Material: PTFE
• Nominal Size: 1 in
• Orifice Size: 1 in
• Port Type: Full
• Full Port: Yes
• End Style: Solder
• Actuator Type: Lever Handle
• Type: 2-Piece
• Pressure Rating: 600 psi (non-shock cold working pressure)
• Max Temperature Rating: 300 deg F
• Vented Ball: Yes
• Blowout-proof Stem: Yes
• Solder End Connections: Yes
• Dezincification Resistant: Yes
• Lead Free: Yes
• Inlet to Outlet Length: 3.99 in
• Top to Inlet Center: 2.48 in
• Standards/Certifications: MSS SP-110; IAPMO IGC-157; NSF/ANSI-61 Section 8 (Commercial Hot 180 deg F, includes Annex F and G); NSF/ANSI-372
