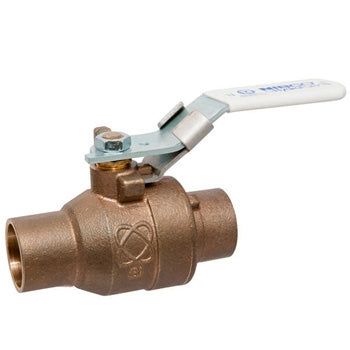

Nibco 39923338648 S-585-66-LF Two-Piece Bronze Ball Valve 3/4 inches Solder

Product Description

The NIBCO 39923338648 ball valve is made of lead-free Silicon Performance BronzeTM alloy and has achieved the stringent NSF/ANSI 61 section 8 (Commercial Hot) and NSF/ANSI 372 listings. The two-piece valve provides bubble-tight shutoff at 600 psi and is dezincification resistant. It features reinforced PTFE seat rings with silicon bronze stem and ball, ideal for use in applications that deliver water for human consumption including residential and commercial construction.

• Lead-free Silicon Performance BronzeTM alloy
• Bubble-tight shutoff at 600 psi
• Stainless steel ball and stem

Product Highlights

Full port, stainless steel ball and stem, and solder end connections. Conforms to MSS SP-110, IAPMO IGC-157, NSF/ANSI-61 Section 8, and NSF/ANSI-372.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923338648

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Stainless Steel
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 3.16 in
• Nominal Size: 3/4 in
• Orifice Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: S-585-66-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 deg F
• Top to Inlet Center: 2.28 in
• Trim Material: Stainless Steel Stem
• Type: 2-Piece
