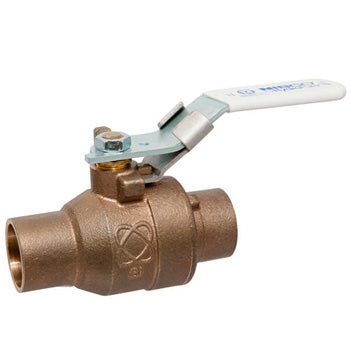

Nibco 39923338631 S-585-66-LF Two-Piece Bronze Ball Valve - Lead-Free, Full Port, Stainless Steel Trim, Solder 1/2 inches

Product Description

The NIBCO 39923338631 ball valve is made of lead-free Silicon Performance Bronze alloy and has achieved the stringent NSF/ANSI 61 section 8 and NSF/ANSI 372 listings. The two-piece valve provides bubble-tight shutoff at 600 psi and is dezincification resistant. It is ideal for use in applications that deliver water for human consumption including residential and commercial construction.

• Features a full port and a Silicon Performance Bronze body.
• Includes a stainless steel ball and stem, and a vented, blowout-proof stem.
• Offers solder end connections and conforms to MSS SP-110, IAPMO IGC-157, NSF/ANSI-61, and NSF/ANSI-372 standards.

Product Highlights

This lead-free bronze ball valve with stainless steel trim ensures safe and reliable water delivery in residential and commercial settings. It provides a bubble-tight shutoff and is dezincification resistant.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923338631

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Stainless Steel
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 2.4 in
• Nominal Size: 1/2 in
• Orifice Size: 1/2 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: S-585-66-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 deg F
• Top to Inlet Center: 1.96 in
• Trim Material: Stainless Steel Stem
• Type: 2-Piece
