Nibco 39923314567 LCS-6822-3 Lug Carbon Steel Butterfly Valve 2-1/2 inches NLL203E

Product Description

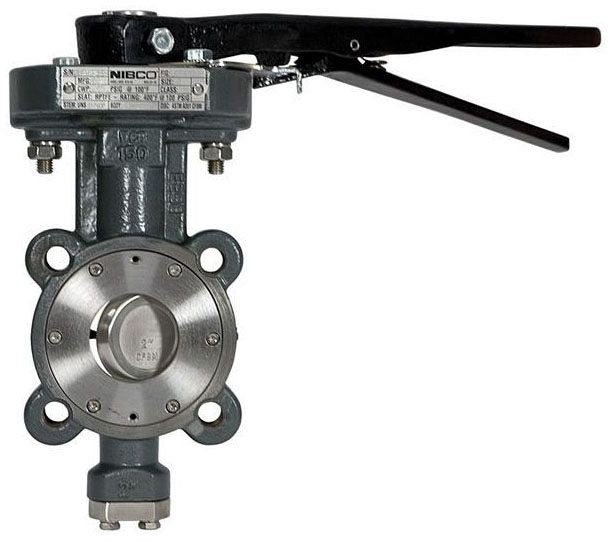

Nibco 39923314567 is a 2-1/2" lug-style carbon steel high-performance butterfly valve, model LCS-6822-3, designed for quarter-turn flow control with direct mount actuation. It incorporates a dual offset design, glass reinforced PTFE seats, stainless steel disc and a blowout-proof stem, plus an integrally cast disc stop and lever-lock handle. The valve is rated to 285 psi and up to 400°F at 100 psi for industrial fluid handling and isolation.

• Pressure rating 285 psi and maximum operating temperature 400°F at 100 psi.
• Lug-style connection, dual offset design, quarter-turn operation with direct mount actuation.
• Glass reinforced PTFE seats, stainless steel disc and stem, blowout-proof stem, integrally cast disc stop.

Product Highlights

285 psi rating; 400°F max at 100 psi; dual offset design; lug-style connection; direct mount actuation.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 39923314567
• Country of Origin: US

Technical Specifications

• Brand: Nibco
• Manufacturer Part Number: 39923314567
• Part Number: NLL203E
• Model: LCS-6822-3
• Valve Type: Butterfly Valve
• Application: High-Performance
• Connection: 2-1/2" Lug
• Material: Carbon Steel
• Maximum Pressure: 285 psi
• Maximum Temperature: 400°F at 100 psi
• Handle Style: Lever-Lock
• Stem Design: Blowout-Proof
• Stem Material: Stainless Steel
• Seat Material: Glass Reinforced PTFE
• Disc Material: Stainless Steel
• Operation: Quarter-Turn
• Potable Water Code: LL Compliant (not NSF/ANSI 372)
• Dimensions: 17.4" x 11.8" x 4.75"
• Country of Origin: US
• Standards: MSS SP-68; MSS SP-25; API 609; ASME/ANSI B16.34; ASME/ANSI B16.5; ISO 5211; EN 12116; ANSI Class 150
