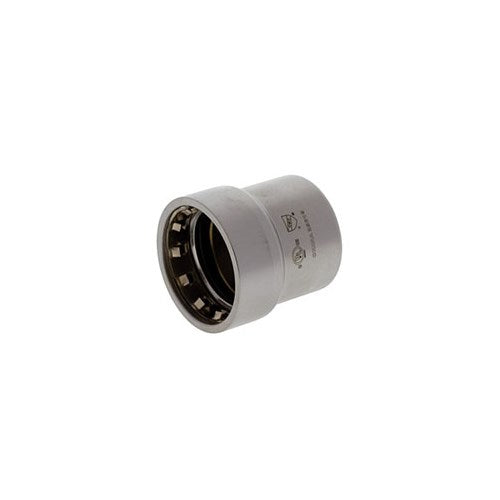

NIBCO 2172850EPC 1-1/2 in. BenchPress Carbon Steel Press Cap

Product Description

The NIBCO BenchPress Carbon Steel Press Cap, MPN 2172850EPC, is a key component for press connections on black iron pipe systems. Made from carbon steel, this cap includes a black EPDM O-ring and a stainless steel gripper ring, providing a reliable solution for sealing applications.

• Designed for press connections on black iron pipe systems.
• Constructed from durable carbon steel.
• Maximum pressure rating of two hundred PSI.

Product Highlights

This cap is suitable for various applications including fire sprinkler systems, chilled water systems, and hydronic heating systems.

Product Information

Standard Information

• Manufacturer Part Number: 2172850EPC
• Brand: NIBCO

Technical Specifications

• Nominal Size: 1-1/2 in.
• Connection Type: Press
• Material: Carbon Steel
• Length: 2.78 in.
• Width: 2.440 in.
• Height: 2.440 in.
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 Degrees F
• Industry Standards: ASME B31, UL Listed, FM Approved, UPC, UMC, IMC, IRC, IAPMO PS-117 Certified, NFPA 13, 13D, and 13R
