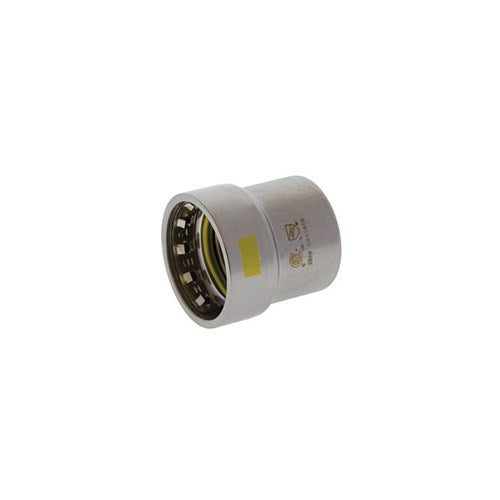

NIBCO 2172800HPC 1-1/4 Inch Carbon Steel Press Cap

Product Description

The NIBCO 2172800HPC is a 1-1/4 inch carbon steel press cap. It is designed to join black iron pipe systems securely. The cap features a yellow HNBR o-ring and a stainless steel gripper ring. This design ensures a tight seal when pressure is applied using a pressing tool. It is suitable for applications in residential and commercial natural gas, compressed air, and fuel systems.

• Press connection type
• Constructed from durable carbon steel
• Suitable for underground installations

Product Highlights

This press cap fits over the end of a pipe to seal it effectively. The construction material and design make it reliable for various gas and air systems.

Product Information

Standard Information

• Material: Carbon Steel
• Nominal Pipe Size: 1 1/4 inches

Technical Specifications

• MPN: 2172800HPC
• Connection Type: Press
• Length: 2.58 inches
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 degrees F
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified, UPC, IMC
