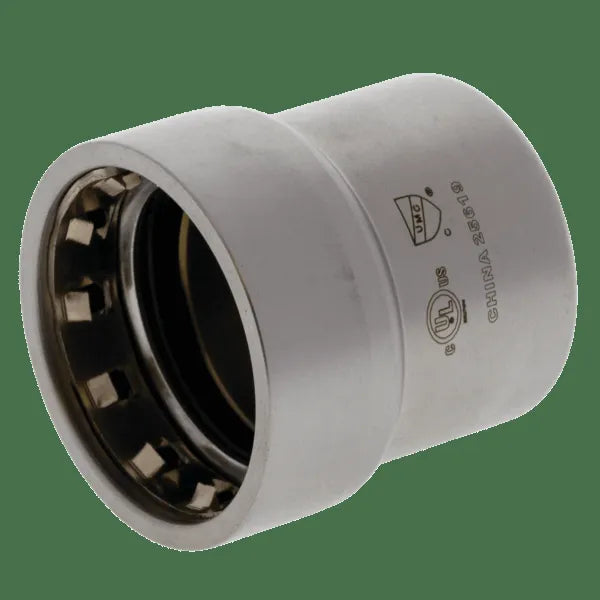

NIBCO 2172750EPC 1-Inch BenchPress Carbon Steel Press Cap

Product Description

The NIBCO 2172750EPC is a one-inch BenchPress carbon steel cap ideal for press connections. This component is made from durable carbon steel and is designed to seal the end of a one-inch pipe effectively.

• Made of carbon steel for reliability.
• Features a black EPDM O-ring for a secure seal.
• Compatible with fire sprinkler, compressed air, chilled water, and hydronic heating applications.

Product Highlights

This cap provides a reliable press connection without the need for threading, ensuring a tight seal using a pressing tool.

Product Information

Standard Information

• Manufacturer: Nibco
• Series: BenchPress

Technical Specifications

• MPN: 2172750EPC
• Item Name: Cap
• Nominal Size: 1 Inch
• Connection Type: Press
• Material: Carbon Steel
• Length: 1.71 Inches
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 Degrees F
• Industry Standards: ASME B31, UL Listed, FM Approved, UPC, UMC, IMC, IRC, IAPMO PS-117 Certified, NFPA 13, 13D and 13R
• UPC / GTIN: 039923432759
