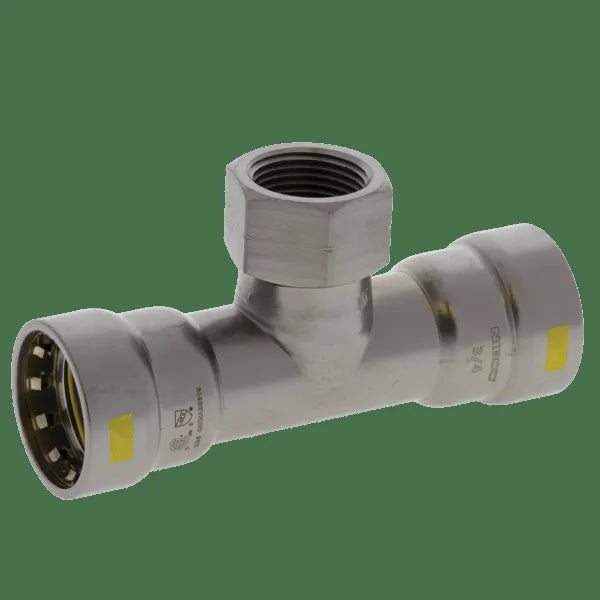

NIBCO 2146050HPC 3/4 Inch Carbon Steel Press X Press X FNPT Tee

Product Description

The NIBCO 2146050HPC is a three-fourth inch carbon steel tee fitting intended for press connections with a female NPT thread. This reliable fitting features a yellow HNBR O-ring and a stainless steel gripper ring, ensuring a secure connection.

• Designed for use in fuel systems and natural gas applications.
• Allows for branching in pipelines with ease.
• Constructed for durability and longevity in demanding environments.

Product Highlights

The NIBCO tee fitting is suitable for various industrial applications, offering efficiency in press connection installations.

Product Information

Standard Information

• Manufacturer: Nibco
• Series: BenchPressG

Technical Specifications

• MPN: 2146050HPC
• Nominal Size: 3/4 inches
• Connection Type: Press X Press X FNPT
• Material: Carbon Steel
• Length: 4.58 inches
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 degrees Fahrenheit
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified, UPC
• Other Physical Dimensions: 1.58 inches center to end outlet, 2.29 inches center to end run
• Type of Fitting: Tee
• Type of Tee: Straight Size
• Nominal Pipe Size: 3/4 x 3/4 x 3/4
• Width: 2.33 inches
• Height: 1.5 inches
• Country of Origin: CN
