NIBCO 2059305HPC BenchPressG Carbon Steel 90 Degree Elbow Fitting

Product Description

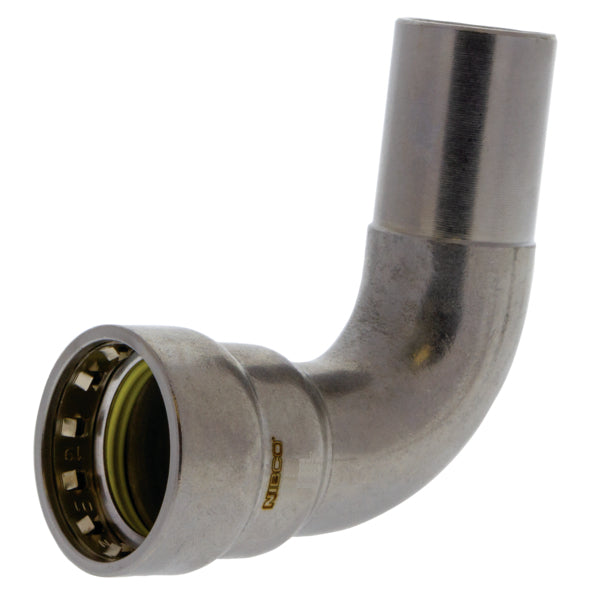

The NIBCO BenchPressG 2059305HPC is a carbon steel elbow fitting designed for efficient pipe connections. This fitting provides a 90-degree bend to enable a change in pipeline direction. It features a yellow HNBR O-ring and a stainless steel gripper ring for secure connections. The fitting allows for press connection on one end and a standard fitting connection on the other. This product is suitable for various applications including natural gas, compressed air, and fuel systems.

• Fitting bend angle is 90 degrees.
• Constructed from durable carbon steel.
• Designed for both residential and commercial use.

Product Highlights

This fitting is perfect for professionals needing reliable connections in pipeline systems.

Product Information

Standard Information

• Brand: NIBCO
• Model: PCH207-2

Technical Specifications

• MPN: 2059305HPC
• Fitting Type: Elbow
• Nominal Pipe Size: 1-1/2 x 1-1/2 inches
• Fitting Bend Angle: 90 degrees
• Material: Carbon Steel
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 to 250 degrees F
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified, UPC, IMC, NFPA 54, NFPA 58, NFPA 30, NFPA 30A, NFPA 31
• Length: 5.43 inches
• Width: 5.22 inches
• Height: 2.44 inches
• Center To End Dimensions: 4.21 x 4.27 inches
