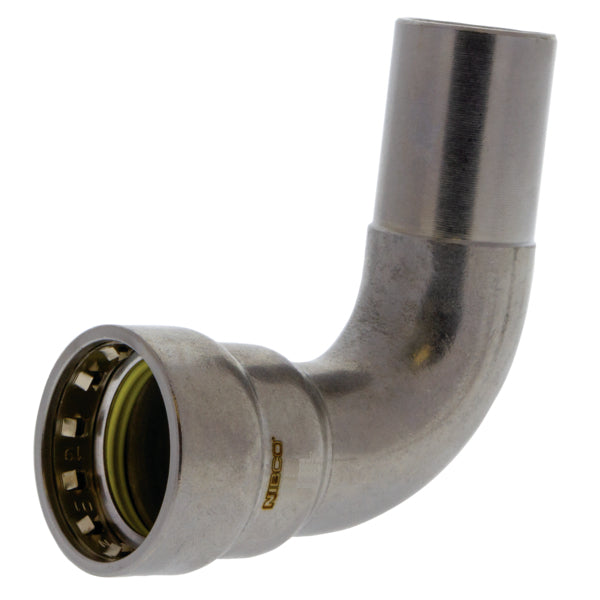

NIBCO 2059255HPC BenchPressG Carbon Steel 90 Degree Elbow Fitting

Product Description

The NIBCO BenchPressG 2059255HPC is a 90 degree elbow fitting made from carbon steel. This fitting changes the pipeline direction by ninety degrees and features a fitting end along with a press connection. It includes a yellow HNBR O-ring and a stainless steel gripper ring for secure sealing. Pressure from a pressing tool sets the O-ring firmly onto the pipe, ensuring a reliable seal. This product is suitable for both residential and commercial applications like natural gas, compressed air, and fuel systems. It can also be installed below ground.

• Constructed from durable carbon steel.
• Includes HNBR O-ring and stainless steel gripper ring.
• Ideal for use in gas, air, and fuel systems.

Product Highlights

This elbow fitting is designed for effective pipeline assembly and change of direction.

Product Information

Standard Information

• Brand: NIBCO
• MPN: 2059255HPC

Technical Specifications

• Model: PCH207-2
• Fitting Type: Elbow
• Nominal Pipe Size: 1-1/4 x 1-1/4
• Fitting Bend Angle: 90 degrees (1/4 Bend)
• Material: Carbon Steel
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 - 250 degrees F
• Industry Standards: ASME B31, CSA ANSI LC4/CSA 6.32, IAPMO Certified, UPC, IMC, NFPA 54, NFPA 58, NFPA 30, NFPA 30A, NFPA 31
• Length: 5.14 inches
• Width: 4.72 inches
• Height: 2.2 inches
• Other Physical Dimension: 4.04 x 3.89 inches Center To End
• Connection Type: Fitting X Press
